- mpnPV18-8RX-MY
- brandname: Panduit Corp
- manufacturername: Panduit Corp

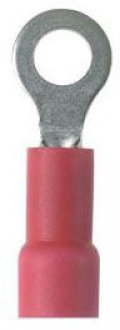

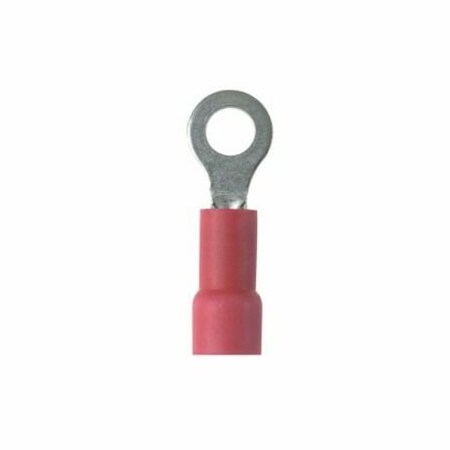

Panduit PV18-8RX-MY Ring Terminal, 22 - 18 AWG, #8 Stud Size, Expanded Insulation for Large Wire OD, Vinyl Insulated
- Brand: Panduit
- PartNumber: PV18-8RX-MY
- Model: PV18-8RX-MY
- Size: 1000-Pack
- PackageQuantity: 1
- Binding: Misc.
- Manufacturer: Panduit
- Label: Panduit
Attributes
| Key | Value |
|---|
| Allowable Gauge Range | 22 - 18 |
| Alternate Parts | PV18-8R |
| Approvals | CSA, UL |
| Category | Connectors, Interconnec. |
| Color | Red |
| Connection Material | Tin-Plated Copper |
| Contact Finish | Tin |
| Contact Material | Copper |
| Country of Origin (subj. | Mexico |
| Family Series | Panduit Terminals, Pan-. |
| Features | Brazed Seam, Serrated T. |
| Gross Weight | 0 lbs |
| Insulated | Insulated |
| Insulation | Insulated |
| Insulation Color | Red |
| Insulation Diameter | 0.170" (4.32mm), 0.170". |
| Insulation Material | Vinyl |
| Insulation Type | Vinyl |
| Item | Ring Terminal |
| Item Number | PV18-8RX-MY |
| Lead Free Status / RoHS. | RoHS Compliant |
| Length - Overall | 0.970"" (24.64mm), 0.97. |
| Manufacturer | Panduit |
| Manufacturer Part Number | PV18-8RX-MY |
| Manufacturer Standard L. | 4 Weeks |
| Material | Vinyl, Copper |
| Material - Insulation | Vinyl |
| Max Temp | 221 ?F |
| Max. Voltage | 600V |
| Mfr | Panduit Corp |
| Mounting Type | Free Hanging (In-Line) |
| Net Weight | 0 lbs |
| Package | Bulk |
| Package Quantity | 1,000 |
| Packaging | Bulk Pack |
| Part Status | Active |
| Plating Material | Tin |
| Product Series | Pan-Term Terminals |
| RoHS Compliant | Yes |
| Seam | Brazed |
| Series | Pan-Term?, Pan-Term |
| Standard Package | 1,000 |
| Stud Size | #8 |
| Stud/Tab Size | 8 Stud |
| Terminal Material | Copper |
| Terminal Type | Ring, Circular |
| Termination | Crimp |
| Thickness | 0.030" (0.76mm), 0.030". |
| Volts | 600 V |
| Width - Outer Edges | 0.310" (7.87mm), 0.310". |
| Wire Gauge | 18-22 AWG |
| Wire Range | 22 to 18 AWG |
| Wire Size | 22-18 AWG |
| Wire Size (AWG) | 18 AWG, 19 AWG, 20 AWG,. |
| Wire Strip Length | 0.313 " |
All Prices
| Img | Seller | Supplier SKU | Min Price | MOQ | In Stock | Lead Time | Brand | Weight | Preferred Tier |
|---|
| Onlinecomponents.com | PV18-8RX-MY | 0.196 | 1 | 2000 | | PANDUIT | | 0.196 @ 1000 |
 | Galco | PV18-8RX-MY-PNDT | 0.31 | 1000 | 1000 | | Panduit | | 0.31 @ 1000 |
| iodParts | PV18-8RX-MY | 0.319 | 1000 | 1000 | | Panduit | | 0.319 @ 1000 |
| Digi-Key | 4568564 | 0.33541 | 1 | 1429 | | Panduit Corp | | 0.33541 @ 1000 |
 | Platt.com | 0616749 | 0.37 | 1 | 1000 | | Panduit | | 0.37 @ 1000 |
| Airline Hydraulics | PANDUIT PV18-8RX-MY | 0.38 | 1 | 1000 | | Panduit Corp | | 0.38 @ 1000 |
 | Newark | 48AC9789 | 0.407 | 1000 | 1000 | | PANDUIT | | 0.407 @ 1000 |
 | Carlton Bates Company | 07498341742 | 250.0 | 1 | 1000 | | PANDUIT | | 250.0 @ 1000 |
 | Zoro | G0789822 | 299.77 | 1 | 1000 | 106 | Panduit | 2.4 | 299.77 @ 1000 |
 | alldataresource.com | 1011119 | 306.69 | 1 | 1000 | | Panduit | | 306.69 @ 1000 |
 | gordonelectricsupply.com | PV18-8RX-MY | 330.0 | 1 | 1000 | 12 | PANDUIT | | 330.0 @ 1000 |
 | turtle.com | PAN PV18-8RX-MY | 370.11 | 1 | 1000 | | Panduit | | 370.11 @ 1000 |
