Ruland MSPX-50-50-F

B0060M0W8C

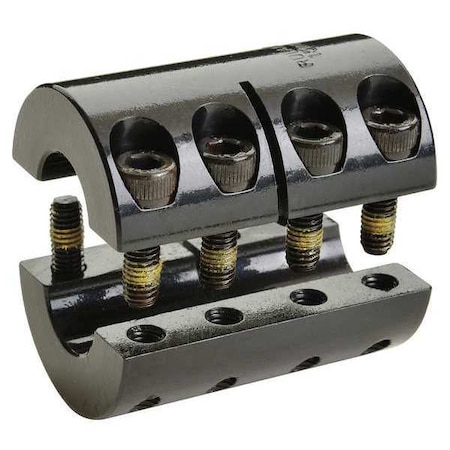

Ruland MSPX-50-50-F Two-Piece Clamping Rigid Coupling, Black Oxide Steel, Metric, 50mm Bore A Diameter, 50mm Bore B Diameter, 85mm OD, 124mm Length

Ruland MSPX-50-50-F Two-Piece Clamping Rigid Coupling, Black Oxide Steel, Metric, 50mm Bore A Diameter, 50mm Bore B Diameter, 85mm OD, 124mm Lengthzoom

Attributes

Key Value
ApplicationFor Applications where .
B1 Max Shaft Penetration62.0 mm
B2 Max Shaft Penetration62.0 mm
Balanced DesignYes
Bore (B1)50 mm
Bore Dia.50 mm
Bore Tolerance+0.050 mm / +0.012 mm
CategoryHardware, Fasteners, Ac.
Clearance Dia.94.2 mm
Clearance Dia. (mm)94.20
Clearance Diameter (C) .94.2 mm
Country of OriginUSA
Country of Origin (subj.United States
Description50MMX50MM STEEL RIGID C.
DesignFour Vibration Resistan.
Digi-Key Part Number3188-MSPX-50-50-F-ND
FinishBlack Oxide
Finish SpecificationHot Process Black Oxide.
Forged Clamp ScrewM10
Full Bearing Support Re.No
Hex Wrench Size8.0 mm
ItemRigid Shaft Coupling
Item - Rigid Shaft Coup.Rigid Shaft Coupling
Length (L)124 mm
Machined FromBar Stock
ManufacturerRuland Manufacturing
Manufacturer Product Nu.MSPX-50-50-F
MaterialBlack Oxide Steel
Material - CouplingsSteel
Material Specification1215 Carbon Steel Bar
Max. Torque13,500 in-lb
Max. Torque (In.-Lbs.)13500
Maximum Speed4,000 RPM
MfrRuland Manufacturing
Moment of Inertia4.045 x 10
Note 1Performance ratings are.
Number of Screws8 ea
Nypatch? Anti-Vibration.Yes
Outer Diameter (OD)85 mm
Outside Dia.85 mm
Overall Length124 mm
PackageBag
Precision Honed Bores?Yes
Product StatusActive
ProvidesExtra Holding Power for.
Rated Torque2250 Nm
Recommended Gap2.38 mm
Recommended Shaft Toler.+0.000 mm / -0.013 mm
Screw FinishBlack Oxide
Screw Location (R)34.1 mm
Screw MaterialAlloy Steel with
Screw SizeM10
Screw Size (mm)M10
Seating Torque77 Nm
Series-
Shaft Locking Type - Co.2 Piece Clamp
Small Bore (B2)50 mm
Specifications3.346" (85.00mm) Outer .
System of MeasurementMetric
Tariff Code8483.60.8000
Temperature-40?F to 350?F (-40?C t.
TypeRigid Coupling, Two Pie.
UNSPC31163009
UPC634529018545
Weight (lbs)7.349800
With Keyway / Without K.Without Keyway
Zero-Backlash?Yes

All Prices

Img Seller Supplier SKU Min Price MOQ In Stock Lead Time Brand Weight Preferred Tier
AmazonTPB0060M0W8C322.681In Stock5Ruland Manufacturing322.68 @ 1
motionindustries.com02337553341.281In StockRuland Manufacturing Co Inc341.28 @ 1
thumbzoomZoroG1360457356.01In Stock10Ruland7.6356.0 @ 1
thumbzoomRulandMSPX-50-50-F504.651In StockRuland7.3498504.65 @ 1
thumbzoomDigi-Key13601865707.1212Ruland Manufacturing707.12 @ 1
thumbzoomRaptor SuppliesAB9ACH955.9599661In StockRULAND MANUFACTURING955.959966 @ 1
