Schneider Electric METSEPM5340

B00NGOWCT4

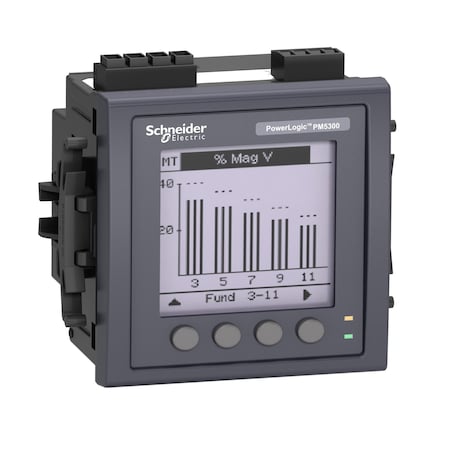

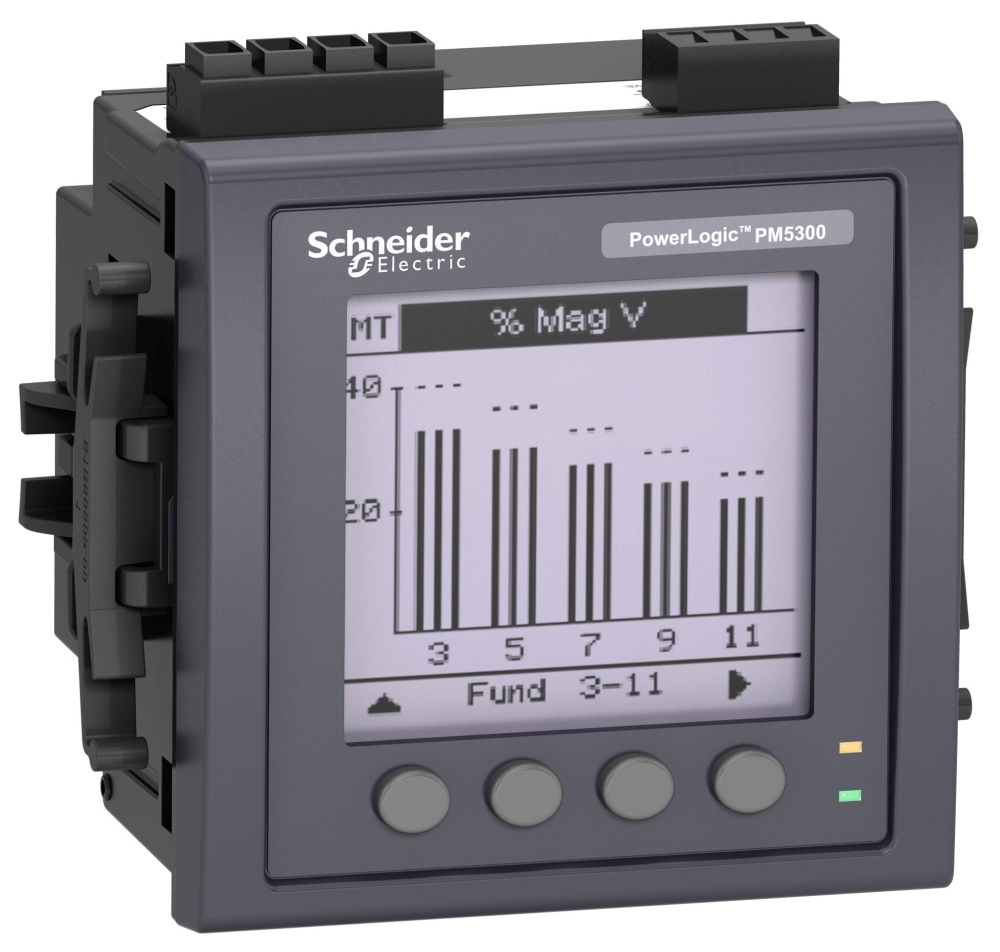

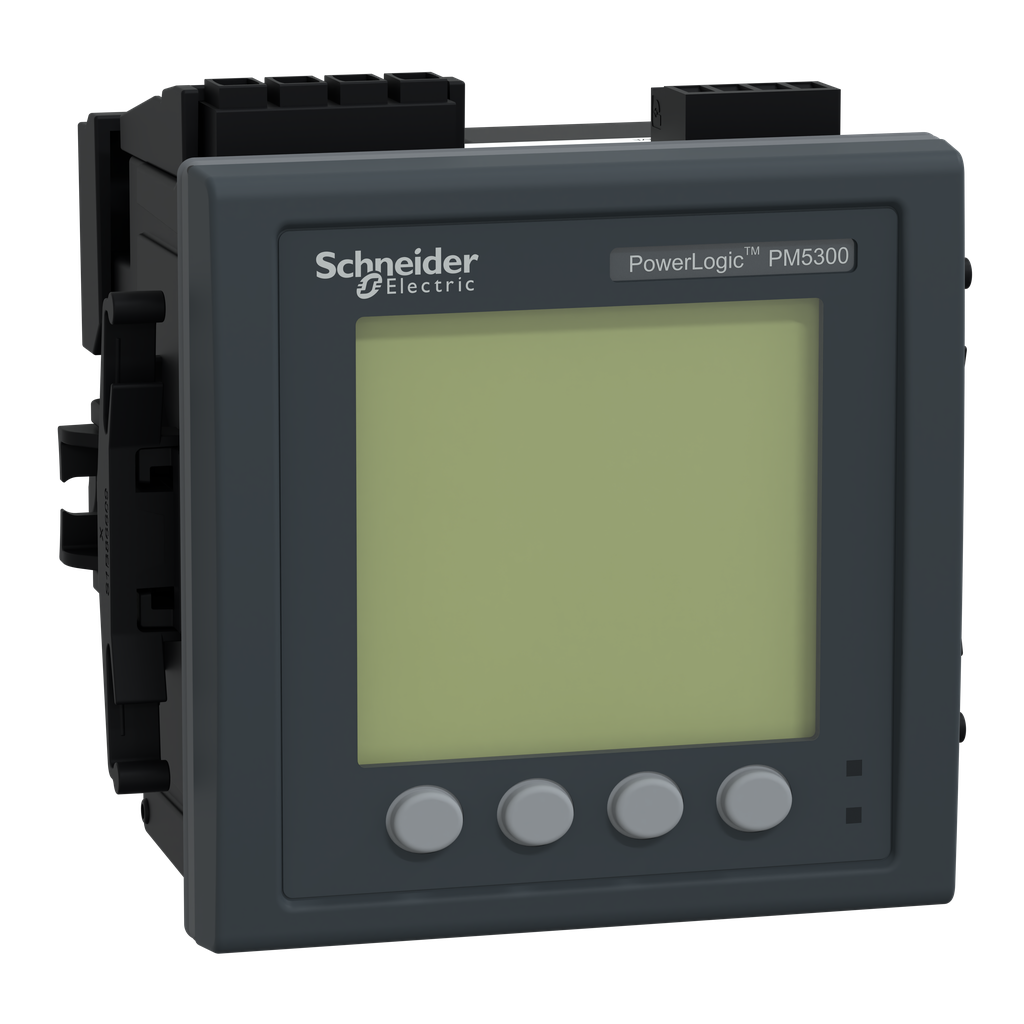

METSEPM5340?-?Power Meter, PowerLogic, PM5000 Series, 125 to 250 Vdc, 100 to 415 VAC, 2 Inputs, 4 Outputs

METSEPM5340?-?Power Meter, PowerLogic, PM5000 Series, 125 to 250 Vdc, 100 to 415 VAC, 2 Inputs, 4 Outputszoom

Attributes

Key Value
[Us] Rated Supply Volta.90...450 V AC 45...65 H.
Accuracy Classclass 0.5S active energ.
Ambient Air Temperature.-25-70 ?C meter || -20-.
Ambient Air Temperature.-40-85 ?C
ApplicationMULTI-TARIFF-POWER MONI.
ApprovalsCE, cULus
BrandSchneider Electric
California Proposition .Cancer and Reproductive.
Catalog NumberMETSEPM5340
China Rohs RegulationX
Circularity ProfileENVEOLI1305025
Communication Port Prot.Modbus TCP/IP 10/100 Mb.
Communication Port Supp.Ethernet
Communication Port TypeEthernet
Componentpower meter
Connections - Terminalsvoltage circuit screw t.
Country of OriginIN - India, India
Data Recordingdata logs || alarm logs.
Depth72 mm
Device Applicationmulti-tariff || power m.
Device Short NamePM5340
DisplayYes
Display Resolution128 x 128 pixels
Display Typemonochrome graphic LCD,.
ECCNEAR99
Electromagnetic Compati.limits for harmonic cur.
EnclosedYes
Environmental DisclosureENVPEP1305025
Eu Rohs DirectiveCompliant
Family SeriesSquare D Panel Meters &.
Frequency Measurement R.45-65 Hz
Frequency Rating60 HZ-50 HZ
Gross Weight0 lbs
Height96 mm
Indicator128 X 128 PIXELS,BACKLI.
Information Displayedtariff 4)
InterfaceModbus TCP/IP 10/100 Mb.
Ip Degree Of Protectiondisplay IP51 IEC 60529 .
IP RatingIP30, IP54
ItemPM5340 Meter,ethernet,u.
Item NumberMETSEPM5340
Item TypeCURRENT-VOLTAGE-FREQUEN.
Line Rated Current5 A || 1 A
Line Voltage100-415 VAC, 125-250 VDC
Made in USANo
ManufacturerSquare D, Schneider Ele.
Manufacturer Part Number472795
Maximum Power Consumpti.11 VA 415 V
Measurement Accuracyactive energy +/- 0.5 %.
Measurement Current5-9000 mA
Measurement Voltage35-760 V AC 45...65 Hz .
Memory Capacity256 kB
Mercury FreeYes
Monitoring Accuracy Cla.Class 0.5S
Monitoring ApprovalIEC 61557-12, EN 50470-.
Monitoring Input Curren.10-9000 mAmp
Monitoring Interface3P + N, Modbus TCP/IP 1.
Monitoring Measuring Ra.64 samples/cycle
Monitoring Primary Rate.1 Amp, 5 Amp
Monitoring Supply Volta.125-250 VDC, 100-415 VAC
MountingFlush
Mounting Modeflush-mounted
Mounting Supportframework
Net Weight15.17 lbs, 430 g
Network Frequency60 Hz || 50 Hz
Number Of Inputs2 digital
Number Of Outputs2 relay || 2 digital
Output2 RELAY-2 DIGITAL
Poles Description3P || 1P + N || 3P + N
Pollution Degree2
Power Quality Analysisup to the 31st harmonic
Product CertificationsCE IEC 61010-1 || cULus.
Product NamePowerLogic PM5000
Product Or Component Ty.power meter
Product SeriesPowerLogic
RangePowerLogic
Reach RegulationReference contains Subs.
Relative Humidity5-95 % 50-50 ?C non-con.
Ride-Through Time100 ms 120 V AC typical.
RoHSYes
Rohs Exemption Informat.Yes
Sampling Rate64 samples/cycle
SeriesPM5000 Series
Size96 MM,96 MM
Special Features64 samples/cycle
StandardCE IEC 61010-1-CULUS UL.
Sub BrandPM5340,POWERLOGIC PM5000
Sustainable Offer StatusGreen Premium product
Type Of Measurementcurrent || voltage || f.
UNSPSC39121106
UPC785901646617
Voltage Rating100...415 V AC 45...65 .
WeeeThe product must be dis.
Width96 mm

All Prices

Img Seller Supplier SKU Min Price MOQ In Stock Lead Time Brand Weight Preferred Tier
industrialrefrigerationparts.comMETSEPM53404.571In StockSchneider Electric4.57 @ 1
thumbzoomNex InstrumentMETSEPM5340812.01In StockSchneider Electric812.0 @ 1
RS Delivers913-9753860.4841In StockSchneider Electric860.484 @ 1
thumbzoomNewark41Y52431477.141In StockSCHNEIDER ELECTRIC1477.14 @ 1
alliedcontrols.comMETSEPM53401505.671In StockSchneider Electric1505.67 @ 1
thumbzoomZoroG40561021524.991In StockSchneider Electric1.151524.99 @ 1
thumbzoomGalcoMETSEPM5340-SQD1628.451In StockSquare D15.171628.45 @ 1
us.rs-online.com715349021701.551In StockSchneider Electric1701.55 @ 1
thumbzoomRadwellMETSEPM53401814.0611SCHNEIDER ELECTRIC SQUARE D1814.06 @ 1
thumbzoomgordonelectricsupply.comMETSEPM53402035.01In Stock10SQUARE D2035.0 @ 1
standardelectricsupply.com23660372036.281In StockSquare D2036.28 @ 1
Graybar256539862111.56961In StockSquare D (Schneider Electric)2111.5696 @ 1
thumbzoommayerelectric.comSQDMETSEPM53402215.631In StockSCHNEIDER ELECTRIC0.9462215.63 @ 1
rspsupply.comSCHNEIDER METSEPM53402341.721In StockSchneider Electric2341.72 @ 1
thumbzoomcrescentelectric.com4699562389.511In StockSchneider Electric2389.51 @ 1
