CAI - SQUARE D 9036GW1

B07J2VQVWH

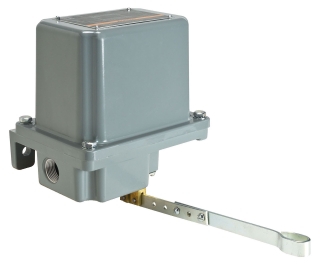

Square D DPST 460VAC Open Liquid Level Switch, Close On Rise, NEMA Rating 4

Square D DPST 460VAC Open Liquid Level Switch, Close On Rise, NEMA Rating 4zoom

Attributes

Key Value
[Ui] Rated Insulation V.575 V UL 508
Ambient Air Temperature.-22-220 ?F
Ambient Air Temperature.-22-220 ?F
Amps10 A
ApprovalsCE, UL
Body CompositionAluminum
Body MaterialSteel
Cable Entry Number2 conduit entries for 3.
California Proposition .Diisononyl phthalate (D.
Circularity ProfileENVEOLI111210EN
ConditionNew
Conduit Size2 3/4 in
Contact FormDPST
Contact Operationcontacts close on liqui.
ContactsDPST-NC
Contacts Type And Compo.2 NC, snap action, DPST.
Controlled Fluidfresh water specific gr.
Country of OriginMX - Mexico
Device Applicationopen tank heavy duty
Device Mountingpedestal
Device Short Name9036G
ECCNEAR99
Electrical Circuit Typepower circuit
Electrical Connectionscrew-clamp terminals 1.
Electrical Durability100 cycles 60 cyc/mn
Enclosure MaterialCast Aluminium
Environmental DisclosureENVPEP111211EN
Estimated Lead Time (in.8
Eu Rohs DirectivePro-active compliance (.
Factory Modificationwithout
Family SeriesSquare D Sensors, 9036 .
Float Dia.7.0 in
Float Length7.0 in
Float MaterialStainless Steel
Float Movementvariable adjustable
Float Positionany
Float Rod Anglevertical
Float Switch Contact Fo.DPST
Float Switch Float Mate.Stainless Steel
Float Travel1 1/4 in
Float TypeVertical Float
Force Down To Trip27 ozf long lever || 29.
Force Up To Trip20 ozf long lever || 22.
Gross Weight0 lbs
GTIN785901489580
Height5.56 in
HP @ 1 Phase - 240V3 hp
HP @ 3 Phase - 240V5 hp
ItemOpen Liquid Level Switch
Item Number9036GW1
Kit Compositionrod and float are to be.
Local Signallingwithout
ManufacturerSquare D
Manufacturer Part Number155890
Max. Voltage575
Maximum Operating Rate60 cyc/mn
Mechanical Durability300 cycles
Mercury FreeYes
Motor Power Kw1.5 kW 2 hp)115 V AC, 1.
MountingOpen Tank, Flange
Nema Degree Of Protecti.NEMA 4 UL 50
NEMA Rating4
Net Weight8.82 lb(US), 0 lbs
Operating Positionvertical position only
Operating Temp. Range-22 Degrees to 220 Deg.
Overall Length7.1 in
Product CertificationsUL listed file E12158 |.
Product Destinationfor open tank or sump
Product Or Component Ty.float switch
Product Series9036
Product Specific Applic.liquid level control
Promotion RestrictionNot eligible for promot.
PSI Rating50
Quantity Per Setset of 1
Range Of ProductSquare D Pumptrol
Reach RegulationReference contains Subs.
Rohs Exemption Informat.Yes
Short-Circuit Protection20 A cartridge fuse gG
StandardsCE || UL 508
Sustainable Offer StatusGreen Premium product
Switch FunctionClose on Rise
Switching Voltage AC120 VAC, 240 VAC
Temperature Range (F)-22-220 ?F
Terminal Block Type4 terminals
Terminals Description I.line-load-load-line
Type Of Packingindividual
UNSPSC39122219
VA Rating460V AC
Voltage575VAC
Warranty18 months
Weight2.000000
Width3.43 in

All Prices

Img Seller Supplier SKU Min Price MOQ In Stock Lead Time Brand Weight Preferred Tier
Radwell9036-GW1462.51In StockSCHNEIDER%20ELECTRIC462.5 @ 1
thumbzoomindustrialrefrigerationparts.com9036GW1499.151In StockSquare D2.0499.15 @ 1
thumbzoomGalco9036GW1-SQD533.841In StockSquare D533.84 @ 1
thumbzoommidwestapplianceparts.com9036GW1-SQ-P543.491In StockSquared543.49 @ 1
thumbzoomsustainablesupply.comC1179255562.661In StockSquare D8.7562.66 @ 1
thumbzoomZoroG0943302581.991In StockSquare D8.7581.99 @ 1
Graybar92047278592.481In StockSquare D (Schneider Electric)592.48 @ 1
thumbzoomgordonelectricsupply.com9036GW1670.01In Stock10SQUARE D670.0 @ 1
thumbzoommayerelectric.comSQD9036GW1774.361In StockSQUARE D8.82774.36 @ 1
thumbzoomNational Supply Network69658052813.31In StockSquare D813.3 @ 1
thumbzoomRaptor SuppliesAF9GNC952.23919051In StockSQUARE D952.2391905 @ 1
