Schneider Electric Square D PTB302G

B009OYAV2K

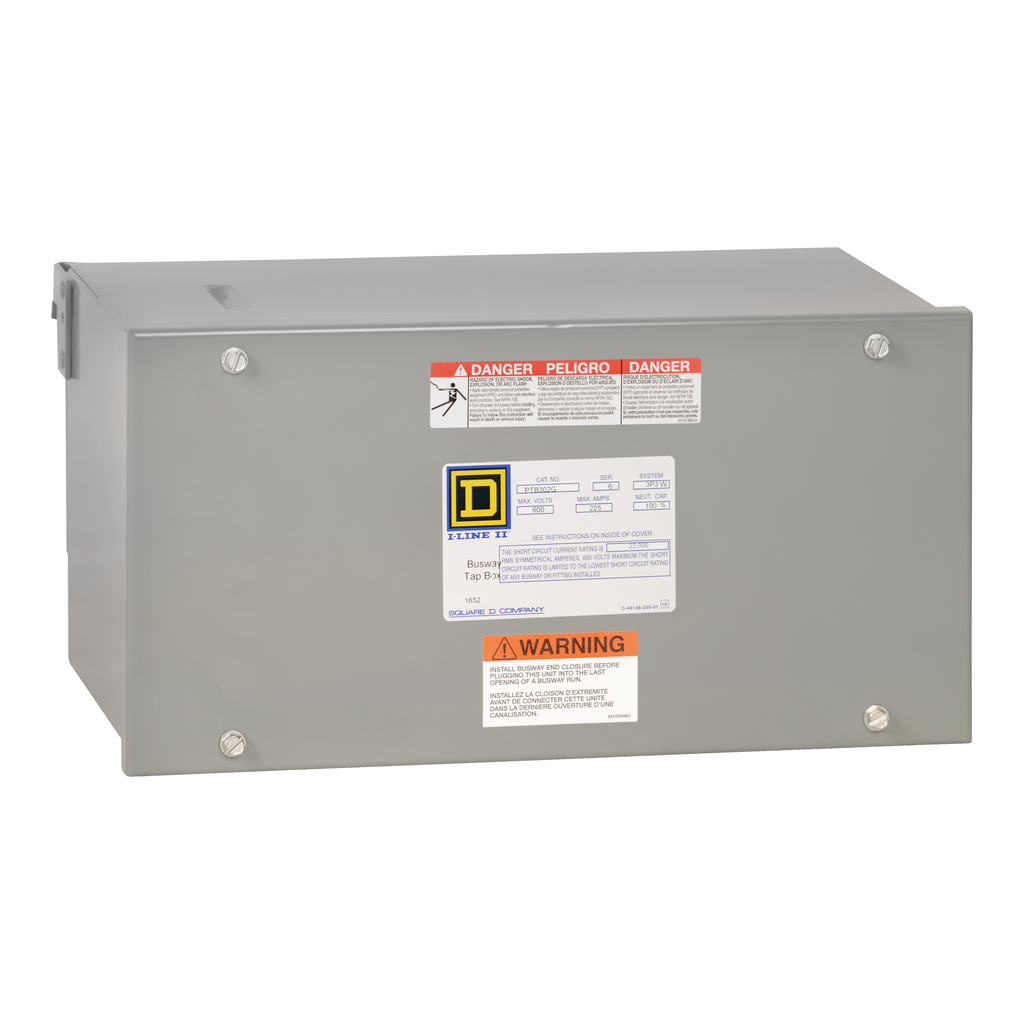

Square D PTB302G 277/480VAC 225 Amp Busyway Plug-in Cable Tap Box

Square D PTB302G 277/480VAC 225 Amp Busyway Plug-in Cable Tap Boxzoom

Attributes

Key Value
[Ue] Rated Operational .277/480 V AC
Amperage225
Amperage Rating225, 225 A
Application225-225 A
ApprovalUL, CSA
Awg GaugeAWG 6...AWG 2/0 1 groun.
Body MaterialCopper
BrandSquare D, Square D by S.
California Proposition .Nickel compounds, which.
Catalog NumberPTB302G
China Rohs RegulationPro-active China RoHS d.
Country of OriginUnited States, US - Uni.
Depth197 mm
Dimensions8.5 in H x 16.38 in W x.
ECCNEAR99
Environmental DisclosureENVPEP1407015EN
Eu Rohs DirectiveCompliant
Gtin785901087380
Height216 mm
Item Typetap box
Line Rated Current225-225 A
Lug Size(1) 6 to 2/0 AWG, (1) 3.
Made in USAYes
ManufacturerSchneider Electric
MaterialCopper
Mercury FreeYes
Mounting ModePlug-In
Mounting typePlug-In
Mounting TypePlug-In
MpnPTB302G
Number Of Wires3
Number of Wires3-wire (integral ground.
Phase3, 3 phase
Product CertificationsUL listed file E22182 |.
Product Or Component Ty.tap box
Pvc FreeYes
Range Of ProductI-Line
Reach Free Of SvhcYes
Reach RegulationFree of Substances of V.
Rohs Exemption Informat.Yes
SeriesPTB
Special Features50 CAPACITY INTEGRAL GR.
StandardUL LISTED FILE E22182-C.
StandardsUL 857, RoHS
Sub BrandI-Line
Suitable For Use WithI-Line? Aluminum/Copper.
Sustainable Offer StatusGreen Premium product
Toxic Heavy Metal FreeYes
Type3-Phase 3-Wire
UNSPSC39131701
UPC785901087380
Voltage277/480VAC
Voltage Rating277/480, 277/480 VAC
Warranty18 months
Warranty DescriptionContractual Warranty:18.
Width416 mm
Wire GaugeAWG 6 to AWG 2/0 1 Grou.
Wiring Configuration3-wire (integral ground.

All Prices

Img Seller Supplier SKU Min Price MOQ In Stock Lead Time Brand Weight Preferred Tier
thumbzoomsuperbreakers.comPTB302G1536.211In StockSquare D1536.21 @ 1
thumbzoomstandardelectricsupply.com23167894078.931In StockSquare D (Schneider Electric)4078.93 @ 1
thumbzoomgordonelectricsupply.comPTB302G4130.01In Stock10SQUARE D4130.0 @ 1
Newark80C32264214.021In StockSQUARE D BY SCHNEIDER ELECTRIC4214.02 @ 1
thumbzoomRadwellPTB302G4350.01In StockSCHNEIDER ELECTRIC SQUARE D4350.0 @ 1
thumbzoommayerelectric.comSQDPTB302G4502.511In StockSQUARE D4502.51 @ 1
us.rs-online.com747058004605.241In StockSquare D4605.24 @ 1
thumbzoomcrescentelectric.com1697044855.871In StockSquare D by Schneider Electric4855.87 @ 1
Graybar950292106305.4321In StockSquare D (Schneider Electric)6305.432 @ 1
