- mpn2BK2578
- brandname: TB Woods
- manufacturername: TB Woods

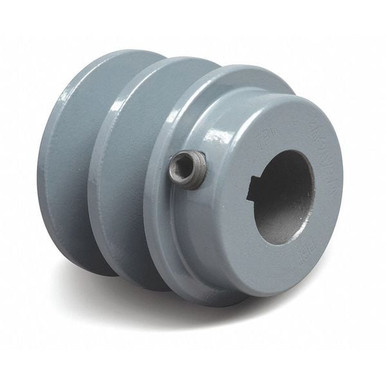

TB Woods 2BK2578 FHP Bored-to-size V-Belt Sheave, B Belt Section, 2 Grooves, 7/8" Bore, Cast Iron, 2.65" OD, 9440 max rpm
- Brand: TB Woods
- PartNumber: 2BK2578
- Model: 2BK2578
- Size: 9440 max rpm
- PackageQuantity: 1
- Binding: Misc.
- Manufacturer: Tb Wood'S
- Label: Tb Wood'S
Attributes
| Key | Value |
|---|
| 3V Pitch Diameter | Not Applicable |
| 3VX Pitch Diameter | Not Applicable |
| 4L Pitch Diameter | 2.28 in |
| 4L, A, or AX Belt Pitch. | 1.9 in |
| 5L Pitch Diameter | 2.713 in |
| 5L, B, or BX Belt Pitch. | 2.3 in |
| 5V Pitch Diameter | Not Applicable |
| 5VX Pitch Diameter | Not Applicable |
| A Pitch Diameter | 2.28 in |
| AX Pitch Diameter | 2.28 in |
| B Pitch Diameter | 2.713 in |
| Belt section | B-5L-A-4L |
| Bore Diameter | 7/8 in |
| Bore Type | Fixed |
| Bore type | Finished with keyway |
| Bore-to-size bore diame. | 0.88 |
| Bore-to-size keyseat | 3/16 in x 3/32 in |
| Brand | Tb Woods |
| Bushing Required | None |
| BX Pitch Diameter | 2.713 in |
| C Pitch Diameter | Not Applicable |
| Color | Grey |
| Component WR2 (lbs ft2) | 0.01 |
| Construction | Solid |
| Current Stock | 47 |
| CX Pitch Diameter | Not Applicable |
| Datum diameter | 2.3 |
| Dimension | 0.47 |
| Face Width | 1.75 in |
| Face width | 1.75 |
| Face width (in) | 1.75 |
| Fits Shaft Dia. | 7/8 in |
| For Belt Family | Classical, Classical Co. |
| For Belt Section (broad. | 4L, A, or AX, 5L, B, or. |
| For Belt Trade Size | 4L, 5L, A, AX, B, BX |
| For V-Belt Section | 4L, 5L, A, AX, B, BX |
| For V-Belt Type | Banded, Classical, Cogg. |
| Groove cross section se. | B |
| Hub location | -0.47 |
| Hub location (in) | -0.47 |
| Hub Projection | 0.47 in |
| Hub Type | One Side |
| I.D. | 2.15 |
| Includes | Set Screw |
| Industry Number | 2BK2578 |
| Inertia WR? | 2 |
| Inside diameter (in) | 2.15 |
| International Shipping | No |
| Item | Standard V-Belt Pulley |
| Keyway | Yes |
| Keyway Depth | 3/32 in |
| Keyway Size | 0.187" x 0.093" |
| Keyway Size Type | 0.187 in x 0.093 in |
| Keyway Width | 3/16 in |
| Length through Bore | 1 31/32 in |
| Material | Cast Iron |
| Material Fabrication | Cast |
| Material type | CI |
| Max RPM | 9440 |
| Maximum Bore Diameter | 7/8 in |
| Mpn | 2BK2578 |
| Number of Grooves | 2 |
| Number of grooves | 2 |
| O.D. | 2.65 |
| Outside Diameter | 2.65 in |
| Outside diameter (in) | 2.65 |
| Overall Width | 2 1/4 in |
| Pitch diameter | 2.71 |
| Pitch Diameter | 2.71 in |
| Pitch Diameter for V-Be. | 4L: 2.28 in / 5L: 2.713. |
| Pulley Bore Dia. | 7/8 in |
| Pulley Bore Type | Fixed Bore |
| Pulley Construction | Plain |
| Pulley Material | Cast Iron |
| Pulley Outside Dia. | 2.65 in |
| Pulley Type | Standard V-Belt Pulley |
| RPM upper limit | 9440 |
| Set Screw Included | Yes |
| SKU | ZO-G0715364 |
| Standards | ISO 9001:2015 |
| SubCategory | Power Transmission |
| UPC | 698672150149 |
| Weight | 1.7 lb |
All Prices
| Img | Seller | Supplier SKU | Min Price | MOQ | In Stock | Lead Time | Brand | Weight | Preferred Tier |
|---|
 | Zoro | G0715364 | 28.35 | 1 | 69 | | Tb Woods | 1.6 | 28.35 @ 1 |
 | sustainablesupply.com | C1694530 | 29.48 | 1 | In Stock | | TB Wood's | 1.6 | 29.48 @ 1 |
| grainger.ca | WWG5UHH5 | 40.84110362 | 1 | In Stock | | TB WOOD'S | 1.6 | 40.84110362 @ 1 |
 | simsupply.com | ZO-G0715364 | 41.23 | 1 | 47 | | Tb Woods | | 41.23 @ 1 |
 | National Supply Network | 82225814 | 45.69 | 1 | In Stock | | TB Wood's | | 45.69 @ 1 |
| Grainger | 5UHH5 | 51.75 | 1 | 70 | 0 | TB WOOD'S | | 51.75 @ 1 |
 | bscsource.com | 2BK2578 | 63.49 | 1 | In Stock | | TB Wood's | | 63.49 @ 1 |
 | MRO Supply | 347425 | 68.53 | 1 | In Stock | | TB Woods | | 68.53 @ 1 |
| us.rs-online.com | 73931836 | 76.03 | 1 | In Stock | | TB Wood's (Altra) | | 76.03 @ 1 |
 | Raptor Supplies | AE6PMZ | 85.343193 | 1 | In Stock | | TB WOOD'S | | 85.343193 @ 1 |
