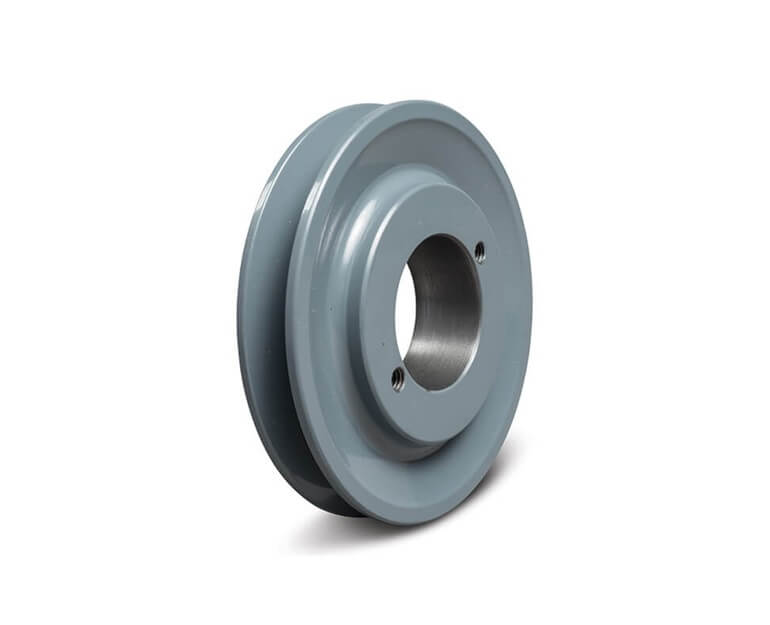

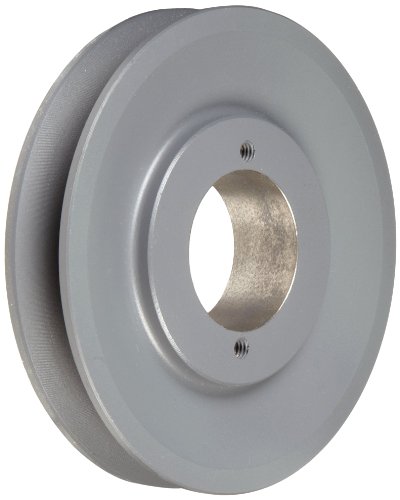

TB Woods BK52 FHP QT Bushed, 4.95" Outside Body Diameter V-Belt Sheave
- Brand: TB Woods
- PartNumber: BK52
- Model: 698672200363
- PackageQuantity: 1
- Binding: Misc.
- Manufacturer: TB Woods
- Label: TB Woods
Attributes
| Key | Value |
|---|
| 3L Pitch Diameter | Not Applicable |
| 3V Pitch Diameter | Not Applicable |
| 3VX Pitch Diameter | Not Applicable |
| 4L Pitch Diameter | 4.45 in |
| 4L, A, or AX Belt Pitch. | 4.2 in |
| 5L Pitch Diameter | 5.013 in |
| 5L, B, or BX Belt Pitch. | 4.6 in |
| 5V Pitch Diameter | Not Applicable |
| 5VX Pitch Diameter | Not Applicable |
| A Pitch Diameter | 4.45 in |
| AX Pitch Diameter | 4.45 in |
| B Pitch Diameter | 5.013 in |
| Belt section | B |
| Bore type | Quick disconnect bushing |
| Bore Type | Bushed |
| Brand | Tb Woods |
| Bushing | QT |
| Bushing Required | QT |
| Bushing torque rating | 1,750.00 |
| BX Pitch Diameter | 5.013 in |
| C Pitch Diameter | Not Applicable |
| Color | Grey |
| Construction | web |
| Current Stock | 57 |
| CX Pitch Diameter | Not Applicable |
| Datum diameter | 4.6 |
| Description | BK52-QT |
| Dimension | 0.44 |
| Face Diameter | 4.95 in |
| Face Width | 0.88 in |
| Face width | 0.88 |
| Face width (in) | 0.88 |
| Family | FHP QT Bushed |
| Family ID | 2,000 |
| Family name | V-Belt Sheaves and Pull. |
| Fits Shaft Dia. | 1/2 in to 1-1/2 in |
| For Belt Family | Classical, Classical Co. |
| For Belt Section (broad. | 4L, A, or AX, 5L, B, or. |
| For Belt Trade Size | 4L, 5L, A, AX, B, BX |
| For Bushing Size | QT |
| For Bushing Type | Quick Detachable |
| For V-Belt Section | 4L, 5L, A, AX, B, BX |
| Hub diameter (in) | 2.75 |
| Hub length (in) | 0.875 |
| Industry Number | BK52 |
| Inertia WR? | 5 |
| International Shipping | No |
| Item | Standard V-Belt Pulley |
| Length through Bore | 1 1/4 in |
| Material | Cast Iron, CI30 |
| Material class | 30 |
| Material type | CI |
| Max stock diameter (mm) | 14 |
| Max stock diameter dec . | 0.4375 |
| Max stock diameter frac. | 0.437500 |
| Maximum Bore Diameter | 1 1/2 in |
| Min stock diameter (mm) | 38 |
| Min stock diameter dec . | 1.5000 |
| Min stock diameter frac. | 1.500000 |
| Minimum Bore Diameter | 1/2 in |
| Mpn | BK52 |
| Number of grooves | 1 |
| Number of Grooves | 1 |
| Number of Steps | 1 |
| O.D. | 4.95 |
| Outside Diameter | 4.95 in |
| Outside diameter (in) | 4.95 |
| Overall Width | 1 5/16 in |
| Parting line | 0.4375 |
| Pitch Diameter | Not Applicable |
| Pitch diameter | 5.01 |
| Pitch diameter (in) | 5.01 |
| Pitch Diameter for V-Be. | 4L: 4.58 in / 5L: 5.013. |
| Pulley Bore Type | Quick Detachable Bushed. |
| Pulley Construction | Webbed |
| Pulley Material | Cast Iron |
| Pulley Outside Dia. | 4.95 in |
| Pulley Type | Standard V-Belt Pulley |
| RPM lower limit | 770 |
| RPM upper limit | 5,060 |
| Sales drawing 2D | BK52 |
| Set Screw Included | No |
| SKU | ZO-G2993977 |
| SubCategory | Power Transmission |
| Torque limit | 1,750 |
| Type | 2 |
| UPC | 698672200363 |
| Weight | 2.2 lb |
| Wr2 (lbs ft2) | 0.04 |
