TE Raychem 5-1814804-3

B07NQRBRL5

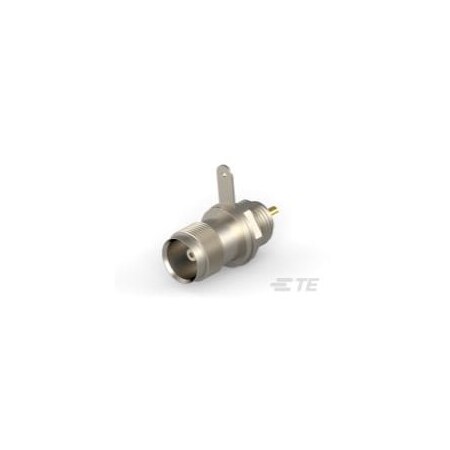

TE Raychem Connector

TE Raychem Connectorzoom

Attributes

Key Value
Alternate Part No.571-5-1814804-3
Base Product Number1814804
Body FinishNickel
Body MaterialZinc Alloy, Zinc
Body StyleBulkhead
BrandTE Connectivity / AMP
Cable Group-
CategoryConnectors, Interconnec.
Center Contact MaterialPhosphor Bronze
Center Contact PlatingGold
Connector StyleTNC
Connector TypeJack, Female Socket
Contact TerminationSolder Cup
Country of Origin (subj.United States
DescriptionCONN TNC JACK STR 75 OH.
Detailed DescriptionTNC Connector Jack, Fem.
Dielectric MaterialPolytetrafluoroethylene.
Digi-Key Part NumberA97590-ND
Fastening TypeThreaded
Features-
Frequency - Max4 GHz
GenderJack
Housing ColorSilver
Impedance75 Ohms, 75Ohm
Includes4 pcs - 1 Connector, 1 .
Ingress Protection-
Insertion Loss-
ManufacturerTE Connectivity AMP Con.
Manufacturer Part No.5-1814804-3
Manufacturer Product Nu.5-1814804-3
Mating Cycles500
Maximum Frequency4 GHz
MfrTE Connectivity AMP Con.
Mounting FeatureBulkhead - Rear Side Nut
Mounting TypePanel Mount
Number of Ports1
Operating Temperature-55?C ~ 85?C
Operating Temperature R.- 55 C to + 85 C
OrientationStraight
PackageBulk
ProductConnectors
Product CategoryRF Connectors / Coaxial.
Product StatusObsolete
RF SeriesTNC
SeriesZDC, Greenpar
Shield TerminationSolder Tag
Termination StyleSolder
Voltage Rating500 V

All Prices

Img Seller Supplier SKU Min Price MOQ In Stock Lead Time Brand Weight Preferred Tier
WaldomTE CONNECTIVITY AMP BRAND 5-1814804-31.75353026TE CONNECTIVITY/AMP BRAND1.75 @ 35
Onlinecomponents.com5-1814804-32.3311519TE Connectivity / AMP Brand2.33 @ 1
thumbzoomZoroG1010344063.4450029Te Connectivity3.44 @ 500
thumbzoomDigi-Key17559783.80545454545223026TE Connectivity AMP Connectors3.80545454545 @ 22
swatee.com5-1814804-34.93168TE Connectivity4.93 @ 1
RS Delivers616-32089.72162TE Connectivity9.72 @ 1
