BES00P7

B00OFPMSQ0

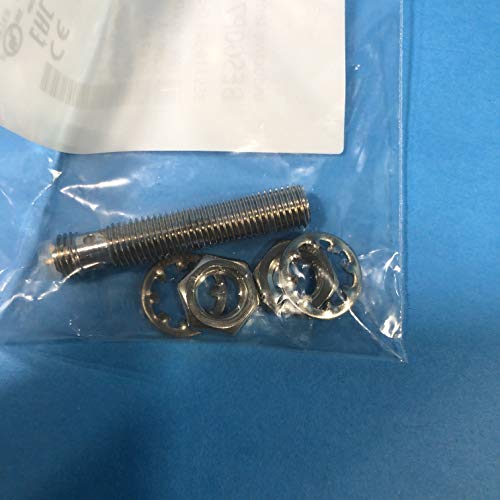

Balluff BES00P7 Inductive Sensors, DC 3/4-wire

Balluff BES00P7 Inductive Sensors, DC 3/4-wirezoom

Attributes

Key Value
Alternate Mfr Part Numb.BES 516-324-G-E5-C-S49
ApprovalsCE, cULus
Basic standardIEC 60947-5-2
Body CompositionMetallic
Body StyleCylindrical
ConnectionConnector, M08x1-S49
Connection TypeM8 3-Pin
Description2Inductive Sensor
Diameter12.7 mm
Enclosure type per iec .IP68 according to BWN P.
Family SeriesBalluff Inductive Proxi.
Function indicatorYes
Gross Weight0.03 lbs
Housing MaterialStainless Steel
IP RatingIP68
Item NumberBES00P7
ManufacturerBalluff
Manufacturer Part NumberBES00P7
Manufacturer part numbe.BES00P7
Manufacturer4Balluff, Inc.
Maximum Operating Tempe.70 C
Measurement Range2 mm
Mechanical installation.Flush (shielded)
Minimum Operating Tempe.-25 C
Mounting StyleFlush Shielded
Mounting TypeM8 x 1 Threaded
Net Weight0.025 lbs
Nominal Voltage12 VDC, 24 VDC
OutputPNP-NO
Power indicatorNo
Power TypeDC
Price:$243.09
Primary TypeInductive Proximity Sen.
Protected against miswi.Yes
Protected against polar.Yes
Protection classII
Range2 mm
Rated operating distanc.2 mm
Ready delay tv max.20 ms
Repeat accur. r max. (%.0.05
Sensing TypeEnd
SeriesBES Series
ShieldingShielded
Short-circuit protectedYes
SizeM08
Supply Voltage10-30 VDC
Switching Current200 mA
Switching freq. f max.1500 Hz
Switching Frequency1.5 kHz
Switching output / func.PNP/Normally open (NO)
Sxnum3BES00P7
Temp. drift max. (% of .0.1
Termination3-wire
Utilisation categoryDC 13

All Prices

Img Seller Supplier SKU Min Price MOQ In Stock Lead Time Brand Weight Preferred Tier
RadwellBES00P795.51In StockBALLUFF95.5 @ 1
cmafh.comBES00P7135.5615Balluff135.56 @ 1
thumbzoomMisumi USABES00P7138.431In StockBALLUFF138.43 @ 1
thumbzoomGalcoBES00P7-BALF168.4416Balluff0.03168.44 @ 1
us.rs-online.com70448076176.48142Balluff176.48 @ 1
AmazonTPB01130H15W176.561In Stock5BALLUFF176.56 @ 1
thumbzoomsun-source.comBES00P7243.091In StockBALLUFF243.09 @ 1
