- mpn8102 0601000
- brandname: Belden
- manufacturername: Belden

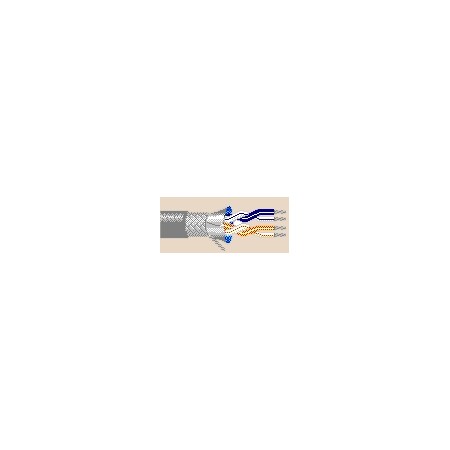

BELDEN 8102 0601000 SHLD MULTIPR CABLE 2PR 1000FT 300V CHR
- Brand: Belden
- PartNumber: 8102 0601000
- Model: 8102 0601000
- PackageQuantity: 1
- Manufacturer: Belden
- Label: Belden
Attributes
| Key | Value |
|---|
| Alternate Part No. | 566-8102-1000 |
| Application | For EIA RS-232, EIA RS-. |
| Base Product Number | 8102 |
| Brand | Belden Wire & Cable |
| Cable Type | STP, Multi-Pair |
| Category | Cables, Wires |
| Conductor Insulation | Foam Polyethylene (FPE) |
| Conductor Material | Tinned Copper (TC), Cop. |
| Conductor Size | 24 AWG |
| Conductor Strand | 7/32 |
| Configuration | 2 Pair |
| Country of Origin | US - United States |
| Country of Origin (subj. | Unknown |
| Delivery Restrictions | Due to size or weight o. |
| Description | MULTI-PAIR 4COND 24AWG . |
| Detailed Description | 4 (2 Pair Twisted) Cond. |
| Digi-Key Part Number | BEL5303-1000-ND |
| ECCN | EAR99 |
| Features | Drain Wire, Low capacit. |
| Insulation Material | Foam Polyethylene (FPE). |
| Jacket (Insulation) Dia. | 0.270" (6.86mm) |
| Jacket (Insulation) Mat. | Poly-Vinyl Chloride (PV. |
| Jacket (Insulation) Thi. | 0.0350" (0.889mm) |
| Jacket Color | Chrome |
| Jacket Colour | Chrome |
| Jacket Material | PVC, Polyvinyl Chloride. |
| Length | 1000.0' (304.8m), 1000 . |
| Manufacturer | Belden Wire & Cable, Be. |
| Manufacturer Part No. | 8102 0601000 |
| Manufacturer Product Nu. | 8102 0601000 |
| Manufacturer Standard L. | 6 Weeks |
| Mfr | Belden Inc. |
| No. of Conductors | 4 |
| Nominal Impedance | 50 Ohms |
| Number of Conductors | 4, 4 (2 Pair Twisted) |
| Number of Pairs | 2 |
| Operating Temperature | -30 to +80 ?C, -30?C ~ . |
| Outer Diameter | 0.27 in. |
| Outside Diameter | 6.86 mm |
| Package | Spool |
| Packaging | Coil |
| Product Category | Multi-Paired Cables |
| Product Header | Overall Foil/Braid Shie. |
| Product Status | Active |
| Ratings | UL Style 2919 |
| Series | Classics, Datalene 8102. |
| Shield | Aluminum Foil-Polyester. |
| Shield Coverage | 100%, 65% |
| Shield Material | Aluminum; Copper, Tinne. |
| Shield Type | Foil, Braid |
| Shielded | Overall Beldfoil Shield |
| Shielding | Shielded, Braid, Foil |
| Standards | UL AWM Style 2919 ; NEC. |
| Stranding | 7 x 32, 7x32 |
| Temperature, Rating | -30 to 80 C |
| Type | Networking |
| Unit Weight | 17.237 kg |
| UNSPSC | 26121609 |
| Usage | Computer |
| Voltage Rating | 300 V, 30 V |
| Wire Gauge | 24 AWG |
| Wire Gauge - AWG | 24 |
| Wire Size | 24 AWG |
All Prices
| Img | Seller | Supplier SKU | Min Price | MOQ | In Stock | Lead Time | Brand | Weight | Preferred Tier |
|---|
 | turtle.com | BDN 8102 0601000 | 2.63 | 1 | 1000 | | Belden | | 2.63 @ 1000 |
| alldataresource.com | B8102-1000 | 4.41 | 1 | 1000 | | Belden | | 4.41 @ 1000 |
| Onlinecomponents.com | 8102-060-1000 | 1703.0 | 1 | 1000 | | Belden | | 1703.0 @ 1000 |
| Mouser | 566-8102-1000 | 1827.0 | 1 | 1000 | | Belden | | 1827.0 @ 1000 |
 | Zoro | G1152156 | 1948.03 | 1 | 1000 | 30 | Belden | | 1948.03 @ 1000 |
 | swatee.com | 8102 0601000 | 2263.36 | 1 | 7320 | | Belden Wire & Cable | | 2263.36 @ 1000 |
 | Markertek | BL-8102-1000 | 2816.94 | 1 | 1000 | | Belden | | 2816.94 @ 1000 |
 | Newark | 03F4112 | 3184.93 | 1 | 12000 | | BELDEN | | 3184.93 @ 1000 |
| Graybar | 99567856 | 3415.216 | 1 | 1000 | | Belden | | 3415.216 @ 1000 |
 | Digi-Key | 8131655 | 3416.22 | 1 | 1000 | | Belden Inc. | | 3416.22 @ 1000 |
| us.rs-online.com | 70005536 | 3677.05 | 1 | 1000 | | Belden | | 3677.05 @ 1000 |
