- mpnKA44U2N
- brandname: Burndy
- manufacturername: Burndy

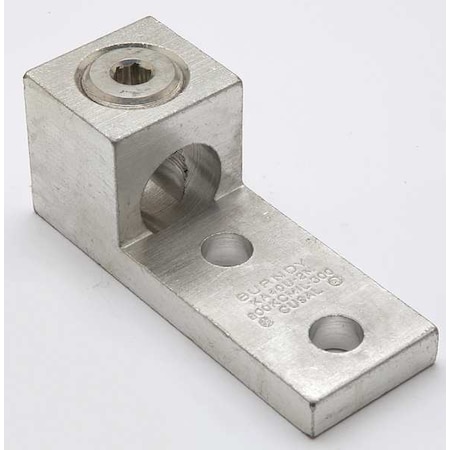

Mechanical Conn, 1000 to 500 kcmil, 1 Cond
- Brand: Burndy
- PartNumber: KA44U2N
- PackageQuantity: 1
- Manufacturer: BURNDY
- Label: BURNDY
Attributes
| Key | Value |
|---|
| Aluminum Size (Range) | 500 - 1000 kcmil |
| Approvals | CSA, UL |
| Body Material | Aluminum |
| Bolt Hole Size | 1/2 |
| Brand | Burndy |
| Certification - CSA App. | No |
| Color | Aluminum |
| Compatible with Product. | Aluminum Cable, Copper . |
| Conductor - AL Str Size | 500 kcmil;550 kcmil;556. |
| Conductor - AL Str Size. | 500 kcmil-1000 kcmil |
| Conductor - Copper Str . | 500 kcmil;550 kcmil;600. |
| Conductor - Copper Str . | 500 kcmil-1000 kcmil |
| Conductor Size | 500-1000 KCMIL |
| Connection Orientation | Dual Rated Lug |
| Connector Type | Terminal, Lug |
| Contact Finish | Tin |
| Copper Solid Size (Rang. | N/A |
| Copper Stranded (Range) | 500 kcmil-1000 kcmil |
| Country of Origin | US - United States |
| Current Stock | 3 |
| Dimension - Bolt Hole S. | 0.50 in |
| Dimension - Bolt Size f. | 1 to 2 |
| Dimension - D inch | 3.03 in |
| Dimension - Height frac. | 1.95 in |
| Dimension - Height inch | 1.95 in |
| Dimension - Hole Size i. | 0.56 in |
| Dimension - Hole Size mm | 14 mm |
| Dimension - L Length Ov. | 121 mm |
| Dimension - Length Over. | 4.75 in |
| Dimension - N inch | 0.63 in |
| Dimension - Pad Width i. | 1.77 in |
| Dimension - Stud Size i. | 44928 |
| Dimension - Width fract. | 1-3/4 in |
| Dimension - Width inch | 1.75 in |
| Dimension - Width mm | 44 mm |
| ECCN | EAR99 |
| Family Series | Burndy Terminals, KA Se. |
| For Conductor Material | Aluminum, Copper |
| For Stranded Copper Wir. | 1000 kcmil |
| For Stranded Copper Wir. | 500 kcmil |
| For Stud Size | 1/2 in |
| For Wire Size | 500 kcmil, 550 kcmil, 6. |
| Gross Weight | 0.0427 lbs |
| Head Style | Hex |
| Hole Diameter | 0.56 in |
| Hole Spacing | 1.75 in |
| Installation Torque | 550 |
| International Shipping | No |
| Item | Mechanical Connector |
| Item Number | KA44U2N |
| Lead Time | Expected to ship in 1-2. |
| Length | 4.75 in |
| Length (Straight Wirewa. | 4.75 in |
| Manufacturer | Burndy |
| Manufacturer Part Number | KA44U2N |
| Material | Aluminum, Tin-Plated Al. |
| Material/Composition | Aluminum Alloy |
| Max Conductor Range | 1,000 kcmil |
| Max. Conductor Size | 1000 kcmil Stranded |
| Maximum Operating Tempe. | 194 Degrees F |
| Maximum Voltage | 600 V |
| Min Conductor Range | 500 kcmil |
| Min. Conductor Size | 500 kcmil Stranded |
| Mpn | KA44U2N |
| Net Weight | 0.6833 lbs |
| No. of Conductors | 1 |
| Number of Conductors | 1 |
| Number of Holes | 1, 2 |
| Number of Terminations | 1 |
| Overall Depth | 1 13/16 in |
| Overall Length | 4.75 in |
| Overall Width | 1.95 in |
| Plated (Yes or No) | Y |
| Product Material | Aluminum |
| Product Series | KA |
| RoHS Compliant | No |
| SKU | ZO-G4678371 |
| Special Features | Providing Low Contact R. |
| Standards | CSA Certified, UL Listed |
| Stud Size | 1/2 in |
| SubCategory | Electrical |
| Tongue Length | 3.03 in |
| Tongue Thickness | 0.5 in |
| Tongue Width | 1.77 in |
| Torque | 550 in-lb |
| Type | Bolted Lugs & Terminals |
| Type of Plating | Tin |
| UL Listed | Yes |
| UNSPSC | 39121408 |
| UPC | 781810559215 |
| Width | 1.95 in |
| Wire Size Ranges | 500 kcmil - 1000 kcmil |
All Prices
| Img | Seller | Supplier SKU | Min Price | MOQ | In Stock | Lead Time | Brand | Weight | Preferred Tier |
|---|
| steinerelectric.com | 204631 | 18.18 | 1 | In Stock | | BURNDY | | 18.18 @ 1 |
| Graybar | 88047603 | 29.344 | 1 | In Stock | | Burndy | | 29.344 @ 1 |
 | Zoro | G4678371 | 32.75 | 1 | 1 | | Burndy | 0.65 | 32.75 @ 1 |
 | Galco | KA44U2N-BURN | 41.3 | 1 | In Stock | | Burndy | 0.6833 | 41.3 @ 1 |
 | usmegastore.com | KA44U2N | 44.01 | 1 | In Stock | | Burndy | | 44.01 @ 1 |
 | simsupply.com | ZO-G4678371 | 44.73 | 1 | 3 | | Burndy | | 44.73 @ 1 |
 | Megadepot | KA44U2N | 46.2 | 1 | In Stock | | Burndy | | 46.2 @ 1 |
