Chicago Latrobe 50718

mpn50718
brandname: CHICAGO-LATROBE
manufacturername: CHICAGO-LATROBE

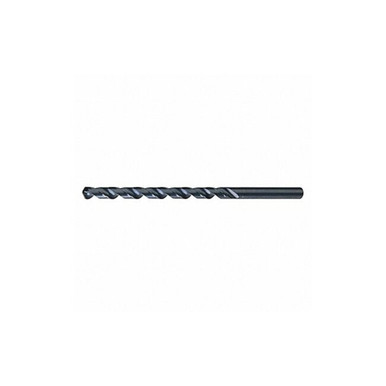

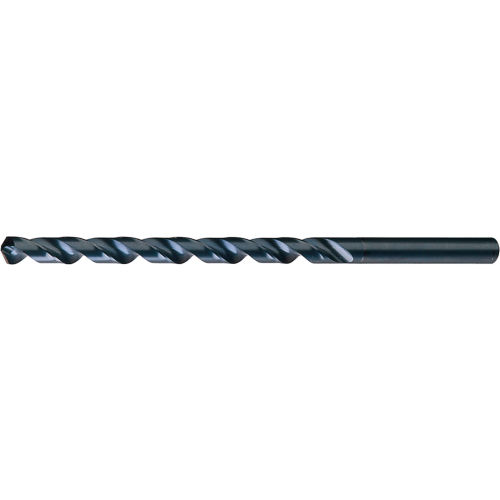

Chicago Latrobe 5/32" Dia. 12" OAL Black Oxide High Speed Steel Extra Long Drill

Chicago Latrobe 5/32" Dia. 12" OAL Black Oxide High Speed Steel Extra Long Drill

zoom

Brand: Chicago Latrobe
PartNumber: 50718
Model: 50718
Manufacturer: Chicago Latrobe
Label: Chicago Latrobe

Attributes

Key	Value
Applicable Materials	Carbon Steel, Alloy Ste.
Bit Dia.	5/32"
Brand	Chicago-Latrobe
Coolant Fed	Non-Coolant Through
Current Stock	9
Cutting Depth	9 in
Cutting Direction	Right Hand
Cutting Edge Material	HSS
Decimal Equivalent	0.1563
Depth x Dia. Ratio	4xD
Depth:Dia. Ratio	4xD
Diameter	0.1562"
Diameter (Fraction)	5/32"
Drill Bit Dimension Type	Fractional Inch
Drill Bit Finish	Black Oxide
Drill Bit Grouping	Drill Bit
Drill Bit Material	High Speed Steel
Drill Bit Point Angle	118 Degrees
Drill Bit Size	5/32 in
Drill Construction	General Purpose
Drill Diameter Tolerance	+0.0000 in /-0.0007 in
Drill Length Class	Extra Long
Drill Point Length	0.0469 in
Drill Size - Decimal In.	0.1562 in
Drill Size - Fraction	5/32 in
Drill Size System	Fractional
Drill Style	Extra Length Drill
Finish	Black Oxide
Flute Length	9.0000", 9 in
Flute Length (Metric)	228.60 mm.
Flute Type	Spiral
Hand of Cut	Right
Hand of Spiral	Right
International Shipping	No
Item	Extra Long Drill Bit
Material	HSS, High Speed Steel
Maximum Drilling Depth	9 in
Measurement System	Imperial
Mpn	50718
Number of Flutes	2
Overall Length	12 in, 12.0000"
Overall Length (Metric)	304.80 mm.
Point Angle	118 deg, 118?
Point Style	Notched
Point Type	K-Notch
Series	120X
Shank Configuration	Straight
Shank Dia.	9/64 in
Shank Length	3.0000", 3 in
Shank Length (Metric)	76.20 mm.
Shank Size	0.1562", 0.156", 5/32 in
Shank Size (Metric)	3.97 mm.
Shank Type	Straight
SKU	ZO-G2986203
Style	120X
SubCategory	Machining
Surface Condition	Steam Oxide
Tool Size	5/32"
Type	Extra Long General Purp.
UPC	662355507186

All Prices

Img	Seller	Supplier SKU	Min Price	MOQ	In Stock	Lead Time	Brand	Weight	Preferred Tier
	MRO Supply	6130761	17.45	3	In Stock		Chicago-Latrobe		17.45 @ 3
	Megadepot	50718	17.72	1	In Stock		Chicago-Latrobe		17.72 @ 1
	Global Industrial	WBB2546820	18.75	1	In Stock		CHICAGO-LATROBE		18.75 @ 1
	sustainablesupply.com	C2764949	19.47	1	In Stock		Chicago-Latrobe	0.06	19.47 @ 1
	Zoro	G2986203	22.79	1	1		Chicago-Latrobe	0.06	22.79 @ 1
	simsupply.com	ZO-G2986203	32.29	1	9		Chicago-Latrobe		32.29 @ 1
	National Supply Network	36855609	37.27	1	In Stock		Chicago-Latrobe		37.27 @ 1
	Guardian	36855609	46.47	1	In Stock		Chicago-Latrobe		46.47 @ 1
