Dayton 4Z522

mpn4Z522
brandname: Dayton
manufacturername: Dayton

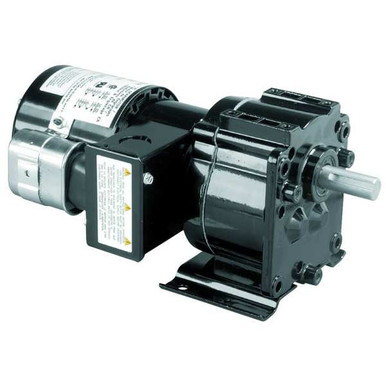

AC Gearmotor, 97 RPM, TEFC, 115/230V

Brand: Dayton
PartNumber: 4Z522
Model: 4Z522
PackageQuantity: 1
Binding: Misc.
Manufacturer: Dayton
Label: Dayton

Attributes

Key	Value
Ambient (C)	40
Bearings	Heavy Duty Needle Rolle.
Brake	5X400
Brand	Dayton
Capacitor Required	Included
Current Stock	47
Enclosure	TEFC
Full Load Amps	1.2/0.63
Full Load Torque (In.-L.	43.0
Gear Case	Die Cast Aluminum
Gear Case Material	Die Cast Aluminum
Gear Material	Hardened Steel
Gear Ratio	17:1
Gear Type	Helical First Stage/Sub.
Gearmotor Brake Type	None
Gearmotor Enclosure	Totally Enclosed Fan-Co.
Gearmotor Mounting Posi.	All Angle
Gearmotor Phase	1
Gearmotor Rotation	CW/CCW
Gearmotor Shaft Orienta.	Parallel
Gearmotor Shaft Type	Single
Gearmotor Type	AC Gearmotor
Gearmotor Voltage	115/230V AC, 115/230 V .
Gears	Hardened Steel, 1st Sta.
Housing	Die Cast Aluminum
Hz	50/60, 60/50
Input HP	1/15
International Shipping	No
Item	AC Gearmotor
Keyway Depth	1/8 in
Keyway Width	3/16 in
Lead Time	Expected to ship in 1-2.
Length Less Shaft	8-3/4", 8 3/4 in
Length Less Shaft (In.)	8-3/4
Lubrication	Permanent Heavy Duty Ge.
Max. Ambient Temp.	40 Degrees C
Max. Torque	43 in.- lbs.
Motor Type	PSC, Permanent Split Ca.
Mount Hole Center-to-Ce.	1.5 in
Mount Hole Center-to-Ce.	4 in
Mounting	All Position
Mpn	4Z522
Nameplate RPM	97 RPM, 97
Number of Brake Discs R.	1
Output Shaft Diameter	5/8 in
Output Shaft Height	3.5 in
Output Shaft Length	1 1/2 in
Overall Height	5.13 in
Overall Width	5.5 in
Overhung Load	175 lbs.
Overhung Load (Lb.)	175
Phase	1
Rotation	Rev.
Seals	Lip Type on Input and O.
Shaft Dia. (Dimension U)	5/8 in, 5/8"
Shaft Dimensions (In.)	5/8 x 1 1/2
Shaft Length (Dimension.	1.5"
Shaft Orientation	Parallel
Ship Weight	13 lbs.
SKU	ZO-G0264187
Standards	UL Recognized, C-UL Rec.
SubCategory	Power Transmission
Thermal Protection	None
Type	Parallel Shaft
UPC	190735340790
Voltage	115/230
Voltage Rating	115/230

All Prices

Seller	Supplier SKU	Min Price	MOQ	In Stock	Brand	Weight	Preferred Tier
AmazonSC	B000TK9U98	368.11	1	In Stock	Dayton		368.11 @ 1
Zoro	G0264187	474.99	1	In Stock	Dayton	12.5	474.99 @ 1
sustainablesupply.com	C2674759	482.06	1	In Stock	Dayton	12.5	482.06 @ 1
emotorpro.com	4Z522	526.32	1	In Stock	Dayton	13.0	526.32 @ 1
grainger.ca	DTN4Z522	553.44884918	1	In Stock	DAYTON	12.5	553.44884918 @ 1
simsupply.com	ZO-G0264187	589.4	1	47	Dayton		589.4 @ 1
Raptor Supplies	AE2QXR	780.0108615	1	In Stock	DAYTON		780.0108615 @ 1
