Dayton 4Z523

mpn4Z523
brandname: Dayton
manufacturername: Dayton

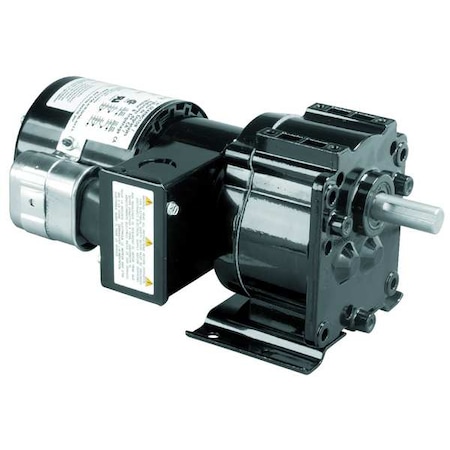

AC Gearmotor,139 RPM,TEFC,115/230V

Brand: Dayton
PartNumber: 4Z523
PackageQuantity: 1
Binding: Misc.
Manufacturer: DAYTON
Label: DAYTON

Attributes

Key	Value
Ambient (C)	40
Bearings	Heavy Duty Needle Rolle.
Brake	5X400
Brand	Dayton
Capacitor Required	Included
Current Stock	97
Enclosure	TEFC
Full Load Amps	1.2/0.63
Full Load Torque (In.-L.	30.0
Gear Case	Die Cast Aluminum
Gear Case Material	Die Cast Aluminum
Gear Material	Hardened Steel
Gear Ratio	12:1
Gear Type	Helical First Stage/Sub.
Gearmotor Brake Type	None
Gearmotor Enclosure	Totally Enclosed Fan-Co.
Gearmotor Mounting Posi.	All Angle
Gearmotor Phase	1
Gearmotor Rotation	CW/CCW
Gearmotor Shaft Orienta.	Parallel
Gearmotor Shaft Type	Single
Gearmotor Type	AC Gearmotor
Gearmotor Voltage	115/230V AC, 115/230 V .
Gears	Hardened Steel, 1st Sta.
Housing	Die Cast Aluminum
Hz	50/60, 60/50
Input HP	1/15
International Shipping	No
Item	AC Gearmotor
Keyway Depth	1/8 in
Keyway Width	3/16 in
Length Less Shaft	8-3/4", 8 3/4 in
Length Less Shaft (In.)	8-3/4
Lubrication	Permanent Heavy Duty Ge.
Max. Ambient Temp.	40 Degrees C
Max. Torque	30 in.- lbs.
Motor Type	PSC, Permanent Split Ca.
Mount Hole Center-to-Ce.	1.5 in
Mount Hole Center-to-Ce.	4 in
Mounting	All Position
Mpn	4Z523
Nameplate RPM	139 RPM, 139
Number of Brake Discs R.	1
Output Shaft Diameter	5/8 in
Output Shaft Height	3.5 in
Output Shaft Length	1 1/2 in
Overall Height	5.13 in
Overall Width	5.5 in
Overhung Load	175 lbs.
Overhung Load (Lb.)	175
Phase	1
Rotation	Rev.
Seals	Lip Type on Input and O.
Shaft Dia. (Dimension U)	5/8 in, 5/8"
Shaft Dimensions (In.)	5/8 x 1 1/2
Shaft Length (Dimension.	1.5"
Shaft Orientation	Parallel
Ship Weight	12 lbs.
SKU	ZO-G1263026
Standards	UL Recognized, C-UL Rec.
SubCategory	Power Transmission
Thermal Protection	None
Type	Parallel Shaft
UPC	190735340806
Voltage	115/230
Voltage Rating	115/230

All Prices

Seller	Supplier SKU	Min Price	MOQ	In Stock	Lead Time	Brand	Weight	Preferred Tier
grainger.ca	DTN4Z523	439.60617808	1	In Stock		DAYTON	11.95	439.60617808 @ 1
Zoro	G1263026	443.99	1	85		Dayton	11.95	443.99 @ 1
AmazonTP	B00RW7OPEG	471.34	1	In Stock	5	Dayton		471.34 @ 1
sustainablesupply.com	C1689957	503.68	1	In Stock		Dayton	11.95	503.68 @ 1
emotorpro.com	4Z523	523.74	1	In Stock		Dayton	12.0	523.74 @ 1
simsupply.com	ZO-G1263026	564.55	1	97		Dayton		564.55 @ 1
Raptor Supplies	AE2QXT	728.914446	1	In Stock		DAYTON		728.914446 @ 1
