- mpn4Z529
- brandname: Dayton
- manufacturername: Dayton

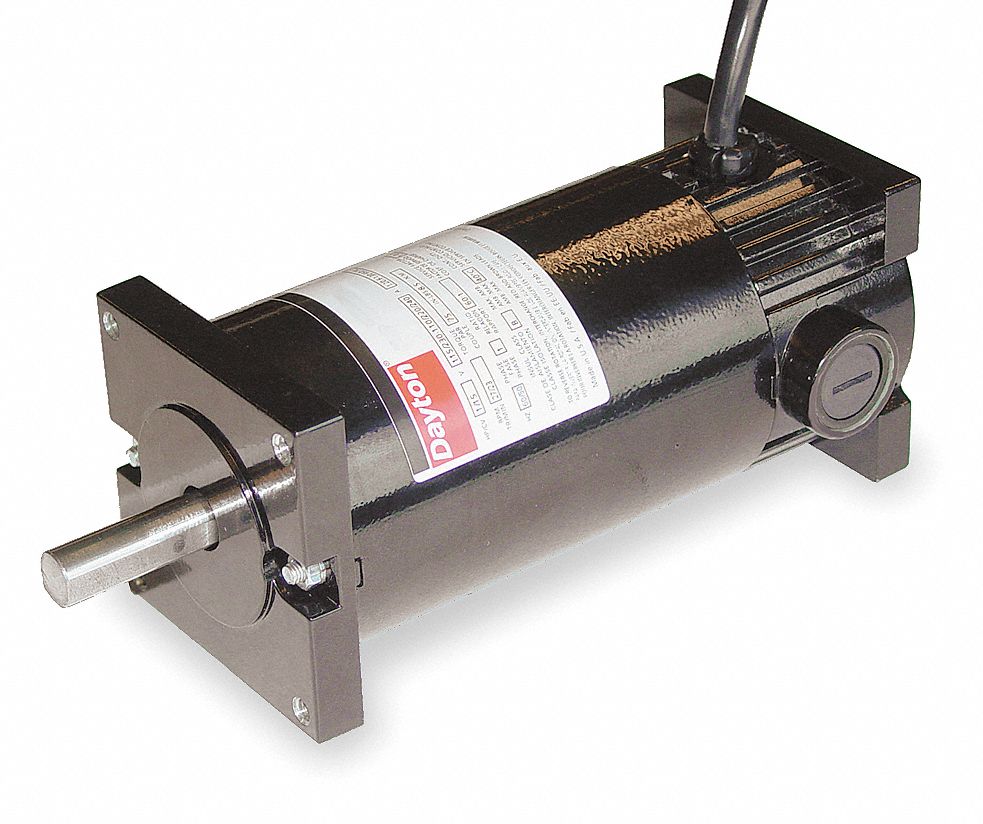

Dayton 1/3, 1/6 HP DC Permanent Magnet Motor DC Permanent Magnet
- Brand: CAI - DAYTON
- PartNumber: 4Z529
- PackageQuantity: 1
- Manufacturer: CAI - DAYTON
- Label: CAI - DAYTON
Attributes
| Key | Value |
|---|
| Amps | 16.2 |
| Base Mounting O.C. | 7-7/16 x 2 in |
| Bearings | Ball |
| Bolt Circle Dia. | 5 15/16 in |
| Brand | Dayton |
| Enclosure Type | TENV (Totally Enclosed . |
| Face Mounting O.C. | 2-5/8 x 2-5/8 |
| Frame | Non Standard, Non-Stand. |
| Full Load Amps | 16.2 A |
| HP | 1/6, 1/3, 1/3, 1/6 |
| Ins. Class | B |
| Insulation Class | B |
| International Shipping | No |
| Item | DC Permanent Magnet Mot. |
| Length Less Shaft | 7 7/8 in |
| Manufacturers Warranty . | 1 yr |
| Max. Ambient Temp. | 40 Degrees C |
| Maximum Ambient Tempera. | 40? C |
| Motor Application | Washdown |
| Motor Design | Permanent Magnet DC |
| Motor Shell Length | 7-7/8" |
| Motor Thermal Protection | None |
| Mounting | C-Face/Rigid |
| Mpn | 4Z529 |
| Nameplate RPM | 1,800/4,200 |
| Overall Length | 9 3/8 in, 9-3/8" |
| Phase | DC |
| Product Type | DC |
| Rotation | Reversible, CW/CCW |
| RPM | 1800/4200 |
| RPM Group | 1701-1800 |
| RPM Range | 1,701-1,800 |
| Shaft Dia. | 1/2 in |
| Shaft Diameter | 1/2" |
| Shaft Length | 1-1/2", 1 1/2 in |
| Ship Weight | 10 lbs. |
| SKU | ZO-G1147657 |
| Standards | UL Recognized (E61772) |
| SubCategory | Motors/Dc Motors |
| Thermal Protection | None |
| UPC | 190735340851 |
| Voltage | 12/24V DC |
| Voltage Compatibility | 12V DC, 24V DC |
| Volts | 12/24VDC |
All Prices
| Img | Seller | Supplier SKU | Min Price | MOQ | In Stock | Lead Time | Brand | Weight | Preferred Tier |
|---|
| AmazonTP | B000WTCV92 | 224.16 | 1 | In Stock | 2 | DAYTON | | 224.16 @ 1 |
 | Zoro | G1147657 | 253.99 | 1 | 46 | | Dayton | 9.7 | 253.99 @ 1 |
 | sustainablesupply.com | C1562567 | 282.42 | 1 | In Stock | | Dayton | 9.7 | 282.42 @ 1 |
 | simsupply.com | ZO-G1147657 | 307.58 | 1 | In Stock | | Dayton | | 307.58 @ 1 |
 | Raptor Supplies | AE2QXY | 348.277995 | 1 | In Stock | | DAYTON | | 348.277995 @ 1 |
| emotorpro.com | 4Z529 | 466.42 | 1 | In Stock | | Dayton | 10.0 | 466.42 @ 1 |
