- mpnLU80-5101
- brandname: Flowline
- manufacturername: Flowline

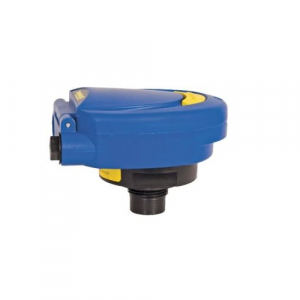

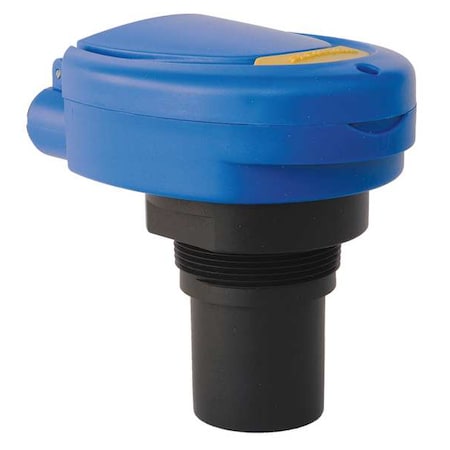

Flowline LU80-5101 EchoSpan Ultrasonic Level Transmitter with 9.8' Cable, 1" NPT
- Brand: Flowline
- PartNumber: LU80-5101
- Model: LU80-5101
- PackageQuantity: 1
- Binding: Misc.
- Manufacturer: Flowline
- Label: Flowline
Attributes
| Key | Value |
|---|
| Accuracy | ? 0.2% of range, +/-0.2. |
| Beam width | 2" (5cm) |
| Beam Width | 2 in, 2" |
| Brand | Flowline |
| Classification | General Purpose |
| Compliance | CE, RoHs |
| Conduit entrance | Dual, 1/2" NPT |
| Configuration | Push Button |
| Current Stock | 9 |
| Dead Band | 4", 4 in |
| Dead band | 4" (10cm) |
| Display | LCD, 6-digit, 6-digit, . |
| Display type | LCD, 6-digit |
| Display units | Inch, cm and percent |
| Enclosure Material | Polycarbonate |
| Enclosure rating | NEMA 4X (IP65) |
| Enclosure Rating | NEMA 4X (IP65) |
| Enclosure vent | Water tight membrane |
| End. hardware | Brass & stainless |
| End. material | Polycarbonate |
| Gasket Material | Viton |
| Height | 3.9", 3.9 in |
| Input Voltage | 12-28 VDC, 12 to 28V DC |
| International Shipping | No |
| Item | Noncontact Ultrasonic L. |
| Lead Time | Expected to ship in 1-2. |
| Loop resist. | 500 Ohms @ 24 VDC |
| Material | PVDF |
| Max. Pressure | 30 psi |
| Memory | Non-volatile |
| Mount gasket | Viton? |
| Mounting | 1 in NPT, 1" NPT |
| Mounting Type | NPT 1 in |
| Mpn | LU80-5101 |
| Output | 4 to 20mA, 2-wire |
| Overall Length | 5.2 in, 5.2" |
| Pressure | MWP = 30 psi (2 bar) |
| Process mount | 1" NPT(1" G) |
| Range | 9.8 ft, 9.8 ft., 4" to . |
| Resolution | 0.019", 0.019 in |
| Series | EchoSpan Series |
| Signal fail-safe | 4mA, 20mA, 21mA, 22mA o. |
| Signal invert | 4-20 mA, 20-4 mA |
| Signal output | 4-20 mA, two-wire |
| SKU | ZO-G4033163 |
| Standards | CE, RoHs |
| SubCategory | Pumps |
| Supply voltage | 12-28 VDC |
| Temp, comp. | Automatic |
| Temp. Range | -4 Degrees to 140 Degr. |
| Trans, material | PVDF |
| Width | 4.1 in, 4.1" |
All Prices
| Img | Seller | Supplier SKU | Min Price | MOQ | In Stock | Lead Time | Brand | Weight | Preferred Tier |
|---|
 | Zoro | G4033163 | 745.0 | 1 | 32 | | Flowline | 1.45 | 745.0 @ 1 |
| grainger.ca | WWG12U448 | 757.40033518 | 1 | In Stock | | FLOWLINE | 1.45 | 757.40033518 @ 1 |
| us.rs-online.com | 70235993 | 789.92 | 1 | 3 | | Flowline | | 789.92 @ 1 |
 | burtprocess.com | LU80-5101 | 800.0 | 1 | 6 | | Flowline | | 800.0 @ 1 |
 | Automation Direct | LU80-5101 | 800.0 | 1 | 9 | | Flowline | 1.4 | 800.0 @ 1 |
 | Megadepot | LU80-5101 | 800.0 | 1 | In Stock | | Flowline | | 800.0 @ 1 |
 | usmegastore.com | LU80-5101 | 800.0 | 1 | In Stock | | Flowline | | 800.0 @ 1 |
 | heavydutydepot.com | LU80-5101 | 800.0 | 1 | In Stock | | Flowline | | 800.0 @ 1 |
 | sustainablesupply.com | C1743130 | 823.85 | 1 | In Stock | | Flowline | 1.45 | 823.85 @ 1 |
| Kele | LU80-5101 | 826.28 | 1 | 7 | | Flowline | | 826.28 @ 1 |
 | National Supply Network | 41060468 | 857.43 | 1 | In Stock | | Flowline | | 857.43 @ 1 |
 | simsupply.com | ZO-G4033163 | 881.7 | 1 | 9 | | Flowline | | 881.7 @ 1 |
 | bscsource.com | LU805101 | 979.19 | 1 | In Stock | | Flowline | | 979.19 @ 1 |
| RS Delivers | 124-0126 | 999.792 | 1 | 3 | | Flowline | | 999.792 @ 1 |
 | Raptor Supplies | AA4MFL | 1059.448923 | 1 | In Stock | | FLOWLINE | | 1059.448923 @ 1 |
