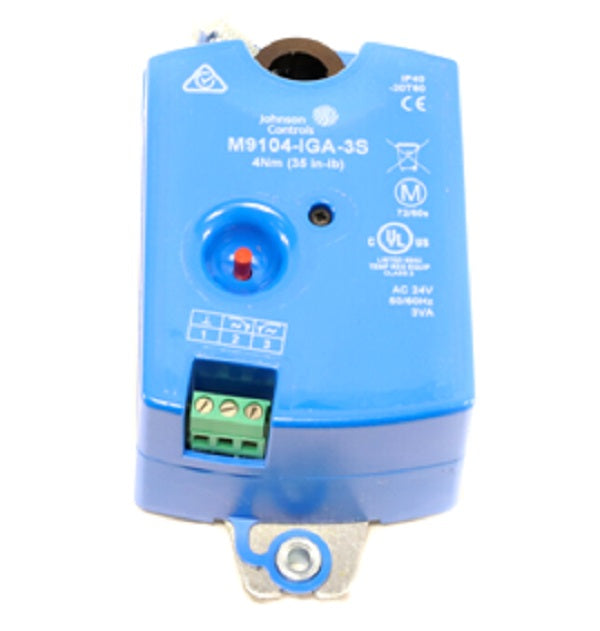

Johnson Controls M9104-IGA-3S

mpnM9104-IGA-3S
brandname: JOHNSON CONTROLS
manufacturername: JOHNSON CONTROLS

Johnson Controls M9104-IGA-3S Series M9104 Electric Non-Spring-Return Actuator, Floating or On/Off Control, 4 Nm Torque, M3 Screw Terminals

Johnson Controls M9104-IGA-3S Series M9104 Electric Non-Spring-Return Actuator, Floating or On/Off Control, 4 Nm Torque, M3 Screw Terminals

zoom

Brand: Johnson Controls
PartNumber: M9104-IGA-3S
Model: M9104-IGA-3S
PackageQuantity: 1
Binding: Misc.
Manufacturer: Johnson Controls Inc
Label: Johnson Controls Inc

Attributes

Key	Value
Ambient Temp. Range	-4 Degrees to 125 Degr.
Approvals	C-Tick, CE, cUL, UL
Best Sellers Rank	See Top 100 in Industri.
Brand	Johnson Controls
Comments	With Control Timeout
Connector Type	Screw
Control Signal	Floating, Two Position .
Country of Origin	USA
Country of Origin (subj.	Mexico
Date First Available	July 5, 2012
Depth	2 3/4 in
Electrical Connections	Screw Terminals
Family Series	Johnson Controls Damper.
Feedback	None
For Use With	Dampers and Valves
Gross Weight	0 lbs
Height	2 in
Includes	Anti Rotation Bracket
IP Rating	IP40
Item	Electric Actuator
Item Dimensions LxWxH	4.2 x 3.6 x 5.6 inches
Item model number	M9104-IGA-3S
Item Number	M9104-IGA-3S
Manufacturer	Johnson Controls, Johns.
Manufacturer Part Number	M9104-IGA-3S
Motor Direction	CW or CCW
Mounting	Direct Coupled
Mounting Type	Direct Mount
Net Weight	1 lb
Nominal Supply Voltage	24 VAC
Nominal Timing	60 s
Number of Positions	2
Package Dimensions	4 x 2 x 2 inches; 4 Pou.
Power Consumption	3 VA, 3VA
Product Dimensions	4.2 x 3.6 x 5.6 inches;.
Product Series	M9104
Product with faster shi.	true
Replaces Honeywell Moto.	Mfr. No. ML6161A2009
Rotational Stroke (Deg)	93
Shaft Rotation	By Wiring
Shaft Size	Square 3/8 ", Round 3/8.
Shaft Type	Self-Centering Clamping
Shipping	undefined (Fixed Shippi.
Signal Type	Floating, On/Off
Spring Return	No
Stroke Deg.	90
Temperature Range	-20-60 Degrees Celsius,.
Timing	60 sec
Torque	35 in-lb, 35 in lb
Torque Rating	35 lb-in
Voltage	24 Volts, 24V AC
Width	5 in

All Prices

Img	Seller	Supplier SKU	Min Price	MOQ	In Stock	Lead Time	Brand	Weight	Preferred Tier
	Zoro	G6549925	85.62	1	In Stock	26	Johnson Controls	1.09	85.62 @ 1
	cappusa.com	2194989	88.39	1	In Stock		Johnson Controls		88.39 @ 1
	sustainablesupply.com	C1136710	90.69	1	In Stock		Johnson Controls	1.09	90.69 @ 1
	blackhawksupply.com	M9104-IGA-3S	92.23	1	In Stock		Johnson Controls		92.23 @ 1
	hvacdiscountstore.com	JOH--M9104-IGA-3S	98.07	1	4		JOHNSON CONTROLS		98.07 @ 1
	energycontrol.com	M9104-IGA-3S	99.63	1	In Stock		JOHNSON CONTROLS		99.63 @ 1
	alliedcontrols.com	M9104-IGA-3S	101.75	1	In Stock		Johnson Controls		101.75 @ 1
	gsistore.com	M9104-IGA-3S	102.14	1	6		Johnson Controls		102.14 @ 1
	homeessentialsdirect.com	M9104-IGA-3S	107.47	1	In Stock		Johnson Controls Inc		107.47 @ 1
	furnacepartsource.com	M9104-IGA-3S	108.2	1	4		Johnson Controls		108.2 @ 1
	Galco	M9104-IGA-3S-JHSN	108.7	1	In Stock		Johnson Controls	1.0	108.7 @ 1
	Voomi Supply	M9104-IGA-3S	109.07	1	In Stock		Johnson Controls		109.07 @ 1
	midwestapplianceparts.com	M9104-IGA-3S-JO-P	112.53	1	4		Johnson Controls		112.53 @ 1
	Radwell	M9104-IGA-3S	115.0	1	1		JOHNSON CONTROLS		115.0 @ 1
	industrialstores.com	M9104-IGA-3S	120.83	1	4		Johnson Controls		120.83 @ 1
	National Supply Network	B476266	142.67	1	In Stock		Johnson Controls Inc		142.67 @ 1
	grainger.ca	JHCM9104IGA3S	142.80958856	1	In Stock		JOHNSON CONTROLS	1.09	142.80958856 @ 1
	Raptor Supplies	AD4HEZ	176.2396155	1	In Stock		JOHNSON CONTROLS		176.2396155 @ 1
	uri.com	M9104IGA3S	239.3	1	In Stock		Johnson Controls	0.95	239.3 @ 1
