Leeson 100913.00

B00EPKDL2K

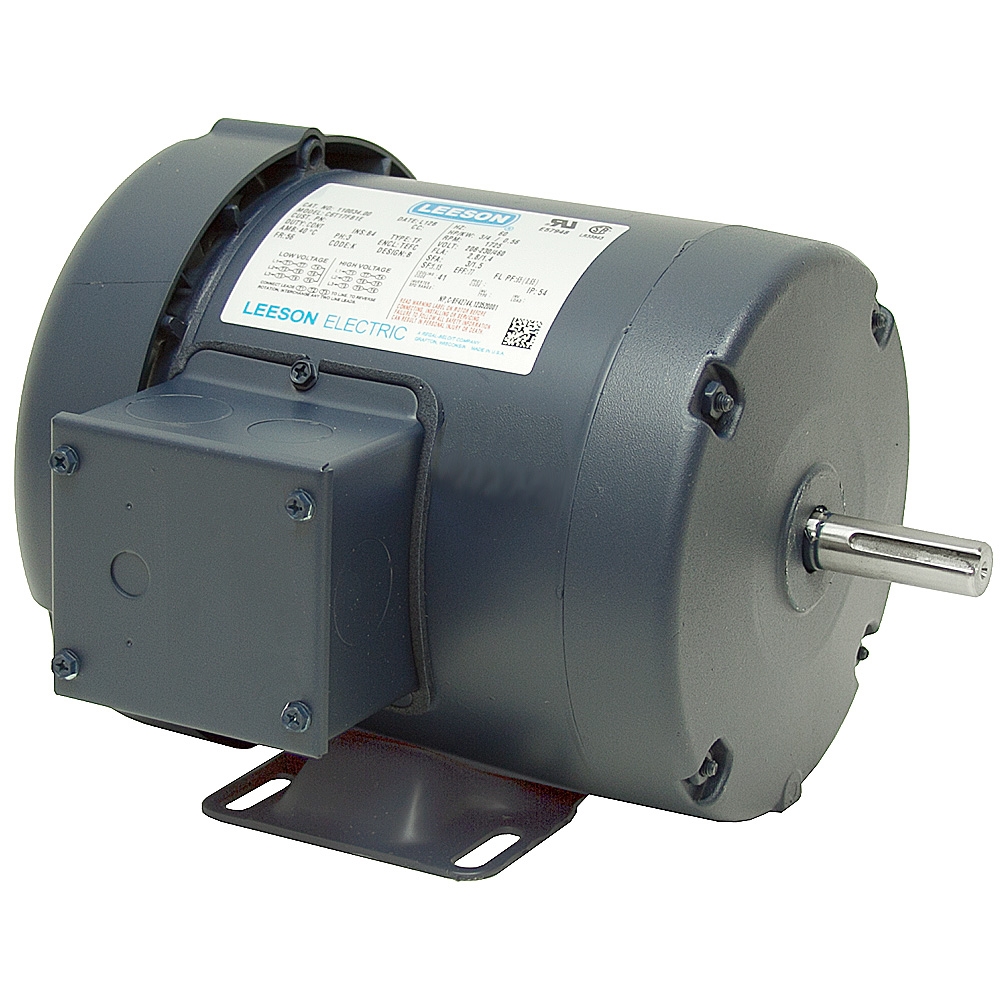

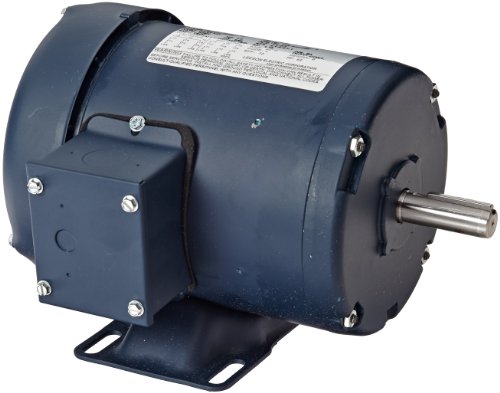

Leeson 100913.00 General Purpose Motor, 3 Phase, S56 Frame, Rigid Mounting, 1/2HP, 1800 RPM, 208-230/460V Voltage, 60Hz Fequency

Leeson 100913.00 General Purpose Motor, 3 Phase, S56 Frame, Rigid Mounting, 1/2HP, 1800 RPM, 208-230/460V Voltage, 60Hz Fequencyzoom

Attributes

Key Value
Alternate Mfr Part Numb.C4T17FH1D
Amperage1.9-2/1 Amps
Amperage Rating2.1 to 2.2/1.1 A
Application TypeCompressor Motors, Fan .
Bearing TypeBall
BearingsBall
Catalog Number100913.00
CategoryElectric Motor
Current Rating1.9 to 2.0 ; 1.0 A
Description:Obsolete, replaced by 0.
Dimensions9.94 in L x 7.85 in W x.
DutyContinuous
Duty CycleContinuous
Efficiency73 %
EnclosureTEFC
Enclosure TypeTotally Enclosed Fan Co.
FrameS56C, 56, 48
Frequency60 Hz
Frequency Rating60 Hz
Horsepower1/2 hp
Horsepower Rating0.50 HP
HP0.50
Insulation ClassClass B
Insulation TypeClass B
Item ConditionFACTORY NEW
ManufacturerLEESON ELECTRIC CORPORA.
MaterialRolled Steel
MFG Part #:100913.00
mountingRigid Base
Mounting TypeRigid, Rigid Base
Number of Speeds1
Phase3, 3 Phase
Power1/2 hp
RotationReversible
RPM1725 rpm, 1800
Service Factor1.15, 1.149
Shaft5/8" diam. x 1-7/8" w/ .
Shaft Size5/8 in Dia
Shpg.24 lbs.
Size8" x 7.41" x 6.62"
Special FeaturesService Factor - 1.15, .
Speed1725 rpm, 1800 RPM
StandardsUL Recognized
Supplier:LEESON ELECTRIC CORPORA.
Supply Voltage208-230/460 VAC
TypeSquirrel Cage Induction.
UPC Code691720005194
UPC:691720005194
Voltage208-230/460 AC
Volts208/230/460

All Prices

Img Seller Supplier SKU Min Price MOQ In Stock Lead Time Brand Weight Preferred Tier
kscdirect.comLEE 100913.0090.31In StockLEESON ELECTRIC CORPORATION90.3 @ 1
us.rs-online.com7223933096.651In StockLeeson96.65 @ 1
thumbzoomsurpluscenter.com10-2710187.651In StockLeeson187.65 @ 1
thumbzoomelectricmotorwholesale.com100913232.01In StockLeeson232.0 @ 1
thumbzoomDealers Electric100913.00267.781In StockLeeson18.0267.78 @ 1
steinerelectric.com501798387.161In StockLEESON387.16 @ 1
thumbzoomRaptor SuppliesAJ2PJW503.82428851In StockLEESON503.8242885 @ 1
