Leeson 192205.00

B00EP3C75O

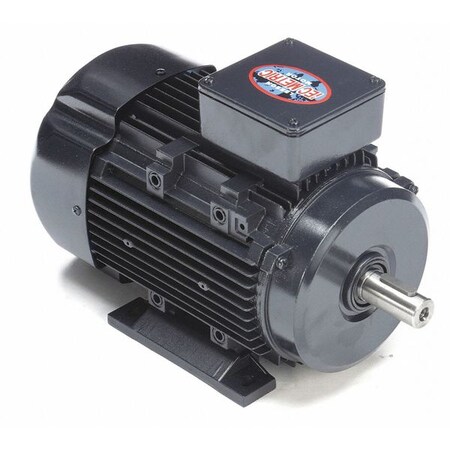

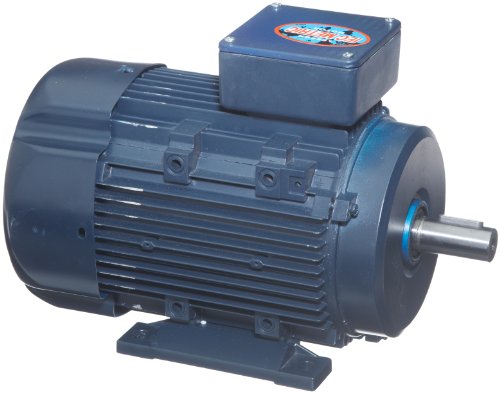

Leeson 192205.00 Rigid Base IEC Metric Motor, 3 Phase, D90L Frame, B3 Mounting, 2HP, 1800 RPM, 230/460V Voltage, 60/50Hz Fequency

Leeson 192205.00 Rigid Base IEC Metric Motor, 3 Phase, D90L Frame, B3 Mounting, 2HP, 1800 RPM, 230/460V Voltage, 60/50Hz Fequencyzoom

Attributes

Key Value
Amperage Rating5.4/2.7 A
Bearing TypeBall
CategoryElectric Motor
CC NumberCC005A
Country of Origin (subj.China

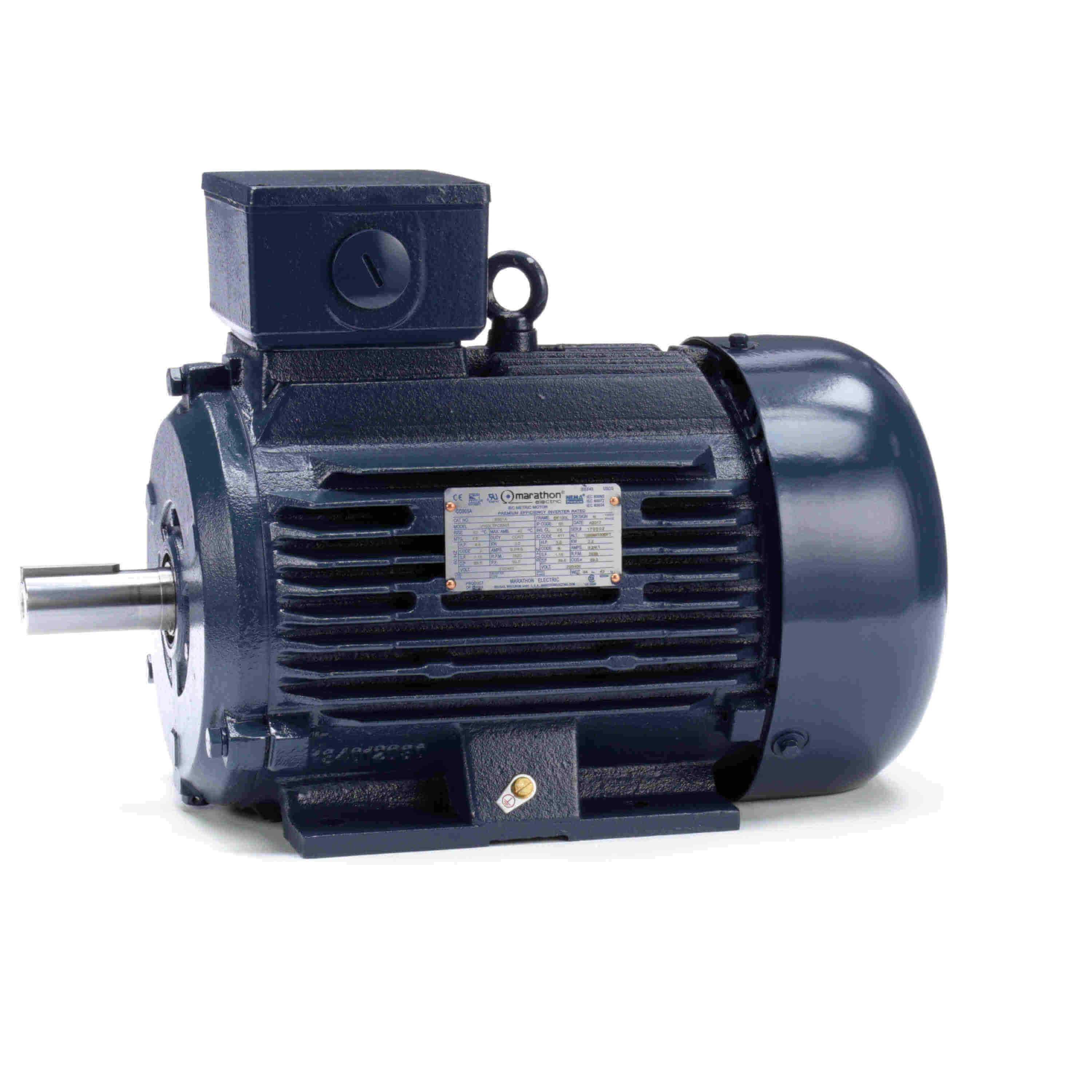

Description:Replaced by 090LT17FH63.
Dimensions13.38 in L
DutyContinuous
Duty CycleContinuous
EnclosureTEFC
Enclosure TypeTotally Enclosed Fan Co.
FrameD90L, 90L
Frame MaterialAluminum
Frequency Rating60 Hz
Full Load Amps5.4/2.7
Full Load Amps @ 50Hz5.4/2.7
Green Certification or .NEMA Premium(R) Rated
Gross Weight44.275 lbs
Horsepower2 hp
HP2
HP @ 50Hz2
Hz60/50
IncludesRepositionable Mounting.
Ins. ClassF
Insulation ClassClass F
Inverter RatedYes
ItemPremium Efficiency Metr.
Item ConditionFACTORY NEW
kW1.49
Length Less Shaft11 7/16 in
ManufacturerLEESON ELECTRIC CORPORA.
MaterialAluminum
Max. Ambient Temp.40 Degrees C
MFG Part #:192205.00
Motor ApplicationGeneral Application
Motor BearingsBall
Motor Design3-Phase
Motor Enclosure DesignTotally Enclosed Fan-Co.
Motor Frame MaterialAluminum
Motor Mounting PositionHorizontal
Motor Mounting TypeRigid Base
Motor Service Factor1.15
Motor Shaft RotationCW/CCW
Motor Thermal ProtectionNone
mountingRigid Base
Mounting TypeB3 Flange/Rigid Base
Nameplate RPM1,745
NEMA DesignB
No. of Speeds1
Nominal Efficiency86.5 %
Number of Speeds1
Overall Length13 3/8 in
Phase3, 3 ph, Three
RotationReversible
RPM1800
RPM @ 50Hz1,745
RPM Range1,701-1,800
Service Factor1.15
Service Factor @ 50Hz1.15
Shaft Dia.24 mm
Shaft Length50 mm
Shaft Size1 in Dia x 1.96 in L
Special FeaturesIEC Metric Motors
Speed1745 rpm
StandardsCE Certified, CSA Certi.
Supplier:LEESON ELECTRIC CORPORA.
UPC:691720246917
Usable @ 200VNo
Usable @ 208VNo
Voltage230/460V AC
Voltage @ 50Hz230/460V AC
Voltage Compatibility200-230/440V AC, 200-23.
Volts230/460
Weight42 lb

All Prices

Img Seller Supplier SKU Min Price MOQ In Stock Lead Time Brand Weight Preferred Tier
thumbzoomGalco192205.00-LEES164.2612Leeson44.275164.26 @ 1
thumbzoomapexindustrialautomation.com192205.00210.591In StockLeeson210.59 @ 1
kscdirect.comLEE 192205.00239.821In StockLEESON ELECTRIC CORPORATION239.82 @ 1
us.rs-online.com72637896253.941In StockLeeson253.94 @ 1
thumbzoomelectricmotorwholesale.com192205313.01In StockLEESON313.0 @ 1
AmazonTPB007ICO6XK342.381In Stock2LEESON342.38 @ 1
thumbzoomZoroG1375227348.881In StockLeeson44.48348.88 @ 1
thumbzoomDealers Electric192205.00412.161In StockLeeson42.0412.16 @ 1
thumbzoomRaptor SuppliesAJ2TTG948.0044341In StockLEESON948.004434 @ 1
