Molex 0351500410

mpn0351500410
brandname: Molex
manufacturername: Molex

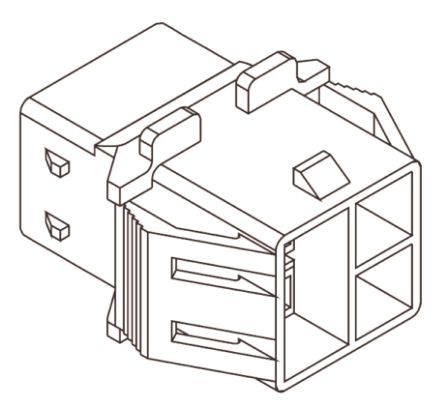

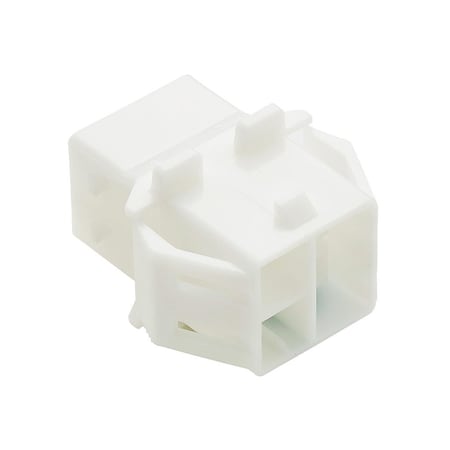

0351500410 Conn Housing PL 4 POS 6.2mm Crimp ST Cable Mount VersaBlade Bag, (100 Items)

Brand: Molex
PartNumber: 0351500410
Model: 0351500410
Manufacturer: Molex
Label: Molex

Attributes

Key	Value
Alternate Mfr Part Numb.	351500410
Alternate Part No.	538-35150-0410
Application	Power, Wire-to-Wire
Base Product Number	035150
Body Orientation	Straight
Brand	Molex
Category	Connectors, Interconnec.
Circuits (maximum)	4
Color	Natural
Color - Resin	Natural
Connector Type	Receptacle
Contact Termination	Crimp
Contact Type	Female Blade Socket, Ma.
CSA	LR19980
Description	CONN HSG PLUG 4POS 6.20.
Detailed Description	4 Position Blade Type P.
Digi-Key Part Number	WM3129-ND
Family Name	VERSABLADE
Fastening Type	Locking Ramp
Features	-
Flammability	94V-0
For Use With	Wire-to-Wire VersaBlade.
Gender	Plug, Male, Receptacle
Housing Gender	Female
Housing Material	PBT, Polyester
Length	26.4mm
Lock to Mating Part	Yes
Manufacturer	Molex
Manufacturer Part No.	35150-0410
Manufacturer Product Nu.	0351500410
Manufacturer Standard L.	34 Weeks
Material - Insulation	Polybutylene Terephthal.
Material - Resin	PBT
Mfr	Molex
Mounting Style	Panel
Mounting Type	Panel Mount, Cable Mount
Note	Contacts Not Included
Number Of Contacts	4
Number of Contacts	4
Number of Positions	4
Number Of Rows	2
Number of Rows	2
Operating Temperature	-40?C ~ 120?C
Package	Bulk
Packaging	Bulk
Panel Mount	Yes
Part # Aliases	0351500410
Pitch	0.244" (6.20mm), 6.2 mm.
Pitch - Mating Interface	6.20mm
Pitch - Termination Int.	6.20mm
Polarized to Mating Part	Yes
Primary Type	Soft Shell
Product Category	Headers & Wire Housings
Product Status	Active
Product Type	Wire Housings
Row Spacing	0.350" (8.90mm)
Series	VersaBlade 35150, 35150.
Special Features	Not Low-Halogen
Stacking Direction	Top to Bottom and Side .
Temperature Range - Ope.	-40? to +120?C
Tradename	VERSABLADE
Type	Plug Housing
UL	E29179
Width	21.2mm

All Prices

Seller	Supplier SKU	Min Price	MOQ	In Stock	Brand	Preferred Tier
RS Delivers	720-5794	0.0876	10	1230	Molex	0.0876 @ 10
Waldom	MOLEX 35150-0410	0.205	300	24274	MOLEX	0.205 @ 300
Onlinecomponents.com	35150-0410	0.208	1	5020	MOLEX / WALDOM	0.208 @ 1
Power and Signal Group	0351500410	0.2335	1500	428	Molex	0.2335 @ 1500
jensentools.com	10159996	0.27	1	370	Molex	0.27 @ 1
Newark	01AH1062	0.361	1	46	MOLEX	0.361 @ 1
us.rs-online.com	70374562	0.45594	12600	370	Molex Incorporated	0.45594 @ 12600
Hotenda	H740376	0.57	1	370	Molex	0.57 @ 1
Digi-Key	2405506	0.61	1	12612	Molex	0.61 @ 1
swatee.com	35150-0410	0.83	1	1499	Molex	0.83 @ 1
Radwell	35150-0410	0.9	750	370	MOLEX	0.9 @ 750
Zoro	G4032759	126.0	1	370	Molex	126.0 @ 1
