Molex / Waldom 70247-2054

mpn0702472054
brandname: Molex
manufacturername: Molex

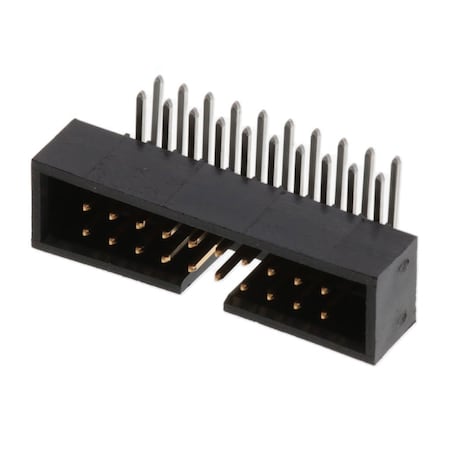

Molex / Waldom 70247-2054 Connector Headers and PCB Receptacles

Molex / Waldom 70247-2054 Connector Headers and PCB Receptacles

zoom

Brand: Molex / Waldom
PartNumber: 70247-2054
PackageQuantity: 1
Manufacturer: Molex / Waldom
Label: Molex / Waldom

Attributes

Key	Value
Application	Signal, Wire-to-Board
Applications	Automotive, General Pur.
Base Product Number	070247
Category	Connectors, Interconnec.
Color	Black
Connector Type	Header
Contact Finish	Gold Plated
Contact Finish - Mating	Gold
Contact Finish - Post	Tin
Contact Finish Thicknes.	5.00?in (0.127?m)
Contact Finish Thicknes.	74.8?in (1.90?m)
Contact Length - Mating	0.240" (6.10mm)
Contact Length - Post	0.120" (3.05mm)
Contact Material	Phosphor Bronze
Contact Plating Thickne.	0.127 ?m
Contact Shape	Square
Contact Type	Male Pin
Current Rating	2.5 A
Current Rating (Amps)	-
Fastening Type	Push-Pull
Features	Keying Slot
Flammability Rating	UL 94V-0
Hole Center to Center	2.54 mm
Ingress Protection	-
Insulation Color	Black
Insulation Height	0.350" (8.89mm)
Insulation Material	Polybutylene Terephthal.
Mated Stacking Heights	-
Material	Polyester
Material Flammability R.	UL94 V-0
Max. Temp.	235?C
Max. Voltage	250V DC
Mfr	Molex
Mounting Type	Through Hole, Right Ang.
Number of Contacts	20
Number of Positions	20
Number of Positions Loa.	All
Number of Rows	2
Operating Temperature	-
Overall Contact Length	-
Package	Tray
Package Quantity	1
Part Status	Active
Pitch - Mating	0.100" (2.54mm)
Row Spacing - Mating	0.100" (2.54mm)
Series	70247, C-Grid 70247
Shrouding	Shrouded - 4 Wall
Standards	CSA Certified; UL E29179
Style	Board to Board or Cable
Sub-Category	PCB Headers
Terminal Finish	Tin Plated
Terminal Type	Through Hole
Termination	Solder
Voltage Rating	-

All Prices

Img	Seller	Supplier SKU	Min Price	MOQ	In Stock	Lead Time	Brand	Weight	Preferred Tier
	Onlinecomponents.com	70247-2054	1.93	20	25		Molex		1.93 @ 25
	Hotenda	H1374062	2.532	1	25		Molex		2.532 @ 25
	Mouser	538-70247-2054	2.72	1	498		Molex		2.72 @ 25
	Newark	78AC1567	2.81	35	25		MOLEX		2.81 @ 25
	Digi-Key	3302084	2.822	5184	25		Molex		2.822 @ 25
	Zoro	G405891859	96.25	35	25		Molex		96.25 @ 35
