Molex 15-91-3060

mpn15-91-3060
brandname: Molex Woodhead/Brad
manufacturername: Molex Woodhead/Brad

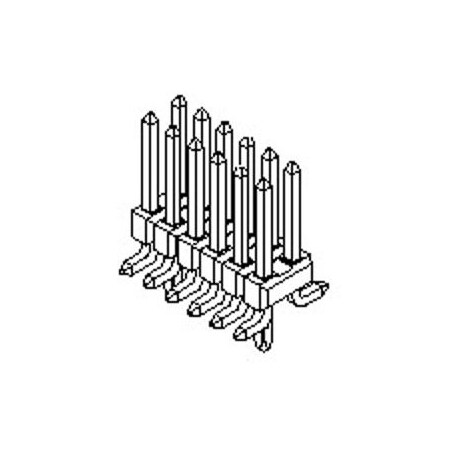

Molex 15-91-3060 (2 pcs) CGrid SMT Bkwy Hdr 30SAu 6Ckt Bulk

Molex 15-91-3060 (2 pcs) CGrid SMT Bkwy Hdr 30SAu 6Ckt Bulk

zoom

Brand: Molex
PartNumber: 15-91-3060
Manufacturer: Molex
Label: Molex

Attributes

Key	Value
Applications	Automotive, General Pur.
Base Product Number	001591
Category	Connectors, Interconnec.
Color	Black
Connector Type	Header, Breakaway
Contact Finish	Gold Plated
Contact Finish - Mating	Gold
Contact Finish - Post	Tin
Contact Finish Thicknes.	30.0?in (0.76?m)
Contact Finish Thicknes.	74.8?in (1.90?m)
Contact Length - Mating	0.240" (6.10mm)
Contact Length - Post	-
Contact Material	Copper Alloy
Contact Plating Thickne.	0.813 ?m
Contact Shape	Square
Contact Type	Male Pin
Current Rating	3 A
Current Rating (Amps)	-
Description	CONN HEADER SMD 6POS 2..
Detailed Description	Connector Header Surfac.
Digi-Key Part Number	WM19443-ND
Fastening Type	Push-Pull
Features	Breakaway, -
Flammability Rating	UL 94V-0
Hole Center to Center	2.54 mm
Ingress Protection	-
Insulation Color	Black
Insulation Height	0.090" (2.29mm)
Insulation Material	Liquid Crystal Polymer .
Manufacturer	Molex
Manufacturer Product Nu.	0015913060
Manufacturer Standard L.	13 Weeks
Mated Stacking Heights	-
Material	High Temperature Thermo.
Material Flammability R.	UL94 V-0
Max. Temp.	260?C
Max. Voltage	250V
Mfr	Molex
Mounting Type	Surface Mount
Number of Contacts	6
Number of Positions	6
Number of Positions Loa.	All
Number of Rows	2
Operating Temperature	-
Overall Contact Length	-
Package	Bulk
Pitch - Mating	0.100" (2.54mm)
Product Status	Active
Row Spacing - Mating	0.100" (2.54mm)
Series	C-Grid 71308
Shrouding	Unshrouded
Standards	CSA Certified; UL E29179
Style	Board to Board or Cable
Terminal Finish	Tin Plated
Terminal Type	Surface Mount
Termination	Solder
Voltage Rating	-

All Prices

Img	Seller	Supplier SKU	Min Price	MOQ	In Stock	Lead Time	Brand	Weight	Preferred Tier
	Onlinecomponents.com	15-91-3060	0.369	1	3551		MOLEX / WALDOM		0.369 @ 1
	Allied Electronics	E5299306	0.41	6000	13		Molex Woodhead/Brad		0.41 @ 6000
	Newark	91M1913	0.732	1	13		MOLEX		0.732 @ 1
	Radwell	15-91-3060	0.9	3000	111		MOLEX		0.9 @ 3000
	Digi-Key	3124234	0.93	1	14461		Molex		0.93 @ 1
	Zoro	G305891973	3600.0	1	In Stock		Molex		3600.0 @ 1
