- mpnLQP15MN9N1B02D
- brandname: Murata Electronics North America
- manufacturername: Murata Electronics North America

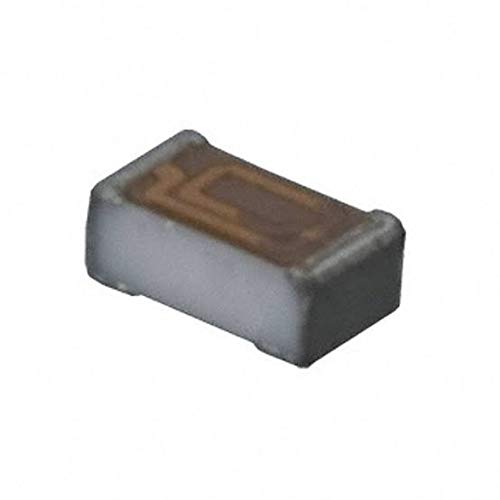

MURATA LQP15MN9N1B02D Inductor New Lot Quantity-250
- Brand: Murata
- PartNumber: LQP15MN9N1B02D
- Model: LQP15MN9N1B02D
- Manufacturer: MURATA
- Label: MURATA
Attributes
| Key | Value |
|---|
| Base Product Number | LQP15MN |
| Brand | Murata |
| Categories | Inductors, Coils, Chok. |
| Category | Inductors, Coils, Chok. |
| Core Material | Ferrite |
| Current - Saturation | - |
| Current - Saturation (I. | - |
| Current Rating (Amps) | 100 mA, 100mA |
| DC Resistance (DCR) | 1.3Ohm Max, 1.3 Ohm Ma. |
| Depth | 0.5mm |
| Dimensions | 1 x 0.5 x 0.35mm |
| Frequency - Self Resona. | 4.5GHz |
| Height | 0.35mm |
| Height - Seated (Max) | 0.018" (0.45mm) |
| Inductance | 9.1nH , 9.1 nH, Induct. |
| Inductance Frequency - . | 500 MHz, 500MHz |
| Inductor Construction | Multilayer |
| Lead Free Status / RoHS. | Lead free / RoHS Compl. |
| Length | 1mm |
| Manufacturer | Murata Electronics Nor. |
| Manufacturer Part Number | LQP15MN9N1B02D |
| Manufacturer Standard L. | 9 Weeks |
| Material - Core | Non-Magnetic |
| Maximum dc Current | 100mA |
| Maximum DC Resistance | 1.3? |
| Maximum Operating Tempe. | +85?C |
| Maximum Self Resonant F. | 4.5GHz |
| Mfr | Murata Electronics |
| Minimum Operating Tempe. | -40?C |
| Minimum Quality Factor | 13 |
| Moisture Sensitivity Le. | 1 (Unlimited) |
| Mounting Type | Surface Mount |
| Operating Temperature | -40?C ~ 85?C |
| Package | Tape & Reel (TR) |
| Package / Case | 0402 (1005 Metric) |
| Package/Case | 0402 (1005M) |
| Packaging | Reel |
| Product Status | Last Time Buy |
| Q @ Freq | 13 @ 500MHz |
| Ratings | - |
| Series | LQP15M, LQP15 |
| Shielding | Unshielded |
| Size / Dimension | 0.039" L x 0.020" W (1.. |
| Stock | Stock |
| Supplier Device Package | 0402 (1005 Metric) |
| Tolerance | Tolerance, ?0.1nH |
| Type | Thick Film |
All Prices
| Img | Seller | Supplier SKU | Min Price | MOQ | In Stock | Lead Time | Brand | Weight | Preferred Tier |
|---|
 | RS Delivers | 785-9180 | 0.0312 | 25 | 6525 | | Murata | | 0.0312 @ 250 |
| Future Electronics | C017429980 | 0.05016 | 10000 | 250 | | Murata | | 0.05016 @ 10000 |
| Hotenda | H2154552 | 0.05344 | 1 | 250 | | Murata Electronics | | 0.05344 @ 250 |
| Digi-Key | 3846974 | 0.05611 | 10000 | 250 | | Murata Electronics | | 0.05611 @ 10000 |
