- mpnR48-5D10-12
- brandname: NTE Electronics, Inc.
- manufacturername: NTE Electronics, Inc.

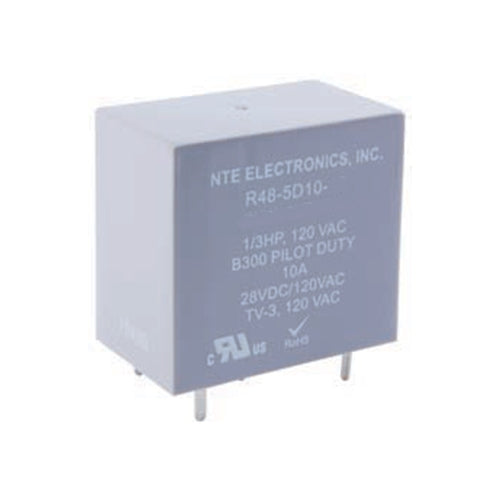

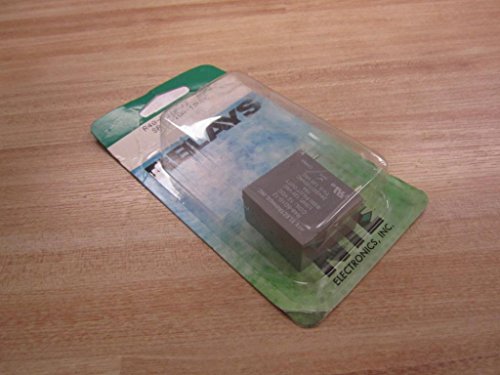

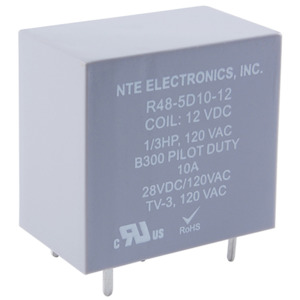

"NTE Electronics, Inc. R48-5D10-12 Relay; E-Mech; Gen Purp; SPDT; Cur-Rtg 10A; Ctrl-V 12DC; Vol-Rtg 28DC; PCB Mnt; Solder"
- Brand: NTE Electronics
- PartNumber: R48-5D10-12
- PackageQuantity: 1
- Manufacturer: NTE Electronics
- Label: NTE Electronics
Attributes
| Key | Value |
|---|
| Bifurcated Contact | No |
| Category | Relays |
| Coil Voltage | SPDT (1 Form C), 12 VDC |
| Contact Current Rating | 10 A |
| Contact Form | PC Pin, SPDT |
| Contact Material | Silver Gold Plated, Sil. |
| Contact Voltage Rating | 28 VDC |
| Contacts | SPDT |
| Control Voltage | 12 |
| Current Rating | 10 A |
| Dielectric Rating | 1500 V (RMS) (Contact t. |
| Dimensions | 1.225 L x 0.759 W x 1.1. |
| Diode | No |
| Enclosure | Sealed Plastic |
| Family Series | NTE Electronics Relays,. |
| Function | General Purpose |
| Gross Weight | 0.092 lbs |
| Item Number | R48-5D10-12 |
| Manufacturer | NTE Electronics |
| Manufacturer Part Number | R48-5D10-12 |
| Max Current | 10 A |
| Maximum Operating Tempe. | 85 C |
| Mechanical Latch | No |
| Mfr | NTE Electronics, Inc |
| Minimum Operating Tempe. | -55 ?C |
| Mounting | PCB, Thru-Hole |
| Mounting Type | Through Hole |
| Net Weight | 0.092 lbs |
| Nominal Coil Voltage | 12 VDC |
| Number of Electrical Co. | 5 |
| Number of Pins | 5 |
| Operating Temperature | General Purpose |
| Package | Active |
| Part Number | R48-5D10-12 |
| Part Status | 12VDC |
| Primary Type | Power Relays |
| Product Header | R48 Series Miniature Ge. |
| Product Series | R48 |
| Product Type | Relays |
| Published Coil Voltage | 12 VDC |
| Push-to-Test | No |
| Rating @ 120 VAC | 10 A |
| Rating @ 24/28/30 VDC | 10 A |
| Relay Type | Electromechanical, 10 A |
| Safety Guided | No |
| Series | Bulk, R48 Series |
| Standards | UL, CSA |
| Status Indicator | No |
| Termination | PCB, PCB Pin |
| Termination Style | -55?C ~ 85?C |
| UPC Code | 768249026471 |
| Voltage Rating | 28 V |
All Prices
| Img | Seller | Supplier SKU | Min Price | MOQ | In Stock | Lead Time | Brand | Weight | Preferred Tier |
|---|
 | arcade-electronics.com | NTE-R48-5D10-12 | 7.55 | 1 | 10 | | NTE Electronics-Relays | | 7.55 @ 10 |
| MCM Electronics | R48-5D10-12 | 7.55 | 1 | 10 | | NTE Electronics | | 7.55 @ 10 |
| Onlinecomponents.com | R48-5D10-12 | 8.18 | 1 | 76 | | NTE ELECTRONICS | | 8.18 @ 10 |
 | Galco | R48-5D10-12-NTE | 8.69 | 1 | 10 | | NTE Electronics | 0.092 | 8.69 @ 10 |
 | Digi-Key | 2368-R48-5D10-12-ND | 8.94 | 1 | 10 | | NTE Electronics, Inc | | 8.94 @ 10 |
 | jensentools.com | 10128818 | 8.94 | 1 | 10 | | NTE Electronics | | 8.94 @ 10 |
 | marvac.com | 76638 | 8.95 | 1 | 10 | | Nte | | 8.95 @ 10 |
| sourceresearch.com | R48-5D10-12 | 9.83 | 2 | 10 | | NTE | | 9.83 @ 10 |
| us.rs-online.com | 70011913 | 9.87 | 1 | 10 | | NTE Electronics, Inc. | | 9.87 @ 10 |
 | Carlton Bates Company | 40100699608 | 9.91 | 1 | 10 | | NTE ELECTRONICS | | 9.91 @ 10 |
 | EIO | R48-5D10-12 | 10.02 | 1 | 10 | | NTE Electronics | | 10.02 @ 10 |
| AmazonTP | B00DEDEE2A | 19.77 | 1 | 10 | 1 | NTE Electronics | | 19.77 @ 10 |
| Hawk Electronics | R48-5D10-12 | 38.0 | 1 | 10 | | NTE | | 38.0 @ 10 |
