- mpnJN224-318-C
- brandname: Panduit
- manufacturername: Panduit

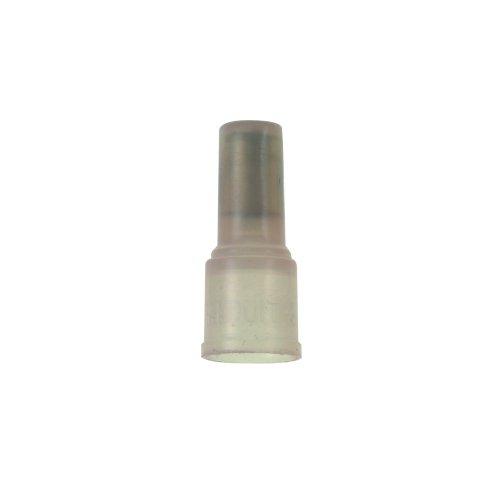

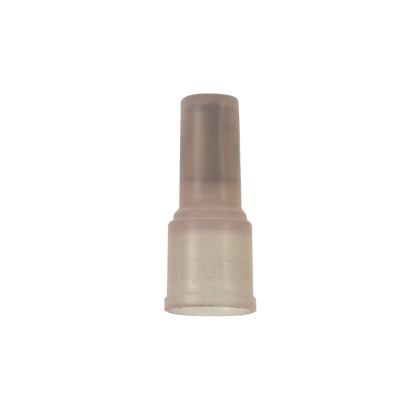

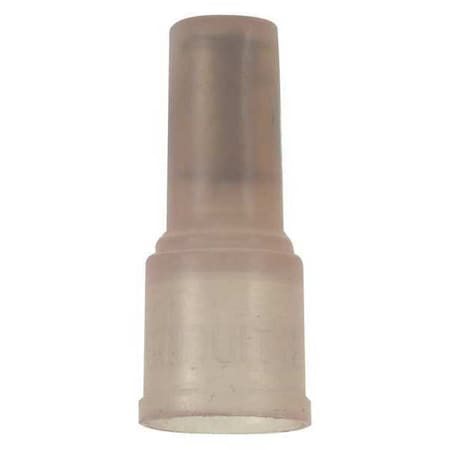

Panduit JN224-318-C Wire Joint, Nylon Insulated, (2) #24 - (2) #16 Wire Range, Red, 808 CMA Min Range, 5160CMA Max Range, 7/16" Wire Strip Length, 0.79" Overall Length (Pack of 100)


- Brand: Panduit
- PartNumber: JN224-318-C
- Model: JN224-318-C
- Color: Red
- PackageQuantity: 1
- Binding: Misc.
- Manufacturer: Panduit
- Label: Panduit
Attributes
Key | Value |
---|
Allowable Gauge Range | 24 - 20 |
Angle | Straight |
Approvals | CSA, UL |
Base Product Number | JN224 |
Brand | Pan-Term? |
Category | Connectors, Interconnec. |
Color | Red |
Color Family | Red |
Contact Material | Brass |
Contact Plating | Tin |
Country of Origin | MX - Mexico |
Country of Origin (subj. | Mexico |
Description | CONN SPLICE 14-24 AWG C. |
Detailed Description | Terminal Butt Splice, C. |
Digi-Key Part Number | 298-14568-ND |
ECCN | EAR99 |
Family Series | Panduit Terminals, Pan-. |
Features | - |
Finish | Tin-Plated |
Gross Weight | 0.0015 lbs |
Insulated | Insulated |
Insulation | Fully Insulated |
Insulation Diameter | 0.27 " |
Insulation Material | Nylon |
Insulation Type | Nylon |
Item | Wire Joint,Insulated,24. |
Item Number | JN224-318-C |
Manufacturer | Panduit Corp, Panduit |
Manufacturer Part Number | JN224-318-C |
Manufacturer Product Nu. | JN224-318-C |
Manufacturer Standard L. | 38 Weeks |
Material | Copper, Brass, Nylon, B. |
Max Temp | 221 ?F |
Mfr | Panduit Corp |
Net Weight | 0.0015 lbs |
Number of Wire Entries | 1 |
Overall Length | 0.79 " |
Overall Width | 0.1 " |
Package | Bulk |
Package Quantity | 100 |
Packaging | 100 per Package |
Plating Material | Tin |
Product Series | Pan-Term Splices |
Product Status | Active |
Rated Voltage | 600V |
RoHS Compliant | Yes |
Series | Pan-Term JN Series, Pan. |
Special Features | Large Barrel |
Stripping Length | 7?16 |
Terminal Material | Brass |
Terminal Type | Butt Splice, Closed End. |
Termination | Crimp |
Type | Insulated, Wire Joint, . |
UNSPSC | 39121409 |
UPC Code | 074983839988 |
Use With | CT-1550, CT-1551, CT-25. |
Volts | 600 V |
Volts AC | 600 |
Wire Gauge | 14-24 AWG |
Wire Size | 16-24 AWG, (2)24-(3)18 . |
Wire Size (AWG) | 18 AWG, 19 AWG, 20 AWG,. |
Wire Strip Length | 0.438 " |
All Prices
Img | Seller | Supplier SKU | Min Price | MOQ | In Stock | Lead Time | Brand | Weight | Preferred Tier |
---|
  | NEP Electronics | JN224-318-C | 0.2 | 20 | 100 | | Panduit | | 0.2 @ 100 |
  | French Gerleman | PANDJN224318C | 0.43 | 100 | 100 | | Panduit | | 0.43 @ 100 |
  | cbtcompany.com | JN224-318-C | 0.45 | 1 | 100 | | PANDUIT | | 0.45 @ 100 |
  | Galco | JN224-318-C-PNDT | 0.46 | 500 | 100 | | Panduit | 0.0015 | 0.46 @ 500 |
  | Platt.com | 0167582 | 0.53 | 1 | 1400 | | Panduit | | 0.53 @ 100 |
| Airline Hydraulics | PANDUIT JN224-318-C | 0.54 | 1 | 100 | | Panduit Corp | | 0.54 @ 100 |
| Onlinecomponents.com | JN224-318-C | 0.59 | 100 | 552 | | Panduit | | 0.59 @ 100 |
| us.rs-online.com | 72259826 | 0.59169 | 500 | 100 | | Panduit | | 0.59169 @ 500 |
  | Newark | 14AC2024 | 0.6 | 1 | 485 | | PANDUIT | | 0.6 @ 100 |
  | Digi-Key | 317632 | 0.6056 | 1 | 102 | | Panduit Corp | | 0.6056 @ 100 |
  | alldataresource.com | 236279 | 1.46 | 1 | 100 | | Panduit | | 1.46 @ 100 |
  | electricalparts.com | JN224-318-C | 41.3616 | 1 | 100 | | Panduit | | 41.3616 @ 100 |
  | Carlton Bates Company | 07498383998 | 43.0 | 1 | 100 | | PANDUIT | | 43.0 @ 100 |
  | Zoro | G0770590 | 50.2 | 1 | 100 | | Panduit | 0.17 | 50.2 @ 100 |
| Graybar | 88198031 | 50.6464 | 1 | 100 | | Panduit | | 50.6464 @ 100 |
  | turtle.com | PAN JN224-318-C | 53.13 | 1 | 100 | | Panduit | | 53.13 @ 100 |
| steinerelectric.com | 6999 | 63.59 | 1 | 100 | | Panduit | | 63.59 @ 100 |
  | gordonelectricsupply.com | JN224-318-C | 237.45 | 1 | 100 | 12 | PANDUIT | | 237.45 @ 100 |
