- mpnPLT2S-C76
- brandname: Panduit
- manufacturername: Panduit

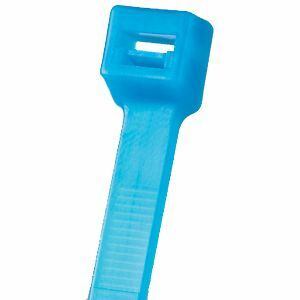

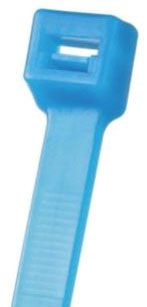

Panduit PLT2S-C76 Pan-Ty Locking Cable Tie, Standard, 7.4-Inch Length, Tefzel, Aqua (100-Pack)
- Brand: Panduit
- PartNumber: PLT2S-C76
- Model: PLT2S-C76
- Size: 7.4-Inch Length
- PackageQuantity: 1
- Binding: Misc.
- Manufacturer: Panduit Corp.
- Label: Panduit Corp.
Attributes
| Key | Value |
|---|
| Actual Length | 7.4 in |
| Alternate Part No. | 644-PLT2S-C76 |
| Application | Radiation Resistant |
| Approximate Length | 7" |
| Approximate Length - Ca. | 7" |
| Base Product Number | PLT2S |
| Body Width (In.) | 0.19 |
| Body Width (mm) | 4.8 |
| Brand | Panduit |
| Brand Name | Panduit |
| Bundle Diameter | 1.88 in., 1.88" (47.75m. |
| Catalog Number | PLT2S-C76 |
| Category | Cables, Wires - Managem. |
| Color | Blue, Aqua, Aqua, Aqua . |
| Color - Cable Tie | Aqua |
| Color Family | Blue |
| Colour | light-blue |
| Country of Origin | CR - Costa Rica, Costa . |
| Country of Origin (subj. | Unknown |
| Depth | 7.40", 7.40 |
| Description | CBL TIE LOCK BLUE/AQUA . |
| Design - Cable Tie | Standard |
| Detailed Description | Standard, Locking Blue,. |
| Digi-Key Part Number | 298-10509-ND |
| Duty Rating | Standard |
| ECCN | EAR99 |
| Family / Style | Pan-Ty? |
| Family Series | Panduit Cable Ties, Pan. |
| Features | Flame Retardant, Radiat. |
| Flammability rating | UL94V-0 |
| Gross Weight | 0.62 lbs |
| GTIN | 00074983548248 |
| Heat Stabilized | No |
| Height (in) | 0.055 " |
| Item | cable tie |
| Item Number | PLT2S-C76 |
| Item Type | Premium Cable Tie |
| Length | 7.400 in, 188 mm, 7.4, . |
| Length (In) | 7.4 " |
| Length - Actual | 0.617' (187.96mm, 7.40") |
| Length - Approximate | 7.5" |
| Length - Cable Tie | 7.40" |
| Length UOM | Inch |
| Lock Mechanism | Locking |
| Loop diameter max | 48mm |
| Made in USA | No |
| Manufacturer | Panduit Corp, Panduit |
| Manufacturer Part No. | PLT2S-C76 |
| Manufacturer Part Number | PLT2S-C76 |
| Manufacturer Product Nu. | PLT2S-C76 |
| Manufacturer series | Pan-Ty? PLT |
| Manufacturer Standard L. | 2 Weeks |
| Manufacturer Website Ad. | http://www.panduit.com |
| Material | Tefzel, Ethylenterafluo. |
| Max Bundle Diam. (in) | 1.88 " |
| Max. Bundle Dia. | 1.88" |
| Maximum Bundle Diameter | 48 mm |
| Maximum Bundle Diameter. | 1.88 |
| Maximum Bundle Diameter. | 48 |
| Mfr | Panduit Corp |
| Minimum Bundle Diameter. | 0.13 |
| Minimum Bundle Diameter. | 3.3 |
| Mounting Type | Free Hanging (In-Line) |
| Net Weight | 0 lbs |
| Nominal Length | 7 1/2 in, 7.5 " |
| Nominal Max. Bundle Dia. | 2 in |
| Operating temperature | -60...170?C |
| Overall Length (In.) | 7.4 |
| Overall Length (mm) | 188 |
| Package | Bulk |
| Packaged Quantity | 100 |
| Plenum Rated | No |
| Product | Cable Ties |
| Product Category | Cable Ties |
| Product Line | Pan-Ty |
| Product Name | Pan-Ty TEFZEL Cable Tie |
| Product Series | Pan-Ty Cable Ties |
| Product Status | Active |
| Product Thickness | 0.052 in |
| Product Type | cable tie |
| Resistance to | temperature |
| Series | Pan-Ty, Pan-Ty? PLT |
| Shelf Life | - |
| Shelf Life Start | - |
| Size | Standard |
| Special Features | Indoor/Outdoor |
| Standard | CSA Certified, UL Recog. |
| Storage/Refrigeration T. | - |
| Sub Brand | Pan-Ty? |
| Tensile Strength | 23 kg, 50 lbs (22.68 kg. |
| Tensile Strength (lb) | 50 lbs |
| Thickness | 0.055 |
| Thickness (in) | 0.055 " |
| Tie material | Tefzel |
| Tie strength | 222N |
| Tie width | 4.8mm |
| Type | General Purpose, Standa. |
| Type of cable accessori. | cable tie |
| Unit Weight | 217.724 g |
| UNSPSC | 39121703 |
| UPC | 074983548248 |
| Weather Resistant | No |
| Weight Capacity | 50 lbs |
| Width | 4.8 mm, 0.19", 0.19, 0.. |
| Width (in) | 0.19 " |
| Width - Cable Tie | 0.19" |
| Wire/Cable Tie Type | Standard, Locking |
All Prices
| Img | Seller | Supplier SKU | Min Price | MOQ | In Stock | Lead Time | Brand | Weight | Preferred Tier |
|---|
| Onlinecomponents.com | PLT2S-C76 | 1.75 | 1 | 297 | | PANDUIT | | 1.75 @ 25 |
| Arrow | PLT2S-C76 | 1.818 | 1 | 555 | | Panduit | | 1.818 @ 25 |
 | Galco | PLT2S-C76-PNDT | 1.97 | 100 | 25 | | Panduit | 0.62 | 1.97 @ 100 |
| Future Electronics | 4014827 | 2.088 | 100 | 100 | | Panduit | | 2.088 @ 100 |
 | French Gerleman | PANDPLT2SC76 | 2.22 | 100 | 25 | | Panduit | | 2.22 @ 100 |
 | crescentelectric.com | 215842 | 2.24 | 1 | 25 | | Panduit | | 2.24 @ 25 |
| TME | PLT2S-C76 | 2.27 | 100 | 25 | | PANDUIT | | 2.27 @ 100 |
 | Digi-Key | 451323 | 2.2918 | 100 | 3900 | | Panduit Corp | | 2.2918 @ 100 |
 | Platt.com | 0126538 | 2.3 | 1 | 25 | | Panduit | | 2.3 @ 25 |
| Hotenda | H114401 | 2.4196 | 100 | 900 | | Panduit | | 2.4196 @ 100 |
| us.rs-online.com | 72260123 | 2.58 | 100 | 25 | | Panduit | | 2.58 @ 100 |
 | swatee.com | PLT2S-C76 | 4.07 | 1 | 1043 | | Panduit | | 4.07 @ 25 |
 | Zoro | G2337623 | 158.99 | 1 | 57 | | Panduit | 0.5 | 158.99 @ 25 |
| CDW | 366558 | 181.99 | 1 | 25 | | Panduit | | 181.99 @ 25 |
 | alldataresource.com | 348467 | 194.82 | 1 | 25 | | Panduit | | 194.82 @ 25 |
 | Carlton Bates Company | 07498354824 | 196.0 | 1 | 25 | | PANDUIT | | 196.0 @ 25 |
 | gordonelectricsupply.com | PLT2S-C76 | 207.0 | 1 | 25 | 12 | PANDUIT | | 207.0 @ 25 |
 | Newark | 94F2845 | 210.41 | 1 | 25 | | PANDUIT | | 210.41 @ 25 |
 | jensentools.com | 10016938 | 226.71 | 1 | 25 | | Panduit | | 226.71 @ 25 |
| Graybar | 88199652 | 230.9888 | 100 | 25 | | Panduit | | 230.9888 @ 100 |
 | turtle.com | PAN PLT2S-C76 | 231.49 | 1 | 25 | | Panduit | | 231.49 @ 25 |
| steinerelectric.com | 6366 | 274.59 | 1 | 25 | | Panduit | | 274.59 @ 25 |
 | PCNation | 6WU597 | 289.03 | 1 | 25 | | PANDUIT | 1.0 | 289.03 @ 25 |
 | Raptor Supplies | AB9FBQ | 354.4792875 | 1 | 25 | | PANDUIT | | 354.4792875 @ 25 |
