Ruland SPC-14-10-F

B0060LW4CU

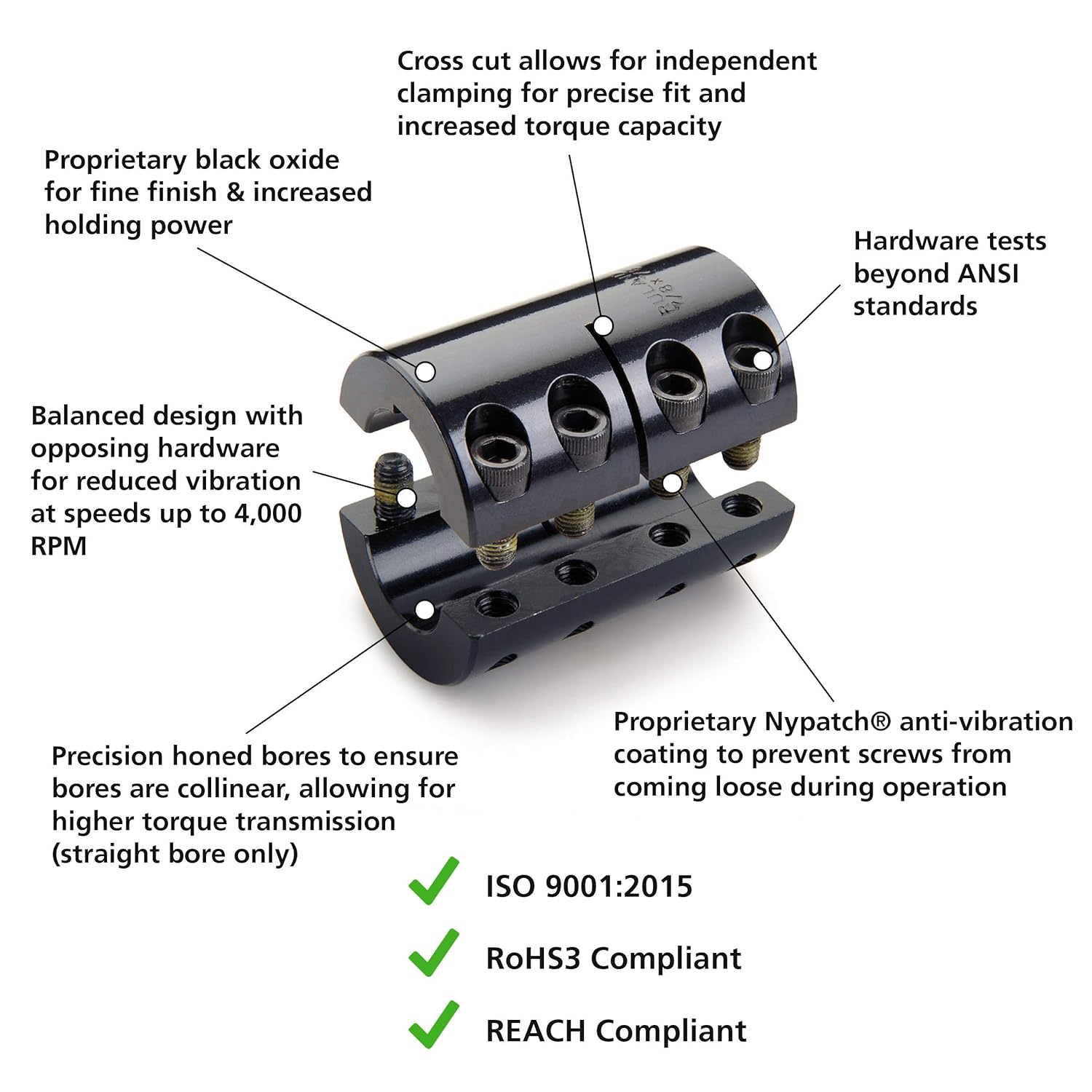

Ruland SPC-14-10-F Two-Piece Clamping Rigid Coupling with Keyway, Black Oxide Steel, 7/8" Bore A Diameter, 5/8" Bore B Diameter, 1-5/8" OD, 2-1/2" Length, 3/16" x 3/16" Keyway Width

Ruland SPC-14-10-F Two-Piece Clamping Rigid Coupling with Keyway, Black Oxide Steel, 7/8" Bore A Diameter, 5/8" Bore B Diameter, 1-5/8" OD, 2-1/2" Length, 3/16" x 3/16" Keyway Widthzoom

Attributes

Key Value
ApplicationFor Applications where .
B1 Max Shaft Penetration1.250 in
B2 Max Shaft Penetration1.250 in
Balanced DesignYes
Bore (B1)0.8750 in
Bore Dia.5/8 in x 7/8 in
Bore Tolerance+0.0020 in / +0.0005 in
CategoryHardware, Fasteners, Ac.
Clearance Dia.1.932 in
Clearance Dia. (In.)1.932
Clearance Diameter (C) .1.932 in
Country of OriginUSA
Country of Origin (subj.United States
Description7/8"X5/8" STEEL RIGID C.
DesignFour Vibration Resistan.
Digi-Key Part Number3188-SPC-14-10-F-ND
FinishBlack Oxide
Finish SpecificationHot Process Black Oxide.
Forged Clamp Screw1/4-28
Full Bearing Support Re.No
Hex Wrench Size3/16 in
ItemRigid Shaft Coupling
Item - Rigid Shaft Coup.Rigid Shaft Coupling
Keyway (K1)3/16 in
Keyway (K2)3/16 in
Keyway Width3/16 in
Keyway Width (In.)3/16 x 3/16
Length (L)2 1/2 in
Machined FromBar Stock
ManufacturerRuland Manufacturing
Manufacturer Product Nu.SPC-14-10-F
MaterialBlack Oxide Steel
Material - CouplingsSteel
Material Specification1215 Carbon Steel Bar
Max. Torque3,600 in-lb
Max. Torque (In.-Lbs.)3600
Maximum Speed4,000 RPM
MfrRuland Manufacturing
Moment of Inertia0.4143 lb-in
Note 1Performance ratings are.
Number of Screws8 ea
Nypatch? Anti-Vibration.Yes
Outer Diameter (OD)1 5/8 in
Outside Dia.1 5/8 in
Overall Length2 1/2 in
PackageBag
Product StatusActive
ProvidesExtra Holding Power for.
Rated Torque3600 in-lb
Recommended Gap0.094 in
Recommended Shaft Toler.+0.0000 in / -0.0005 in
Screw FinishBlack Oxide
Screw Location (R)0.600 in
Screw MaterialAlloy Steel with
Screw Size1/4"-28
Screw Size (In.)1/4-28
Seating Torque170 lb-in
Series-
Shaft Locking Type - Co.2 Piece Clamp
Small Bore (B2)0.6250 in
Specifications1.625" (41.28mm) Outer .
StandardsREACH Compliant, RoHS2 .
System of MeasurementInch
Tariff Code8483.60.8000
Temperature-40?F to 350?F (-40?C t.
TypeRigid Coupling, Two Pie.
UNSPC31163009
UPC634529022344
UPC Code63452902234
Weight (lbs)1.027200
With Keyway / Without K.With Keyway
Zero-Backlash?Yes

All Prices

Img Seller Supplier SKU Min Price MOQ In Stock Lead Time Brand Weight Preferred Tier
thumbzoomZoroG2491632131.01In StockRuland1.05131.0 @ 1
thumbzoomcbtcompany.comSPC-14-10-F136.991In StockRULAND MANUFACTURING136.99 @ 1
us.rs-online.com72339358144.5715Ruland Manufacturing144.57 @ 1
thumbzoomRulandSPC-14-10-F157.181In StockRuland1.0272157.18 @ 1
thumbzoomAmazonB0060LW4CU158.691In StockRuland158.69 @ 1
thumbzoomsustainablesupply.comC1671936190.551In StockRuland Manufacturing1.05190.55 @ 1
motionindustries.com02079248221.11In StockRuland Manufacturing Co Inc221.1 @ 1
thumbzoomDigi-Key13609877236.6616Ruland Manufacturing236.66 @ 1
thumbzoomRaptor SuppliesAB9AET293.3714161In StockRULAND MANUFACTURING293.371416 @ 1
