Schneider Electric LC1F800MW

B00CONDUNU

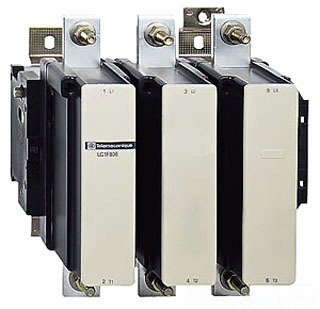

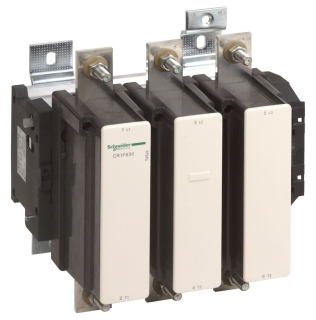

SCHNEIDER ELECTRIC Contactor 575-Vac 800-Amp Iec Plus Options LC1F800MW Cable End Markers Letter P 1 Card = 200 Pcs

SCHNEIDER ELECTRIC Contactor 575-Vac 800-Amp Iec Plus Options LC1F800MW Cable End Markers Letter P 1 Card = 200 Pcszoom

Attributes

Key Value
[Icw] Rated Short-Time .5500 A 40 ?C - 10 s || .
[Ith] Conventional Free.1000 A 40 ?C
[Uc] Control Circuit Vo.220...230 V DC || 220...
[Ui] Rated Insulation V.1000 V IEC 60947-4-1 ||.
[Uimp] Rated Impulse Wi.8 kV
Ambient Air Temperature.-5-55 ?C
Ambient Air Temperature.-60-80 ?C
ApplicationMOTOR CONTROL-RESISTIVE.
Average Impedance0.12 mOhm - Ith 1000 A .
BrandSchneider Electric
California Proposition .Lead and lead compounds.
Catalog NumberLC1F800MW
China Rohs RegulationProduct out of China Ro.
Circularity ProfileENVEOLI1505009EN
Coil Power Rating12-12 W 20 A?C
Coil Voltage220 V DC STANDARD-230 V.
Compatibility CodeLC1F
ConnectionCONTROL CIRCUIT SCREW C.
Connections - Terminalscontrol circuit screw c.
Contact Configuration3 NO
Contact Current Rating800 A
Contact Rating1000 A 40 A?C
Contactor Applicationmotor control || resist.
Contactor Coil Voltage220 V DC standard || 23.
Control Circuit TypeDC standard || AC 40....
Control Circuit Voltage.operational 0.85...1.1 .
Control Voltage220 V
Country of OriginCzech Republic
Depth255 mm
Device Short NameLC1F
Environmental DisclosureENVPEP1505009EN
Eu Rohs DirectiveCompliant
Heat Dissipation12-12 W
Height304 mm
Hold-In Power Consumpti.12-12 W 20 ?C
Inrush Power In W1900-1900 W 20 ?C)
Ip Degree Of ProtectionIP20 front face with sh.
Item TypeCONTACTOR,DIRECT ON-LIN.
Made in USANo
ManufacturerSchneider Electric
Maximum Operating Rate600 cyc/h 55 ?C
Mercury FreeYes
Motor Power Kw450 kW 1000 V AC 50/60 .
Motor Starter Typedirect on-line contactor
Mountingplate
Mounting Supportplate
Mounting TypePanel Mount
Net Weight18.75 kg
Number of Poles3
Operating Altitude9842.52 ft (3000 m) wit.
Operating Temperature-5-55 A?C,-5-55 A?C
Operating Time40...50 ms opening || 6.
Overvoltage CategoryIII
Permissible Ambient Air.-5-55 ?C
Pole Contact Composition3 NO
Poles Description3P
Power Range250-500 kW 200-240 V 3 .
Product CertificationsABS || UL || CCC || CSA.
Product Or Component Ty.contactor
Protective TreatmentTH
RangeTeSys
Range Of ProductTeSys F
Rated Breaking Capacity6400 A IEC 60947-4-1
Reach RegulationReference contains Subs.
Rohs Exemption Informat.Yes
SeriesTeSys F Series
Size255 MM,304 MM,309 MM
Special Features1000 A AT
StandardABS-UL-CCC-CSA-RMROS-CB.
StandardsEN 60947-4-1 ; IEC 6094.
Sub BrandTeSys F
Sustainable Offer StatusGreen Premium product
Tightening Torquecontrol circuit 1.2 N.m.
UPC785901756606
UPC Code785901756606
Utilisation CategoryAC-4 || AC-1 || AC-3
Warranty18 months
Warranty DescriptionContractual Warranty:18.
Wattage120 W AC-1-77 W AC-3
WeeeThe product must be dis.
Width309 mm

All Prices

Img Seller Supplier SKU Min Price MOQ In Stock Lead Time Brand Weight Preferred Tier
us.rs-online.com707472076634.491In StockSchneider Electric6634.49 @ 1
thumbzoomgordonelectricsupply.comLC1F800MW6860.01In Stock10SQUARE D6860.0 @ 1
thumbzoomRadwellLC1F800MW7150.01In StockSCHNEIDER ELECTRIC SQUARE D7150.0 @ 1
thumbzoommayerelectric.comSQDLC1F800MW7809.481In StockSCHNEIDER ELECTRIC41.257809.48 @ 1
thumbzoomcrescentelectric.com5518517908.981In StockSchneider Electric7908.98 @ 1
