Schneider Electric XB5AD912R4K7

B073V9L22C

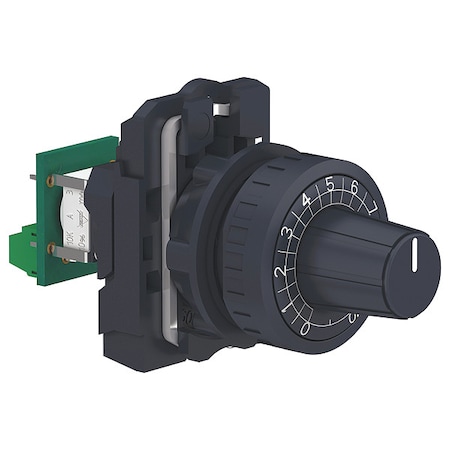

XB5AD912R4K7?-?Rotary Potentiometer, 4.7 kohm, 1 W, 10%, Harmony XB5 Series, 1 Turns, Linear

XB5AD912R4K7?-?Rotary Potentiometer, 4.7 kohm, 1 W, 10%, Harmony XB5 Series, 1 Turns, Linearzoom

Attributes

Key Value
(Switching-Indication) .cermet, Plastic
(Switching-Indication) .IP 66
(Switching-Indication) .Standard
(Switching-Indication) .round
(Switching-Indication) .22 mm
(Switching-Indication) .UL 531
[Us] Rated Supply Volta.<= 30 V AC || <= 42 V DC
Actuatorknurled knob, with whit.
Actuator Diameter0.236" (6.00mm)
Actuator Length1.187" (30.15mm)
Actuator Typeround
Adjustment TypeTop Adjustment
Ambient Air Temperature.-40-70?C
Ambient Air Temperature.-40-70?C
Application? 6 mm shaft
Bezel Materialdark grey plastic
BrandSchneider Electric
Built in SwitchNone
Bushing Thread-
Cad Overall Depth82 mm
Cad Overall Height42 mm
Cad Overall Width30 mm
Catalog NumberXB5AD912R4K7
CategoryPotentiometers, Variabl.
Colour Of Markingwhite
ComponentPotentiometer Complete .
Country of Origin00 - Unknown, France
DescriptionHARMONY XB5, COMPLETE P.
Detailed Description4.7k Ohm 1 Gang Linear .
Device Short NameXB5
Digi-Key Part Number4008-XB5AD912R4K7-ND
ECCNEAR99
Electrical Shock Protec.class II IEC 60536
EnclosureNEMA 13-NEMA 4X
Features-
ItemPotentiometer
Item TypePotentiometer
Made in USANo
Main GroupPotentiometer
ManufacturerSchneider Electric
Manufacturer Product Nu.XB5AD912R4K7
Manufacturer Standard L.3 Weeks
MaterialCermet;Dark grey plasti.
Max. Voltage30V AC, 42V DC
MfrSchneider Electric
Mounting Diameter22 mm
Mounting TypeThrough Hole
NEMA Rating13, 4X
Number of Gangs1
Ohmic Value4700 Ohm
Ohms4,700
Operating Temperature-40?158? Degrees F (-40.
Operator Profileknurled knob, with whit.
PackageBox
Power (Watts)1W
Primary TypePotentiometers
Product StatusActive
Rated Power In W1 W 70?C
Resistance (Ohms)4.7k
Resistive Materialcermet
Rotation-
SeriesXB5
Shape Of Signaling Unit.round
Size22 mm, 0.87
Size - BodyRectangular - 1.634" x .
StandardBV;CSA;UL Listed;IK03 I.
StandardsUL 508 || CSA C22.2 No .
Sub BrandXB5
TaperLinear
Temperature Coefficient-
Termination StylePC Pins
Tolerance-
UNSPSC39122216
UPC785901536291
UPC Code785901536291
Wattage1 W 70 A Degrees C
Watts1 W

All Prices

Img Seller Supplier SKU Min Price MOQ In Stock Lead Time Brand Weight Preferred Tier
gordonelectricsupply.comXB5AD912R4K748.481In Stock10SQD48.48 @ 1
thumbzoomZoroG019520649.491In StockSchneider Electric0.1349.49 @ 1
thumbzoomTMEXB5AD912R4K749.8117SCHNEIDER ELECTRIC49.81 @ 1
thumbzoomcrescentelectric.com72387354.971In StockSchneider Electric54.97 @ 1
thumbzoomDigi-Key1661315055.491In StockSchneider Electric55.49 @ 1
standardelectricsupply.com235933855.72115Schneider Electric55.72 @ 1
rspsupply.comSCHNEIDER XB5AD912R4K755.941In StockSchneider Electric55.94 @ 1
Graybar2586170057.75841In StockSquare D (Schneider Electric)57.7584 @ 1
Mouser996-XB5AD912R4K767.8615Schneider Electric67.86 @ 1
us.rs-online.com7095971269.24111Schneider Electric69.24 @ 1
thumbzoomNewark06AC379774.151In StockSCHNEIDER ELECTRIC74.15 @ 1
RS Delivers125-4410105.781In StockSchneider Electric105.78 @ 1
