SKF 61817-2RZ

B007VHAJFQ

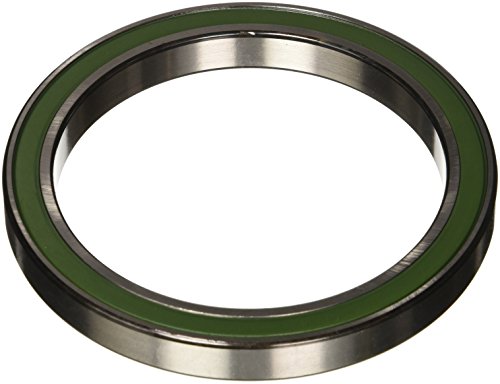

SKF 61817-2RZ Radial Bearing, Single Row, Deep Groove Design, ABEC 1 Precision, Double Sealed, Non-Contact, Normal Clearance, Steel Cage, 85mm Bore, 110mm OD, 13mm Width

SKF 61817-2RZ Radial Bearing, Single Row, Deep Groove Design, ABEC 1 Precision, Double Sealed, Non-Contact, Normal Clearance, Steel Cage, 85mm Bore, 110mm OD, 13mm Widthzoom

Attributes

Key Value
Bearing TypeDeep Groove Ball
Bore3.346 Inch | 85 Millime.
Bore TypeCylindrical
bore type:Round
CageSheet metal
Cage MaterialSteel
cage material:Steel
Category - BDISingle Row Ball Bearing
Closure TypeDouble Sealed
closure type:Double Sealed
dynamic load capacity:19.5 kN
EAN7316577100467
Enclosure2 Seals
Enclosure TypeNon-Contact Seal
fillet radius:1 mm
finish/coating:Uncoated
Harmonized Tariff Code8482.10.50.68
I.D.3 1/3 in
Inch - MetricMetric
Inner Diameter85 mm
Internal ClearanceC0-Medium, CN
internal clearance:C0
Internal Special Featur.No
Keyword StringBall
Long DescriptionBearing, Ball, Single R.
Manufacturer Item Number61817 2RZ
Manufacturer NameSKF
MaterialBearing steel
Maximum Capacity / Fill.No
maximum rpm:6000 RPM
Minimum Buy QuantityN/A
NounBearing
Number of RowsSingle
O.D. (in)4 1/3
operating temperature r.-40 to +210
Outer Diameter110 mm
Outer Race Width0.512 Inch | 13 Millime.
outer ring width:13 mm
Outside Diameter4.331 Inch | 110 Millim.
Overall Width13 mm
Precision ClassABEC 1 | ISO P0
precision rating:Not Rated
Product Group - BDIB00308
Rolling ElementBall Bearing
row type & fill slot:Single Row Non-Fill Slot
Series618 Series
series:61
Snap RingNo
static load capacity:20.8 kN
Static Load Rating16.59 kN
UNSPSC31171504
UPC Code7316577100467
Weight / Kilogram0.299
Weight / LBS0.66

All Prices

Img Seller Supplier SKU Min Price MOQ In Stock Lead Time Brand Weight Preferred Tier
thumbzoomMRO Supply326342423.591In StockSKF Bearing423.59 @ 1
thumbzoomBDI Express1420922430.952276911In StockSKF0.6578430.95227691 @ 1
thumbzoommotionindustries.com00143225516.211In StockSKF516.21 @ 1
us.rs-online.com73220002548.591In StockSKF Bearings548.59 @ 1
