Square D QO342MQ200RB

B0078S5F1Q

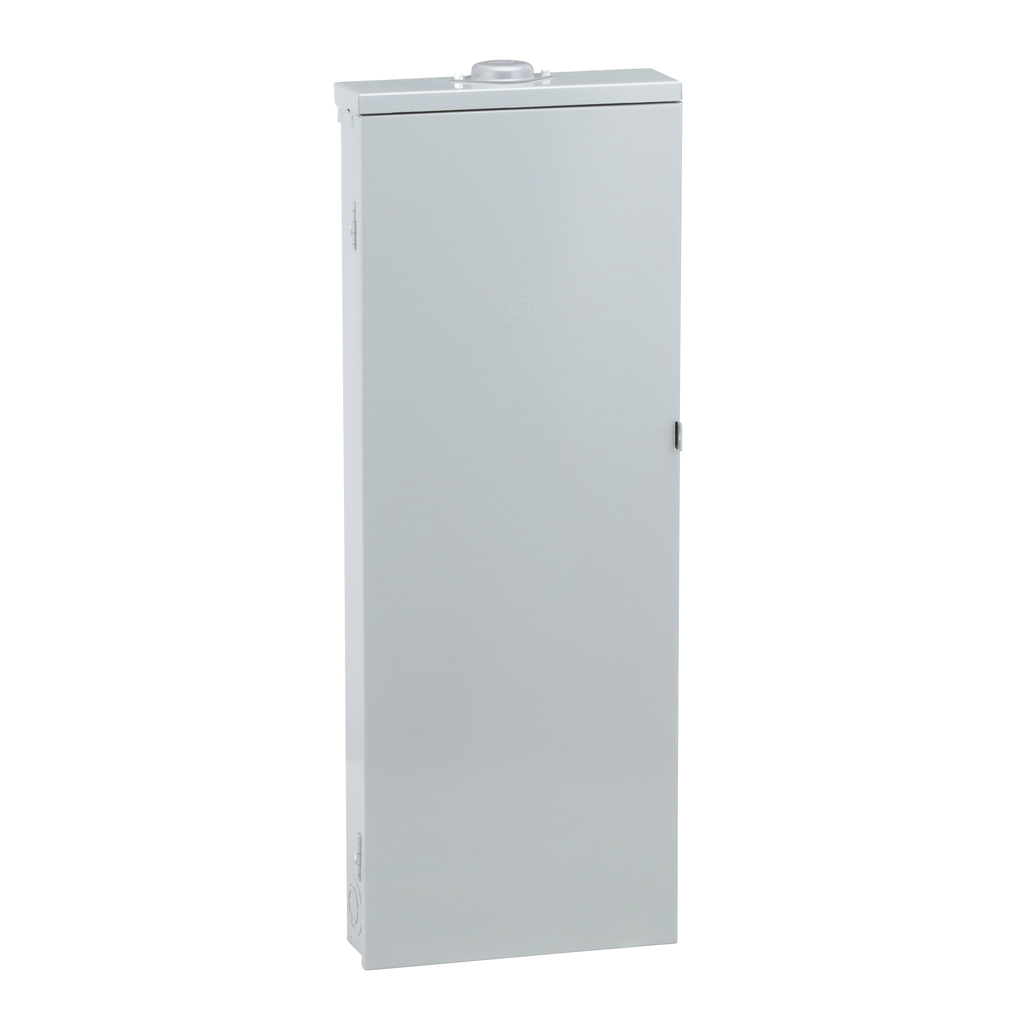

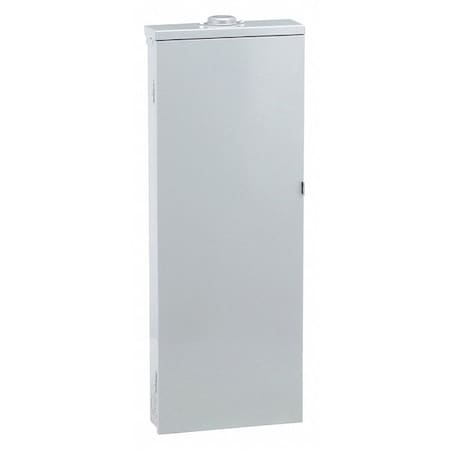

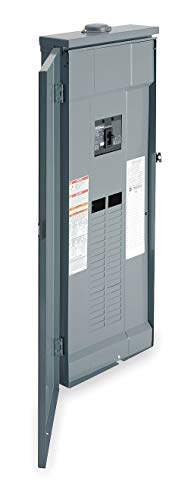

Load Center, CB, 200A, 208Y/120VAC, 3Ph

Load Center, CB, 200A, 208Y/120VAC, 3Phzoom

Attributes

Key Value
[Ue] Rated Operational .208Y/120 V AC || 240/12.
Ambient Air Temperature.-5 ?C || 40 ?C
Amperage Rating200, 200, 200 A
Amps200 A
ApplicationDESIGNED TO MEET RESIDE.
Awg GaugeAWG 4...300 kcmil alumi.
AWG RangeAWG 4...300 kcmil Alumi.
Box Number14R
BrandSquare D
Breaker FeatureMain Breaker
Breaker MountingBolt-On
Bus MaterialTin Plated Copper
Cable SizeAWG 4...300 kcmil alumi.
California Proposition .Lead and lead compounds.
Catalog NumberQO342MQ200RB
China Rohs RegulationPro-active China RoHS d.
Circuit Breaker TypeQO
ColorGray, baked enamel Gray
Color FamilyGray
ConfigurationMain Breaker
Country of OriginUnited States, US - Uni.
Cover Typesurface cover
Current Stock3
Depth4 1/2 in
Device Compositiongrounding bar (ordered .
Dimensions14.76 in W x 39.37 in H
ECCNEAR99
Electrical Connectionlugs
EnclosureBaked enamel Gray;Welde.
Enclosure Box Size14R, NEMA 14R
Enclosure MaterialGalvanized Steel, welde.
Enclosure NEMA Rating3R
Enclosure Surface FinishEnamel
Enclosure Typeweatherproof enclosure,.
Environmental DisclosureENVPEP2101006
Eu Rohs DirectiveCompliant
GTIN00785901290636
Gtin00785901290636
Height39.38 in, 1000 mm
Housing materialSteel
International ShippingNo
Interrupt Rating25, 25 kA, 25 kA
ItemLoad Center
Item TypeLoad Center
Lead TimeExpected to ship in 1-2.
Line Rated Current200 A
Load Center TypeMain Breaker
Made in USAYes
Main Circuit Breaker or.Convertible, Main Circu.
Main TypeMain Breaker
ManufacturerSchneider Electric
Materialtin plated copper busbar
Max. No. of Tandem Brea.0
Max. Operating Temp.104 Degrees F
Max. Single Pole Circui.42
Max. Tandem Circuits0
Mercury FreeYes
Mounting typeSurface/Plug-On
Mounting TypeSurface
MpnQO342MQ200RB
Nema Degree Of Protecti.NEMA 3R outdoor
Nema RatingNema 3R
No. of Circuits42
No. of Spaces42
No. of Wires3-wire || 4-wire
Number Of Circuits42
Number of Circuits42
Number of Poles42
Number of Spaces42
Number Of Spaces42
Number Of Tandem Circui.0
Phase3, 3 phase
Product CertificationsUL Listed
Product Or Component Ty.Load Center
Range Of ProductQO
Rated Current200A
Reach Free Of SvhcYes
Reach RegulationFree of Substances of V.
Recommended Ground Bar .1D371
Recommended Surface Cov.Included
Rohs Exemption Informat.Yes
SeriesQO
Short Circuit Current R.25kA
Short-Circuit Current25 kA
SKUZO-G3154995
Special FeaturesMercury Free, tin plate.
StandardUL Listed
StandardsRoHS Compliant, UL List.
Sub BrandQO
SubCategoryElectrical
Surface Finishbaked enamel Gray
Sustainable Offer StatusGreen Premium product
Toxic Heavy Metal FreeYes
Type3-Phase Convertible
UNSPSC39121101
Upc785901290636
UPC785901290636
Voltage208, 208Y/120/240V AC
Voltage Rating208Y/120 V AC;240/120 V.
Warranty18 months
Warranty DescriptionContractual Warranty:18.
Width14.77 in, 375 mm
Wire SizeAWG 4...300 kcmil alumi.
Wiring Configuration3-wire || 4-wire, 4-Wir.

All Prices

Img Seller Supplier SKU Min Price MOQ In Stock Lead Time Brand Weight Preferred Tier
thumbzoomsuperbreakers.comQO342MQ200RB985.01In StockSquare D985.0 @ 1
thumbzoomsustainablesupply.comC11799211365.291In StockSquare D49.01365.29 @ 1
AmazonTPB0078S5F1Q1515.381In Stock2Square D1515.38 @ 1
thumbzoomRadwellQO342MQ200RB1650.01In StockSCHNEIDER ELECTRIC SQUARE D1650.0 @ 1
thumbzoomZoroG31549951750.991In StockSquare D49.01750.99 @ 1
thumbzoommayerelectric.comSQDQO342MQ200RB2051.541In StockSQUARE D2051.54 @ 1
thumbzoomsimsupply.comZO-G31549952072.1213Square D2072.12 @ 1
thumbzoomstandardelectricsupply.com22247562102.991In StockSquare D (Schneider Electric)2102.99 @ 1
thumbzoommostelectric.comQO342MQ200RB2109.0312SQUARE D/TELEMECANIQUE2109.03 @ 1
thumbzoomgordonelectricsupply.comQO342MQ200RB2160.01In Stock10SQUARE D2160.0 @ 1
Newark89H57952245.631In StockSQUARE D BY SCHNEIDER ELECTRIC2245.63 @ 1
thumbzoomcrescentelectric.com1888142528.161In StockSquare D2528.16 @ 1
us.rs-online.com721324502530.671In StockSquare D2530.67 @ 1
steinerelectric.com2734932711.81In StockSquare D?2711.8 @ 1
Graybar220573195010.196811Square D (Schneider Electric)5010.1968 @ 1
