TE Connectivity 322375

B00KSDEGSQ

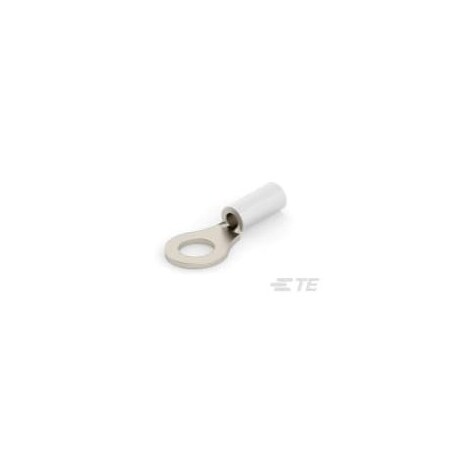

TE Connectivity Part Number 322375

TE Connectivity Part Number 322375zoom

Attributes

Key Value
Barrel Inside Dia.0.173 in
Barrel TypeClosed Barrel
Base Product Number3223
CategoryConnectors, Interconnec.
Color-
Contact FinishNickel
Contact MaterialCopper
Contact Plating MaterialCopper, Nickel
DescriptionCONN RING CIRC 14-16AWG.
Detailed DescriptionRing Terminal Connector.
Digi-Key Part NumberA27409-ND
FeaturesSerrated Termination, W.
Heavy DutyNo
InsulatedNo
InsulationNon-Insulated
Insulation Dia0.12 to 0.17 in
Insulation Diameter0.120" ~ 0.170" (3.05mm.
Insulation TypeNon-Insulated
ItemRing Terminal
Length - Overall0.811" (20.60mm)
ManufacturerTE Connectivity AMP Con.
Manufacturer Product Nu.322375
Manufacturer Standard L.31 Weeks
Material - Insulation-
Max. Temp.650 Degrees F
MfrTE Connectivity AMP Con.
Mounting TypeFree Hanging (In-Line)
Number of Holes1
Operating Temperature R.343??C?[?649??F?]
Overall Length0.811 in, 20.6?mm?[?.81.
PackageBulk
Package Quantity1
Packaging MethodLoose Piece
Plating MaterialCopper, Nickel
Product StatusActive
SealableNo
SeamStandard, Closed Barrel
SeriesDiamond Grip, Strato-Th.
Stud Diameter5?mm?[?.197?in?]
Stud Size10, #10
Stud/Tab Size10 Stud
Support StyleInsulation Support
TerminalRing Tongue
Terminal AngleStraight
Terminal OrientationOffset, Straight, Offset
Terminal TypeRing Tongue, Circular
TerminationCrimp
Thickness0.031" (0.79mm)
Tongue Thickness.79?mm?[?.031?in?]
Width - Outer Edges0.343" (8.71mm)
Wire Gauge14-16 AWG
Wire Insulation Diameter3.048 ? 4.318?mm?[?.12 .
Wire Insulation Diamete.4.318?mm?[?.17?in?]
Wire Insulation SupportWith
Wire Range16 to 14 AWG
Wire Size1.04 ? 2.62, 16 ? 14, 2.
Wire TypeStranded, Regular Wire
Wire/Cable TypeRegular Wire

All Prices

Img Seller Supplier SKU Min Price MOQ In Stock Lead Time Brand Weight Preferred Tier
TE Connectivity3223751.2039219857TE Connectivity (TE)1.20392 @ 500
HotendaH16565221.277741500TE Connectivity AMP Connectors1.27774 @ 500
WaldomTE CONNECTIVITY AMP BRAND 3223751.4640500TE CONNECTIVITY/AMP BRAND1.46 @ 500
thumbzoomNewark50F33222.051500AMP - TE CONNECTIVITY2.05 @ 500
Onlinecomponents.com3223752.05104187TE Connectivity2.05 @ 500
Mouser571-3223752.081508TE Connectivity2.08 @ 500
thumbzoomDigi-Key2927382.0830414213TE Connectivity AMP Connectors2.08304 @ 500
us.rs-online.com700422512.551000500TE Connectivity2.55 @ 1000
thumbzoomZoroG00101795086.01500Te Connectivity86.0 @ 500
