TE Connectivity 320552

B00MMYWK7S

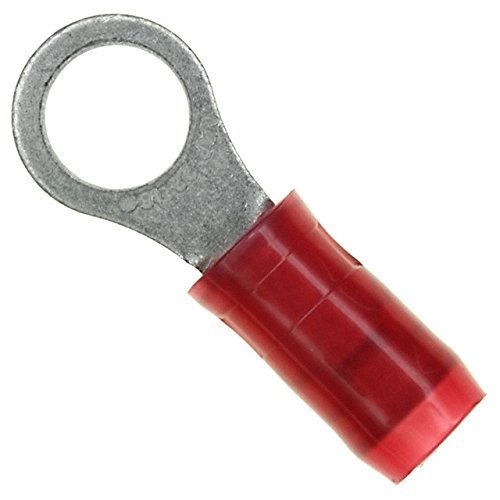

TE CONNECTIVITY / AMP 320552 TERMINAL, RING TONGUE, #10, CRIMP, RED (5 pieces)

TE CONNECTIVITY / AMP 320552 TERMINAL, RING TONGUE, #10, CRIMP, RED (5 pieces)zoom

Attributes

Key Value
AngleStraight
Barrel TypeClosed Barrel
Base Product Number3205
CategoryConnectors, Interconnec.
ColorRed
Contact FinishTin
Contact MaterialCopper
Contact PlatingTin
Country of Origin (subj.United States
DescriptionCONN RING CIRC 16-22AWG.
Detailed DescriptionRing Terminal Connector.
Digi-Key Part NumberA27243-ND
FeaturesSerrated Termination
Government QualifiedNo
Heavy DutyNo
InsulatedYes
InsulationInsulated
Insulation Diameter0.080" ~ 0.125" (2.03mm.
Insulation TypeNylon
Length - Overall0.797" (20.24mm)
ManufacturerTE Connectivity AMP Con.
Manufacturer Product Nu.320552
Manufacturer Standard L.34 Weeks
Material - InsulationPolyamide (PA), Nylon
MfrTE Connectivity AMP Con.
Mounting TypeFree Hanging (In-Line)
Number of Holes1
Operating Temperature R.105??C?[?221??F?]
Overall Length0.797 ", 20.24?mm?[?.79.
Overall Width0.281 "
PackageBulk
Packaging MethodLoose Piece
Packaging Quantity1000
Plating MaterialCopper, Tin
Product StatusActive
SealableNo
SeriesAMP PIDG Series, PIDG
Shape DescriptionRING-041
Special FeaturesClosed Barrel
Stud Diameter5?mm?[?.197?in?]
Stud Size10, M5 (#10)
Stud/Tab Size10 Stud
Support StyleNon - Insulation Support
TerminalRing Tongue
Terminal AngleStraight
Terminal OrientationStraight
Terminal TypeCircular
TerminationCrimp
Thickness0.031" (0.79mm)
Tongue Thickness.79?mm?[?.031?in?]
TypeRing Tongue
Voltage (Max)300
Weight per Piece.775
Width - Outer Edges0.281" (7.14mm)
Wire Gauge16-22 AWG
Wire Insulation Diameter2.03 ? 3.18?mm?[?.08 ? .
Wire Insulation Diamete.3.18?mm?[?.125?in?]
Wire Insulation SupportWith
Wire Size16-22 AWG, 509 ? 3260, .
Wire/Cable TypeRegular Wire

All Prices

Img Seller Supplier SKU Min Price MOQ In Stock Lead Time Brand Weight Preferred Tier
Avnet3205520.131000897TE Connectivity0.13 @ 1000
Future Electronics27052750.159615752TE Connectivity0.1596 @ 100
thumbzoomCarlton Bates Company741149075430.171100TE CONNECTIVITY0.17 @ 100
HotendaH16567540.21891100TE Connectivity AMP Connectors0.2189 @ 100
thumbzoomNewark66H69490.23512842AMP - TE CONNECTIVITY0.235 @ 100
thumbzoomZoroG1009759770.2436100Te Connectivity0.24 @ 100
thumbzoomPeerless Electronics3205520.251188TE CONNECTIVITY (AMP)0.25 @ 100
thumbzoomDigi-Key2992970.250319000TE Connectivity AMP Connectors0.2503 @ 100
RS Delivers680-56060.32161350TE Connectivity0.3216 @ 100
us.rs-online.com700850690.3506114114TE Connectivity0.35061 @ 100
