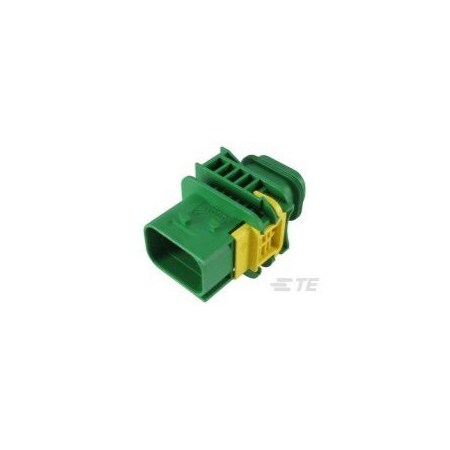

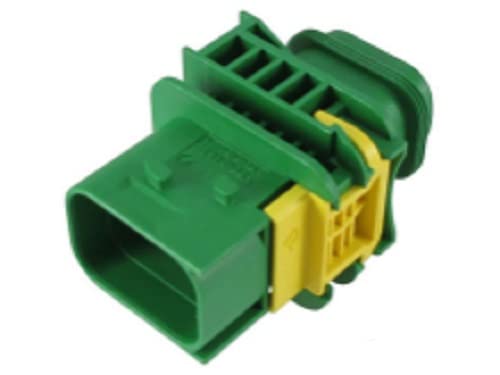

Crimp Supply 3-1564544-1

mpn3-1564544-1
brandname: TE Connectivity AMP Connectors
manufacturername: TE Connectivity AMP Connectors

Deutsch - 3-1564544-1-3-1564544-1 - (Pack of 1)

Brand: Crimp Supply
PartNumber: 3-1564544-1
PackageQuantity: 1
Manufacturer: Deutsch
Label: Deutsch

Attributes

Key	Value
Base Product Number	1564544
Body Material	PBT GF
Cable Exit Angle	180?, 90?
Category	Connectors, Interconnec.
Centerline (Pitch)&thin.	9?mm?[?.354?in?]
Circuit Application	Signal
Color	Green
Connector Position Assu.	No
Connector Style	Housing for male termin.
Connector System	Wire-to-Wire
Connector Type	Plug
Contact Termination	Crimp
Contact Type	Tab
Degree of Protection	IP67
Description	CONN PLUG HSG 2POS 9.00.
Detailed Description	2 Rectangular Connector.
Digi-Key Part Number	3-1564544-1-ND
Fastening Type	Slide-On
Features	Terminal Position Assur.
Flammability Rating	UL 94 V-0
Height	1.0629 in
Height?:</span> .	27?mm?[?1.0629?in?]
Hole Center to Center	9 mm
Hybrid Connector	No
Insulation Material	Polybutylene Terephthal.
Length	32.6 mm
Length?:</span> .	32.6?mm?[?1.2834?in?]
Manufacturer	TE Connectivity AMP Con.
Manufacturer Product Nu.	3-1564544-1
Manufacturer Standard L.	31 Weeks
Material	Glass-Filled PBT
Mating Tab Width&thinsp.	5.8?mm?[?.228?in?]
Max. Temp.	140?C
Mfr	TE Connectivity AMP Con.
Mounting Feature	Without
Mounting Type	Panel Mount
Nominal Voltage Archite.	12, 24, 42, 60
Note	Contacts Not Included
Number of Contacts	2
Number of Positions	2
Number of Rows	1
Operating Temperature	-40?C ~ 140?C
Operating Temperature R.	-40 ? 140??C?[?-40 ? 28.
Operating Voltage	60
Package	Bulk
Package Quantity	1
Packaging Method	Carton
Packaging Quantity	320
Pitch	0.354" (9.00mm)
Polarized	Yes
Primary Locking Feature	On the Terminal
Product Status	Active
Row Spacing	-
Sealable	Yes
Series	Heavy Duty Sealed Conne.
Serviceable	Yes
Strain Relief	Add By Accessory
Terminal Position Assur.	Yes
UL Flammability Rating	UL 94V-0
Width	1.9921 in
Width?:</span> .	50.6?mm?[?1.9921?in?]

All Prices

Seller	Supplier SKU	Min Price	MOQ	In Stock	Brand	Preferred Tier
Waldom	TE CONNECTIVITY AMP BRAND 3-1564544-1	1.0	55	2605	TE CONNECTIVITY/AMP BRAND	1.0 @ 1280
TE Connectivity	3-1564544-1	1.02	1	1280	TE Connectivity (TE)	1.02 @ 1280
Mouser	571-3-1564544-1	1.19	1	2108	TE Connectivity	1.19 @ 1280
Verical	3-1564544-1	1.19	27	1280	TE Connectivity	1.19 @ 1280
Newark	98X9992	1.32	2560	1280	TE CONNECTIVITY	1.32 @ 2560
Digi-Key	5428298	1.389375	55	2605	TE Connectivity AMP Connectors	1.389375 @ 1280
Zoro	G000956403	81.95	1	1280	Te Connectivity	81.95 @ 1280
