- mpnUN12T2GC
- brandname: US Motors
- manufacturername: US Motors

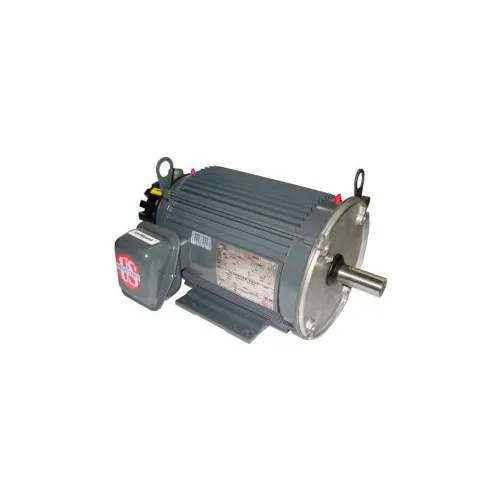

U.S. Motors US Motors ACCU-Torq Vector Duty, 0.5 HP, 3-Phase, 1750 RPM Motor, UN12T2GC
- Brand: U.S. Motors
- PartNumber: UN12T2GC
- PackageQuantity: 1
- Manufacturer: U.S. Motors
- Label: U.S. Motors
Attributes
| Key | Value |
|---|
| Composition | Rolled Steel |
| Construction | Rolled Steel |
| Drive End Flange Type | C-Face |
| Enclosure | Totally Enclosed Non-Ve. |
| Estimated Weight | 20.90 |
| Family Series | US Motors Motors |
| FL Amps | 0.6 |
| FL Efficiency | 84 |
| Frame | 56C, 56 |
| Frequency | 60 Hz |
| Gross Weight | 45 lbs |
| Hertz | 60 |
| Horsepower | 1/2 hp |
| HP | 0.5, 1/2 |
| Hz | 60 |
| Ins. Class | F |
| Item | Motor,3PH,1/2HP,1800,57. |
| Item Number | UN12T2GC |
| Kilowatts | 0.4 kW |
| Length Less Shaft | 12 9/16 in |
| Manufacturer | US Motors (Nidec), US M. |
| Manufacturer Part Number | UN12T2GC |
| Manufacturers Warranty . | 3 yr |
| Max. Ambient Temp. | 40 Degrees C |
| Model Number | FD90 |
| Motor Application | Cranes and Hoists, Indu. |
| Motor Design | 3-Phase |
| Motor Enclosure Design | Totally Enclosed Non-Ve. |
| Motor Frame Material | Steel |
| Motor Mounting Position | Horizontal |
| Motor Mounting Type | Horizontal Footed |
| Motor Service Factor | 1 |
| Motor Shaft Design | Keyed |
| Motor Shaft Rotation | CW/CCW |
| Mounting | Foot Mount |
| Mounting Type | Foot Mount |
| Nameplate RPM | 1,750 rpm |
| NEMA Design | A |
| NEMA Frame | 56C |
| Net Weight | 0 lbs |
| Nominal Voltage | 575 VAC |
| Number of Poles | 4 |
| Number of Speeds | 1 |
| Overall Length | 14 1/2 in |
| Part Number | UN12T2GC |
| Phase | 3 |
| Product Type | General Purpose |
| RPM | 1,750 rpm |
| Shaft Dia. | 5/8 in |
| Shaft Length | 1 15/16 in |
| Speed (RPM) | 1750 |
| Standards | CSA Certified, UR |
| Voltage | 575V |
| Voltage (AC) | 575 VAC |
All Prices
| Img | Seller | Supplier SKU | Min Price | MOQ | In Stock | Lead Time | Brand | Weight | Preferred Tier |
|---|
 | Zoro | G0391070 | 341.99 | 1 | In Stock | | U.S. Motors | 45.0 | 341.99 @ 1 |
 | Global Industrial | WBB468012 | 389.95 | 1 | In Stock | | US Motors | | 389.95 @ 1 |
 | National Supply Network | B468012 | 440.04 | 1 | In Stock | | US MOTORS | | 440.04 @ 1 |
 | motorsandcontrol.com | UN12T2GC | 447.44 | 1 | In Stock | | US Motors (Nidec) | 20.9 | 447.44 @ 1 |
 | Galco | UN12T2GC-USM | 447.45 | 1 | In Stock | | US Motors | 45.0 | 447.45 @ 1 |
| motionindustries.com | 04385823 | 823.84 | 1 | In Stock | | US Motors (Nidec) | | 823.84 @ 1 |
