- mpn77053
- brandname: Viega
- manufacturername: Viega

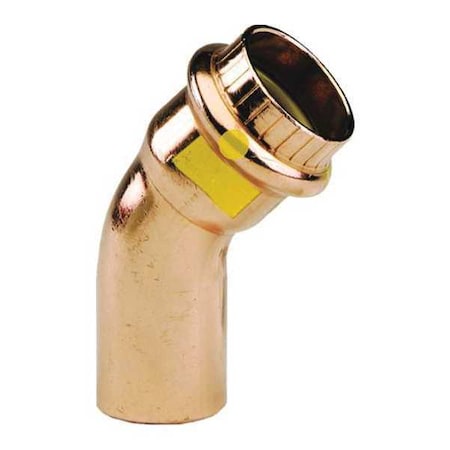

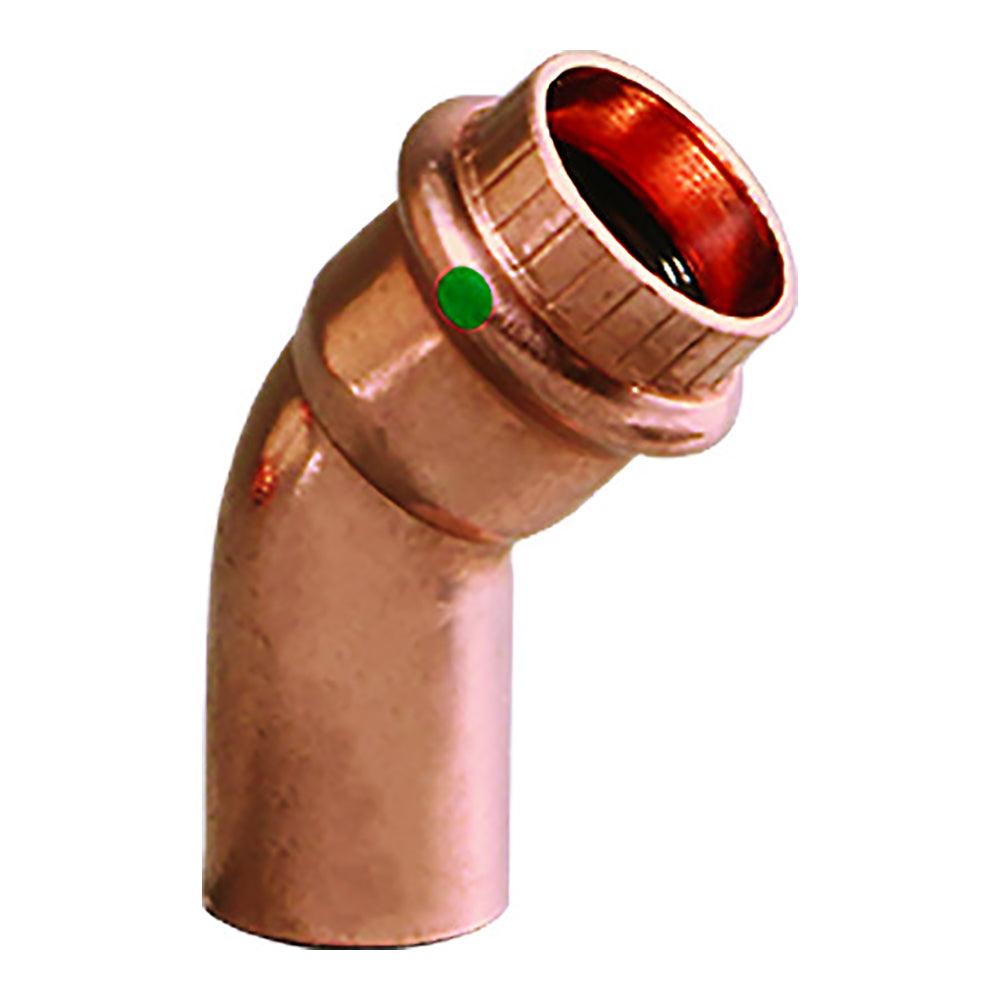

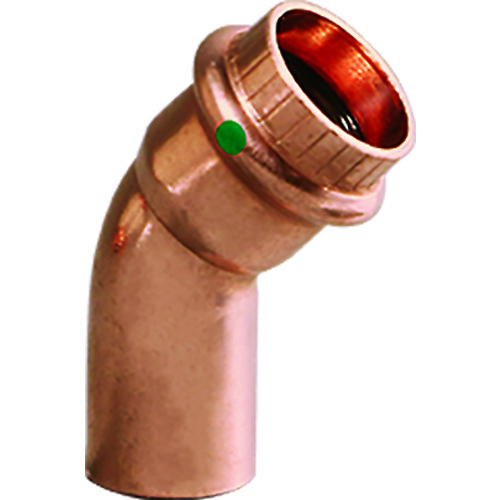

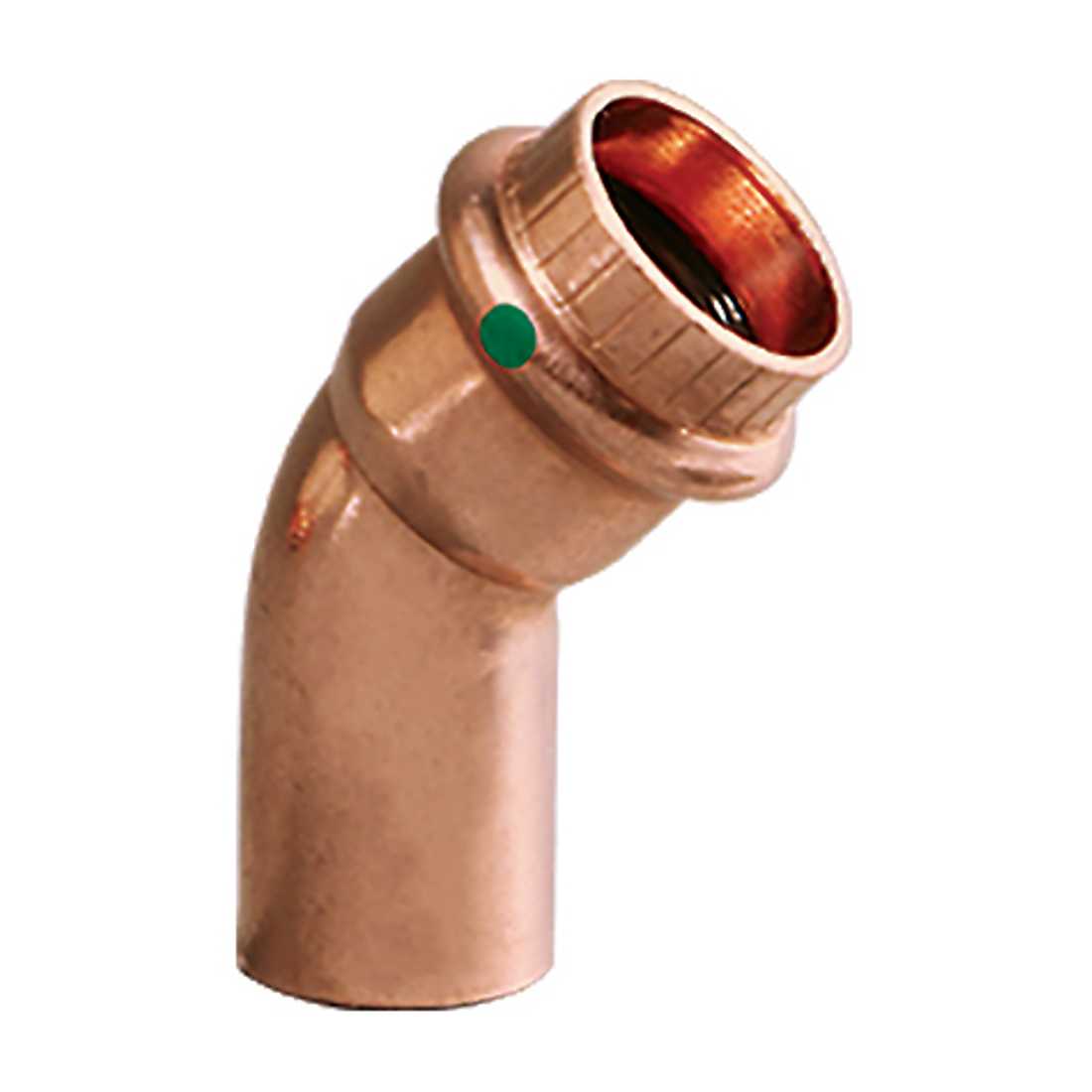

Viega 77053 3/4 in. x 3/4 in. Copper 45-Degree Street Elbow - pack of 10
- Brand: Viega
- PartNumber: 77053
- Color: Copper
- PackageQuantity: 10
- Binding: Misc.
- Manufacturer: Viega
- Label: Viega
Attributes
| Key | Value |
|---|
| ANSI | ANSI 213, ANSI 372, ANS. |
| Application | Chilled Water, Cold Wat. |
| ASME | ASME A13.1, ASME B1.20.. |
| ASTM | ASTM B-75, ASTM B-813, . |
| Availability | Available |
| Basic Pipe Fitting Mate. | Metal |
| Basic Pipe Fitting Shape | Elbow |
| Bend Degree | 45 Degree |
| Clean Bagged | No |
| Collection | ProPress? |
| Color | Copper |
| Compliance | ABS: America Bureau of . |
| Connection 1 | P |
| Connection 2 | FTG |
| Connection Type | P x FTG, Compression |
| Copper Tube Size | 3/4 in x 3/4 in |
| CSA Certified | CSA MSE 13 |
| Dimensions | 3/4'' x 3/4'' |
| Elbow Degree | 45 DD |
| End Connection 1 | Copper Press |
| End Connection 2 | Male Sweat |
| End Connections | Copper Press x Male Swe. |
| Features | Lead Free |
| Finish | No Finish Group |
| Fire Suppression System. | Yes |
| Fitting 1 size | 3/4" |
| Fitting 2 size | 3/4" |
| Fitting Connection Type | Press x Street |
| Fitting Copper Tube Size | 3/4 in |
| Fitting Material | Copper |
| Fitting or Connector Ty. | Elbow |
| Fitting Side A Copper T. | 3/4 in |
| Fitting Side B Connecti. | FTG |
| Fitting Side B Copper T. | 3/4 in |
| Fitting Size 1 | 3/4 in |
| Fitting Size 2 | 3/4 in |
| Fitting Sizes | 3/4 in |
| Fitting Type | Elbow |
| FM Approved | Yes |
| Freight Class Alpha | 70 |
| Height | 0.750" |
| IAPMO Listed - | Yes |
| Inlet Diameter (in.) | 3/4 |
| Item | 45 Degree Street Elbow |
| Lead Law Compliance Lev. | Lead Law Compliant and . |
| Lead Law Compliant | Yes |
| Length | 2.560" |
| Made In | Made In Germany |
| Manufacturer | Viega |
| Material | Copper, Wrot Copper |
| Max. Pressure | 200 psi |
| Maximum Operating Press. | 200 psi |
| Maximum Operating Tempe. | 250 Degrees F |
| Mfg Material Number | 234619 |
| Minimum Order Quantity | 10 |
| Minimum Temperature | 0 |
| NSF | NSF 372, NSF 61 |
| NSF Certified | Yes |
| O-Ring Material | EPDM |
| Origin | Global |
| Pack Size | 10 |
| Pipe Fitting Connection. | Press x Street |
| Pipe or Fitting Product. | Fittings & Connectors |
| Pipe Size (Fittings) | 3/4" x 3/4" |
| Pipe Size - Pipe Fitting | 3/4 in x 3/4 in |
| Pressure - High | 300 |
| Pressure - Maximum | 600 psi |
| Product | Elbows |
| Product Depth (in.) | 2.56 |
| Product Height (in.) | 0.75 |
| Product Length (in.) | 2.56 |
| Product Width (in.) | 0.75 |
| Reference ID | 4105393 |
| Shape | Round |
| Size | 3/4 in x 3/4 in, 3/4" |
| Specific Fitting Shape | 45 Degrees Street Elbo. |
| Specific Pipe Fitting S. | 45 Degrees Elbow |
| Standards | ASTM B75, ASTM B88 |
| Style | Repair & Replacement |
| Temp. Range | 0 Degrees to 250 Degre. |
| Temperature Range | Up to 250 Deg F |
| Tube Fitting Material | Copper |
| Tube Size | 3/4 in x 3/4 in |
| UL Listed | UL 213 |
| UNSPSC | 40172800 |
| UPC | 691514770536 |
| Warranty | 50 year limited warranty |
| Weight | 0.140 lbs., 0.14 lb |
| Width | 0.750" |
All Prices
| Img | Seller | Supplier SKU | Min Price | MOQ | In Stock | Lead Time | Brand | Weight | Preferred Tier |
|---|
 | suppliesdepot.com | 77053 | 3.24 | 1 | 5 | | VIEGA | | 3.24 @ 5 |
 | ecomfort.com | 77053 | 3.26 | 1 | 5 | | Viega | | 3.26 @ 5 |
 | boatowners.com | VIEGA-77053 | 3.48 | 1 | 5 | | Viega | | 3.48 @ 5 |
 | clevelandplumbing.com | 145260 | 3.78 | 1 | 5 | | Viega | | 3.78 @ 5 |
 | Zoro | G3957311 | 4.05 | 1 | 1784 | | Viega | 0.14 | 4.05 @ 5 |
 | PlumbersStock | 61322 | 4.06 | 1 | 5 | | Viega | 0.14 | 4.06 @ 5 |
| boatersmarinesupply.com | 77053 | 4.08 | 1 | 5 | | VIEGA PROPRESS | 0.15 | 4.08 @ 5 |
 | standardplumbing.com | 77053 | 4.28 | 1 | 5 | | VIEGA LLC | | 4.28 @ 5 |
 | coastaldepot.com | 77053 | 4.45 | 1 | 5 | | VIEGA | | 4.45 @ 5 |
| ferguson.com | 5150487 | 4.6 | 1 | 5 | | Viega | 0.14 | 4.6 @ 5 |
 | ritelinemarine.com | 83777 | 4.99 | 1 | 5 | | Viega | 0.15 | 4.99 @ 5 |
 | cemarine.com | 83777 | 4.99 | 1 | 5 | | Viega | | 4.99 @ 5 |
 | thepartworks.com | 110640 | 5.09 | 1 | 22 | | Viega | | 5.09 @ 5 |
 | lg-outdoors.com | 6048292 | 5.77 | 1 | 5 | | Viega | | 5.77 @ 5 |
 | socalpowersports.com | 77053 | 5.92 | 1 | 5 | | Viega | | 5.92 @ 5 |
 | firstchoicemarine.com | VGA-77053 | 5.98 | 1 | 5 | | Viega | | 5.98 @ 5 |
 | tdpep.com | CR-83777 | 5.99 | 1 | 5 | | Viega | | 5.99 @ 5 |
 | delawarepaddlesports.com | 77053 | 5.99 | 1 | 5 | | Viega | 0.15 | 5.99 @ 5 |
 | Anchor Express | 83777 | 5.99 | 1 | 5 | | VIEGA PROPRESS | | 5.99 @ 5 |
 | Edge Supply | 77053 | 6.1 | 1 | 5 | | Viega | 0.14 | 6.1 @ 5 |
| National Supply Network | 5150487-FG | 6.238 | 1 | 5 | | VIEGA NORTH AMERICA LLC | | 6.238 @ 5 |
 | essenbaymarine.com | CWR-83777 | 6.61 | 1 | 5 | | Viega | | 6.61 @ 5 |
 | unbeatablesale.com | CW79716 | 8.39 | 1 | 5 | | VIEGA | | 8.39 @ 5 |
 | Hodges Marine | VIE77053 | 13.74 | 1 | 5 | | VIEGA PROPRESS | | 13.74 @ 5 |
 | DK Hardware | 77053 | 47.08 | 1 | 5 | | Viega | | 47.08 @ 5 |
