Worldwide Electric HdRF237-10/1-R-56C

B00KC4F0KY

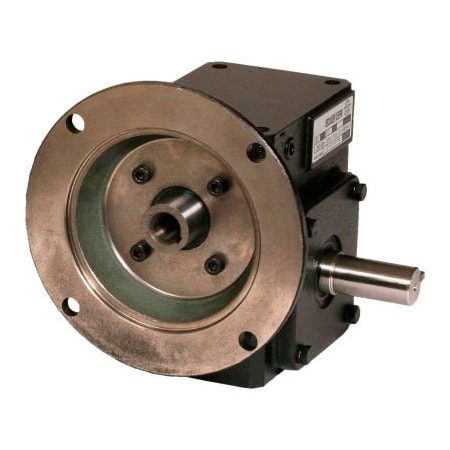

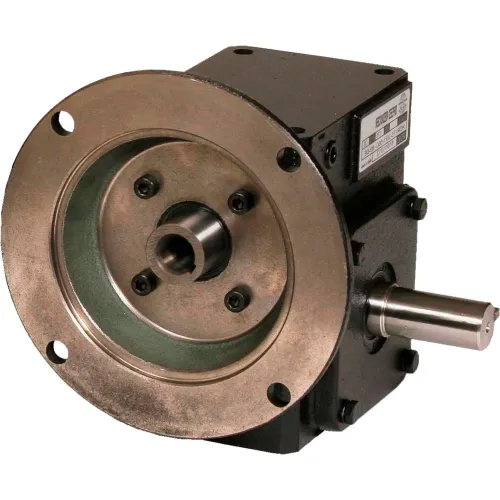

Worldwide Electric HdRF237-10/1-R-56C Worm Gear Reducers, Right Hand Output, 10:1 Ratio, 175 Output RPM, 56C Frame, 2.37" WCD Center

Worldwide Electric HdRF237-10/1-R-56C Worm Gear Reducers, Right Hand Output, 10:1 Ratio, 175 Output RPM, 56C Frame, 2.37" WCD Centerzoom

Attributes

Key Value
Box size237
Box Size237
Center Distance2.37, 2.37 "
ClassificationRight Angle Worm
Country of Origin (subj.Taiwan, Province of Chi.
Description:Worm Gear Reducer - 10:.
Family SeriesWorldwide Electric Corp.
Frame56C
Gearbox TypeWorm
Gross Weight0 lbs
Input Bore Size0.625 "
Input TypeFLANGE
Input typeFlange input
Item ConditionFactory New
Item NumberHdRF237-10/1-R-56C
ManufacturerWorldwide, Worldwide El.
Manufacturer Part NumberHdRF237-10/1-R-56C
MaterialCast Iron
MAX HP3.47
Max Input HP (@ 1750 RP.3.47 hp
Max Output Torque1158
Max OverHung Load (OHL)900
MFG Part #:HdRF237-10/1-R-56C
Motor Frame SizeNEMA 56C
NEMA Motor frame56C
Net Weight0 lbs
Nominal Torque (in-lbs)1,158 in-lbs
Nominall Ratio10:1
OHL900
Output RPM at 1800 RPM .175
Output Shaft Diameter1.125 "
Output Shaft TypeRight Handed Shaft
Output Speed (RPM)175 RPM
Output typeRight hand
Output TypeRIGHT HAND SHAFT
Product SeriesHDR
Ratio1, 10:1
RPM175
Stages1
Supplier:Worldwide Electric Corp.
Warranty lengthOne year
WCD center2.37 in

All Prices

Img Seller Supplier SKU Min Price MOQ In Stock Lead Time Brand Weight Preferred Tier
thumbzoomNational Supply NetworkB1856486380.111In StockWorldwide Electric Corporation380.11 @ 1
thumbzoomDealers ElectricHDRF237-10/1-R-56C407.771In StockWorldwide38.0407.77 @ 1
thumbzoomMRO Supply1848336415.041In StockWorldWide Electric415.04 @ 1
thumbzoomGlobal IndustrialWBB1856486428.951In StockWorldwide Electric Corporation428.95 @ 1
thumbzoomGalcoHDRF237-10/1-R-56C-WWEC433.631In StockWorldwide Electric Corporation433.63 @ 1
kscdirect.comWWE HDRF237-10/1-R-56C462.231In StockWorldwide Electric Corporation462.23 @ 1
thumbzoomZoroG604902998737.821In StockWorldwide Electric737.82 @ 1
