Acme Electric TF252796S

B009OY6RMS

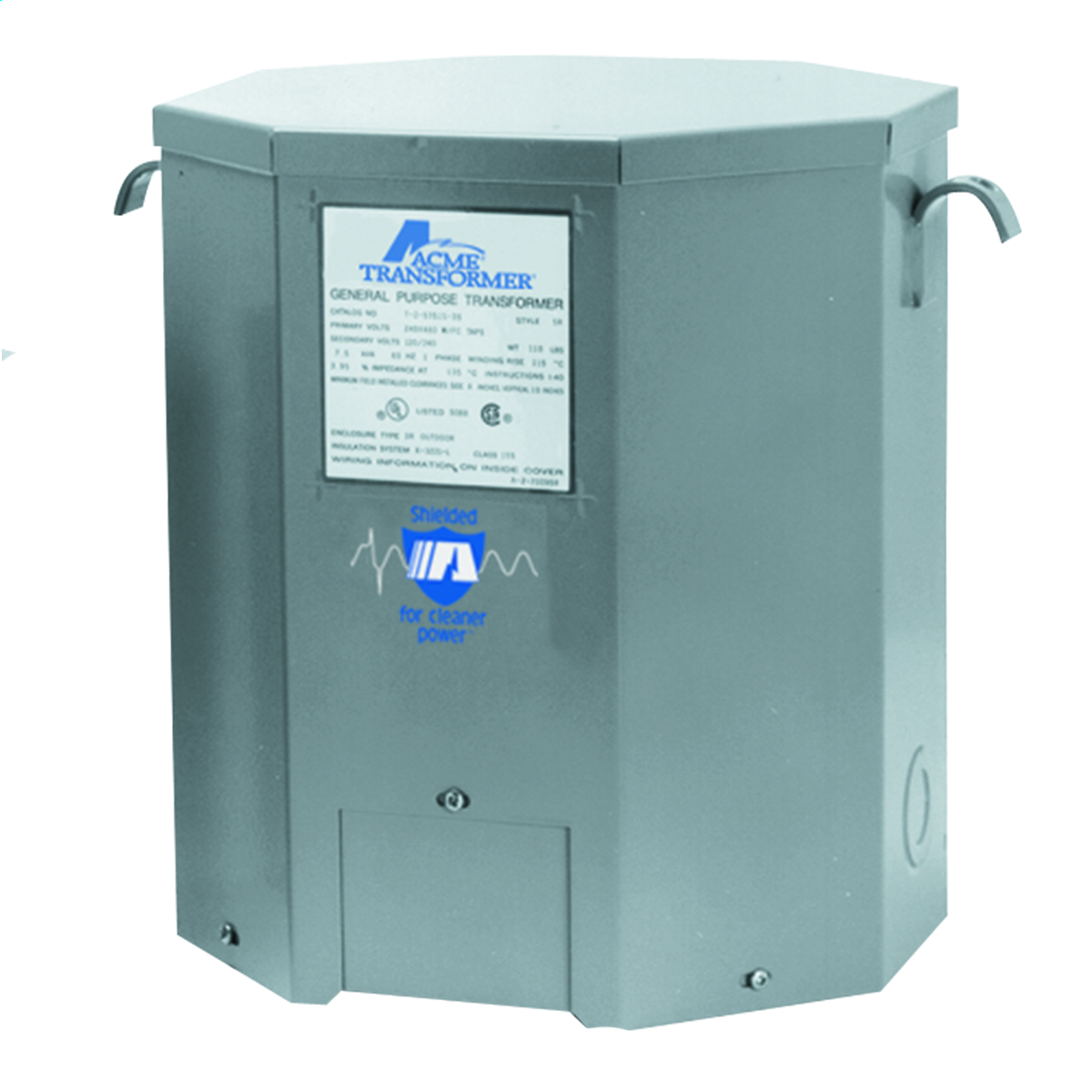

Acme Electric TF252796S (ACME) Transformers

Acme Electric TF252796S (ACME) Transformerszoom

Attributes

Key Value
ApplicationEncapsulated
BrandAcme Electric
Carton Quantity1
Catalog NumberTF252796S
Connection typeLead Wire
Country of OriginMexico
CSA StandardC22.2 No. 47
Depth11.59 in
Dimensions11.59 in x 14.12 in x 1.
Electrostatic ShieldShielded
Enclosure TypeNEMA 3R, Encapsulated
Frequency Rating50/60 Hz, 50/60
Height16.94, 16.94 in
Height UOMInch
Hz - Electrical50/60 Hz
Input Voltage - Transfo.190/200/208/220 X 380/4.
InsulationClass H/180 deg C
Insulation Max. Temp.180?C
ItemIC Transformer
Item TypeIsolation transformer
Length11.59 in, 11.59
Length UOMInch
Made in USANo
ManufacturerAcme Electric, a Hubbel.
Max Temperature Rise115 Degrees Celsius
MountingWall
Mounting - TransformerWall
Mounting typeWall
NEMA RatingNEMA 3R
Output Voltage - Transf.120/240 V
Phase1
Power Rating15
Primary TypeIndustrial Transformer
Primary Voltage190/200/208/220 X 380/4.
Secondary Voltage120/240 V, 120/240
SeriesToroids Series
StandardsCSA C22.2 No. 47; UL 506
Temp. Rise115?C
Temperature Rating (Deg.115
TypeDry Type Distribution T.
UPC047503190654
VA Rating - Transformer15 kVA
Width14.12, 14.12 in
Width UOMInch
Winding MaterialAL
Winding Material - Tran.Aluminum

All Prices

Img Seller Supplier SKU Min Price MOQ In Stock Lead Time Brand Weight Preferred Tier

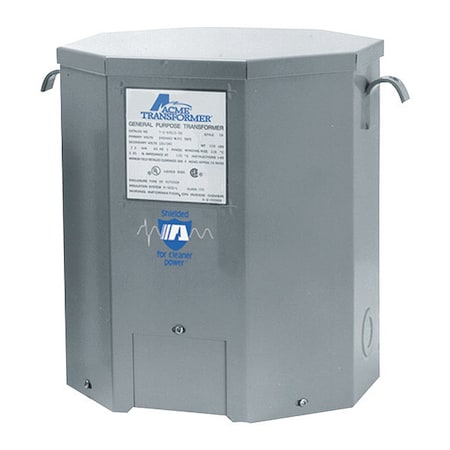

thumbzoomZoroG37193312185.991In StockAcme Electric55.02185.99 @ 1
thumbzoomstandardelectricsupply.com576122626.051In StockAcme Electric2626.05 @ 1
cbtcompany.comTF252796S2821.961In StockAcme Electric2821.96 @ 1
steinerelectric.com685142837.531In StockAcme Electric2837.53 @ 1
us.rs-online.com714843563193.971In StockAcme Electric Corporation3193.97 @ 1
thumbzoomcrescentelectric.com9844424695.931In StockAcme Electric4695.93 @ 1
