Baldor-Reliance CDP3443

B08J7VM1D7

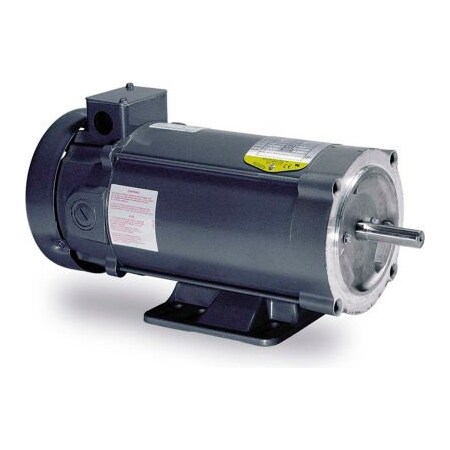

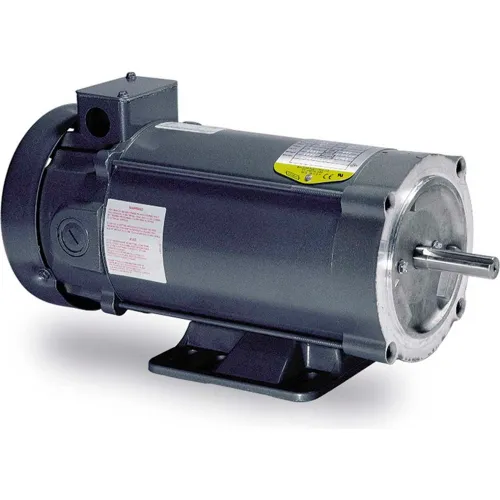

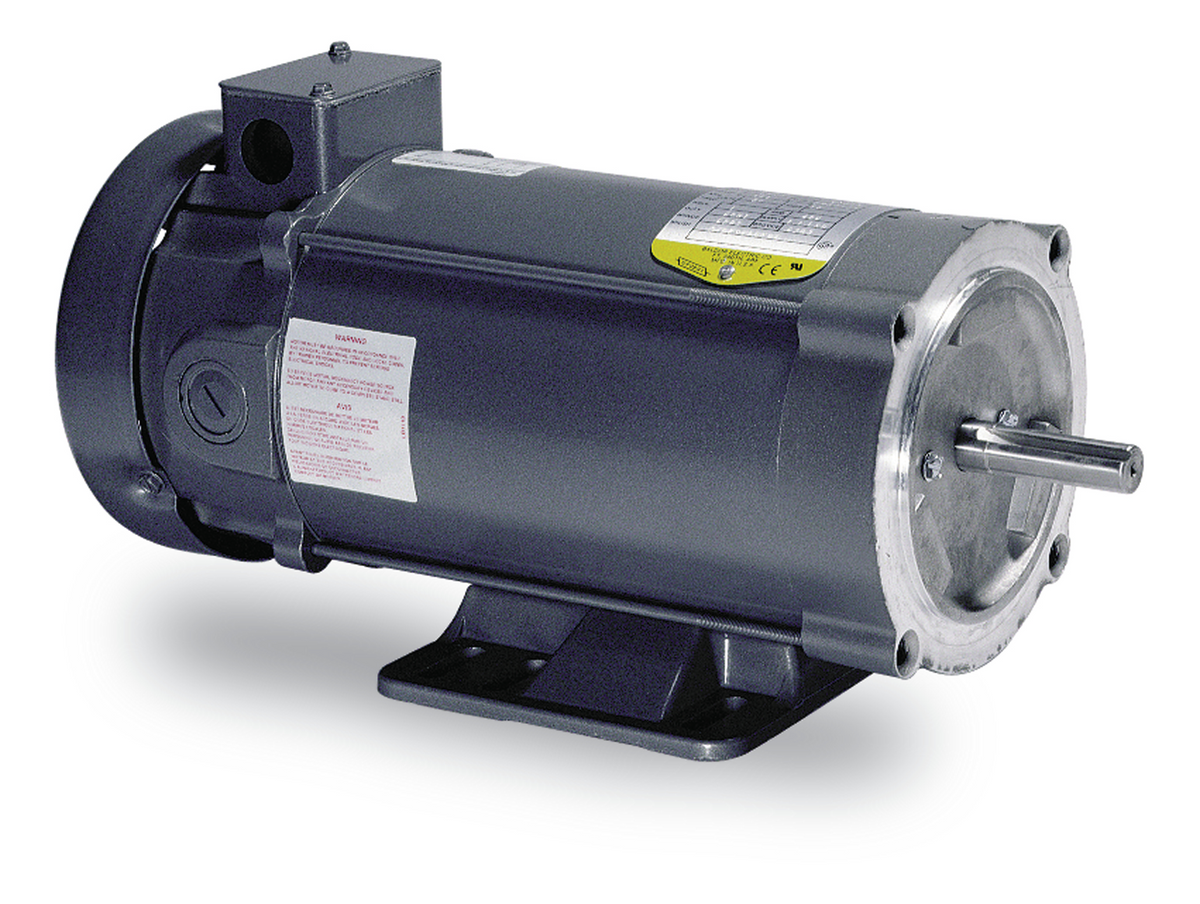

Baldor-Reliance CDP3443 DC Electric Motor - Permanent Magnet, Brushed, 3/4 hp hp, 90 V, 2500 rpm, TEFC (Totally Enclosed Fan Cooled), 56C Frame

Baldor-Reliance CDP3443 DC Electric Motor - Permanent Magnet, Brushed, 3/4 hp hp, 90 V, 2500 rpm, TEFC (Totally Enclosed Fan Cooled), 56C Framezoom

Attributes

Key Value
Amps7.5
ApprovalsCSA, UL
Armature Current7.5 A, 7.5
Armature Voltage90 V
Base RPM2,500 RPM
BearingsSealed
Country of Origin (subj.United States
CT Speed Range20:1
Drive End Flange TypeC-Face
Duty CycleContinuous
EnclosureTEFC
Enclosure MaterialSteel
Enclosure TypeTEFC (Totally Enclosed .
Estimated Weight34.00
Family SeriesBaldor Motors, PERMANEN.
Frame56C
Gross Weight36 lbs
Horsepower3/4 hp
HP3/4, 0.75
Insulation ClassF
Item NumberCDP3443
ManufacturerBaldor, Baldor Reliance
Manufacturer Model #34-5990-4542
Manufacturer Part NumberCDP3443
Maximum Ambient Tempera.40? C
MountingFoot Mount, Rigid
Mounting TypeC-Face Removable Base
Net Weight36 lbs
Overall Length14.59"
Part NumberCDP3443
PhaseDC
Product SeriesPERMANENT MAGNET SCR
Product TypeDC, General Purpose
RotationReversible
RPM2500
Service Factor1.00
Shaft Diameter0.625"
Ship Weight36 lbs.
Speed (RPM)2400
Voltage90V
Volts90VDC

All Prices

Img Seller Supplier SKU Min Price MOQ In Stock Lead Time Brand Weight Preferred Tier
thumbzoomelectricmotorwholesale.comCDP3443639.231In StockBALDOR639.23 @ 1
AmazonTPB007ZQNYT6758.211In Stock42Baldor758.21 @ 1
AmazonUNKB007ZQNYT6758.211In StockBaldor758.21 @ 1
steinerelectric.com724423783.931In StockBaldor-Reliance783.93 @ 1
thumbzoomemotorpro.comCDP3443850.31In StockBaldor36.0850.3 @ 1
thumbzoomcbtcompany.comCDP3443916.491In StockBaldor Reliance916.49 @ 1
factorysupplyoutlet.comGQ40CF931.441In StockBaldor-Reliance931.44 @ 1
thumbzoomGalcoCDP3443-BLDR934.621In StockBaldor36.0934.62 @ 1
thumbzoomWalker IndustrialCDP3443940.851In StockBaldor940.85 @ 1
motorsandcontrol.comCDP3443940.851In StockBaldor Reliance34.0940.85 @ 1
thumbzoomGlobal IndustrialWBB3887161009.01In StockBaldor-Reliance1009.0 @ 1
motionindustries.com005344571052.351In StockBaldor-Reliance1052.35 @ 1
us.rs-online.com725125031070.121In StockBaldor-Reliance1070.12 @ 1
thumbzoomapexindustrialautomation.comCDP34431085.612Baldor-Reliance1085.6 @ 1
thumbzoompumpproducts.comCDP34431112.831In StockBaldor1112.83 @ 1
kirbyrisk.com17750051233.641In StockBaldor1233.64 @ 1
thumbzoomZoroG3051745882114.61In StockBaldor-Reliance2114.6 @ 1
thumbzoomRaptor SuppliesAJ6PBU2802.2691061In StockBALDOR MOTOR2802.269106 @ 1
