- mpn9502 060100
- brandname: Belden
- manufacturername: Belden

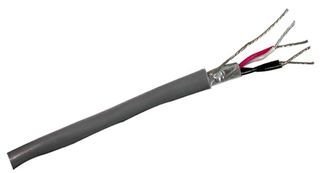

BELDEN 9502 060100 CABLE, SHLD MULTIPR, 2PR, 24AWG, 100FT, 300V, CHR
- Brand: Belden
- PartNumber: 9502 060100
- Model: 9502 060100
- PackageQuantity: 1
- Manufacturer: BELDEN
- Label: BELDEN
Attributes
| Key | Value |
|---|
| Alternate Part No. | 566-9502-100 |
| Application | For computer and EIA RS. |
| Base Product Number | 9502 |
| Brand | Belden Wire & Cable |
| Cable application | indoor, |
| Cable external diameter | 5.5mm |
| Cable features | twisted pair conductors |
| Cable Type | STP, Multi-Pair |
| Category | Cables, Wires |
| Conductor Insulation | Poly-Vinyl Chloride (PV. |
| Conductor Material | Tinned Copper (TC), Cop. |
| Conductor Strand | 7/32 |
| Configuration | 2 Pair |
| Conform to the norm | UL 1685 |
| Core diameter | 24AWG |
| Core marking | colours with colour rep. |
| Core structure | stranded |
| CPR standard | E |
| Description | MULTI-PAIR 4CON 24AWG C. |
| Detailed Description | 4 (2 Pair Twisted) Cond. |
| Digi-Key Part Number | BEL1389-100-ND |
| Earth core | none |
| Features | Computer cable for EIA . |
| Ground | tinned copper strand 24. |
| Insulation colour | chrome |
| Insulation Material | Polyvinyl Chloride (PVC. |
| Jacket (Insulation) Dia. | 0.222" (5.64mm) |
| Jacket (Insulation) Mat. | Poly-Vinyl Chloride (PV. |
| Jacket (Insulation) Thi. | 0.0320" (0.813mm) |
| Jacket Color | chrome |
| Jacket Colour | chrome |
| Jacket Material | Polyvinyl Chloride (PVC) |
| Kind of core | Cu, |
| Kind of material | no flame propagation |
| Length | 100.0' (30.5m), 100 ft |
| Manufacturer | Belden Wire & Cable, BE. |
| Manufacturer Part No. | 9502 060100 |
| Manufacturer Product Nu. | 9502 060100 |
| Manufacturer Standard L. | 7 Weeks |
| Mfr | Belden Inc. |
| No. of pairs | 2 |
| Number of Conductors | 4, 4 (2 Pair Twisted) |
| Number of cores | 4 |
| Number of Pairs | 2 |
| Operating Temperature | -30?C ~ 80?C |
| Operating temperature | -30...80?C |
| Outer Diameter | 0.222 in. |
| Outside Diameter | 5.64 mm |
| Package | Spool |
| Package contents | 30m |
| Packaging | Coil |
| Product Category | Multi-Paired Cables |
| Product Header | High-Temperature Contro. |
| Product Status | Active |
| Rated voltage | 300V |
| Ratings | - |
| Series | 9502, 9502 Series, Clas. |
| Shield Coverage | 100% |
| Shield Material | Aluminum/Polyester Tape. |
| Shield structure | Al-PET foil, |
| Shield Type | Foil |
| Shielding | Shielded, Foil |
| Standards | UL AWM Style 2464 ; NEC. |
| Stranding | 7 x 32, 7x32 |
| Temperature, Rating | -30 to 80 C |
| Type | Networking |
| Type of wire | data transmission |
| Unit Weight | 3.175 kg |
| Usage | Computer |
| Voltage Rating | 300 V |
| Wire Gauge | 24 AWG |
| Wire Gauge - AWG | 24 |
| Wire insulation material | PVC |
| Wire Size | 24 AWG |
All Prices
| Img | Seller | Supplier SKU | Min Price | MOQ | In Stock | Lead Time | Brand | Weight | Preferred Tier |
|---|
| alldataresource.com | B9502-100 | 2.95 | 1 | 100 | | Belden | | 2.95 @ 100 |
 | TME | 9502.060100 | 65.91 | 1 | 100 | | BELDEN | | 65.91 @ 100 |
 | Digi-Key | 7007842 | 141.38 | 1 | 100 | | Belden Inc. | | 141.38 @ 100 |
 | swatee.com | 9502 060100 | 147.74 | 1 | 100 | | Belden Wire & Cable | | 147.74 @ 100 |
| us.rs-online.com | 70004889 | 185.31 | 1 | 100 | | Belden | | 185.31 @ 100 |
 | Newark | 02F4862 | 205.65 | 1 | 100 | | BELDEN | | 205.65 @ 100 |
