Burndy YA31L7

B00CBNL1QG

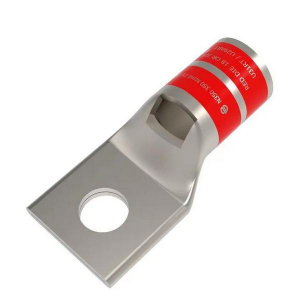

Burndy YA31L7 One Hole Hylug Code Conductor Standard Barrel Copper Compression Terminal, 350 kcmil Conductor, 5/8" Stud Hole Size, 1.29" Tongue Width, 3.00" Length,Red

Burndy YA31L7 One Hole Hylug Code Conductor Standard Barrel Copper Compression Terminal, 350 kcmil Conductor, 5/8" Stud Hole Size, 1.29" Tongue Width, 3.00" Length,Redzoom

Attributes

Key Value
ApprovalsCSA, UL
Certification - CSA App.Yes
Certification - cULusNo
Certification - UL Reco.No
ColorRed
Color CodeRed
Color FamilyRed
Conductor - Copper DLO .N/A
Conductor - Copper Str .350 (91) Navy
Conductor - Copper Str .350 (91) Navy
Conductor - Copper Str .350 kcmil
Conductor - Copper Str .350 kcmil
Conductor - MaterialCopper
Connector TypeTerminal
Country of OriginUS - United States
Country of Origin (subj.United States
Die ColorRed
Die Index18
Dimension - B Length fr.1-1/16 in
Dimension - B Length in.1.06 in
Dimension - Bolt Hole S.0.66 in
Dimension - Bolt Size f.5/8
Dimension - D inch1.33 in
Dimension - Hole Size mm18 mm
Dimension - L Length Ov.76 mm
Dimension - Length Over.3.00 in
Dimension - N inch0.66 in
Dimension - Outside Dia.0.88 in
Dimension - Pad Width i.1.29 in
Dimension - Strip Lengt.1-1/8
Dimension - Stud Size f.5/8
Dimension - Stud Size i.5/8
Dimension - Z inch0.67 in
ECCNEAR99
Family SeriesBurndy Terminals, YA-L .
Feature - Barrel TypeStandard
FinishElectro Tin-Plated
Gross Weight0 lbs
Industry Standard(s)UL467
InsulatedNon-Insulated
Item NumberYA31L7
Lug Wire Size350 kcmil
ManufacturerBurndy
Manufacturer Part NumberYA31L7
MaterialCopper
Max Temp194 ?F
Net Weight0 lbs
Physical Attribute - Nu.1
Physical Attribute - To.Straight
Physical Attribute - To.Standard
PlatedY
Plating MaterialElectro-Tin
Plating TypeTin - Electro Plated
Product SeriesYA-L
Rating - KVA35 kV
Rating - Minimum Voltage600
Standards - RoHS Compli.CM
Stud Size5/8 in.
Terminal MaterialCopper
Terminal TypeBarrel - Standard
Tongue Width1.29 "
Trade NameHYLUG?
TypeStandard Barrel, Tin Pl.
UL ListedYes
UNSPSC39121409
Use WithCopper
Voltage - Maximum35000
Volts600 V
Wire Size350 kcmil
Wire Size (kcmil)350 kcmil
Wire Strip Length1.1875 "

All Prices

Img Seller Supplier SKU Min Price MOQ In Stock Lead Time Brand Weight Preferred Tier
kirbyrisk.com189281215.151In StockBurndy15.15 @ 1
thumbzoomZoroG90243868717.111In Stock54Burndy17.11 @ 1
Heilind ElectronicsBURYA31L717.548819Burndy17.5488 @ 1
thumbzoomGalcoYA31L7-BURN19.831In StockBurndy19.83 @ 1
thumbzoomusmegastore.comYA31L721.931In StockBurndy21.93 @ 1
Graybar9008626726.53281In StockBurndy26.5328 @ 1
