Dwyer 1950-0-2F

B008HOWMVQ

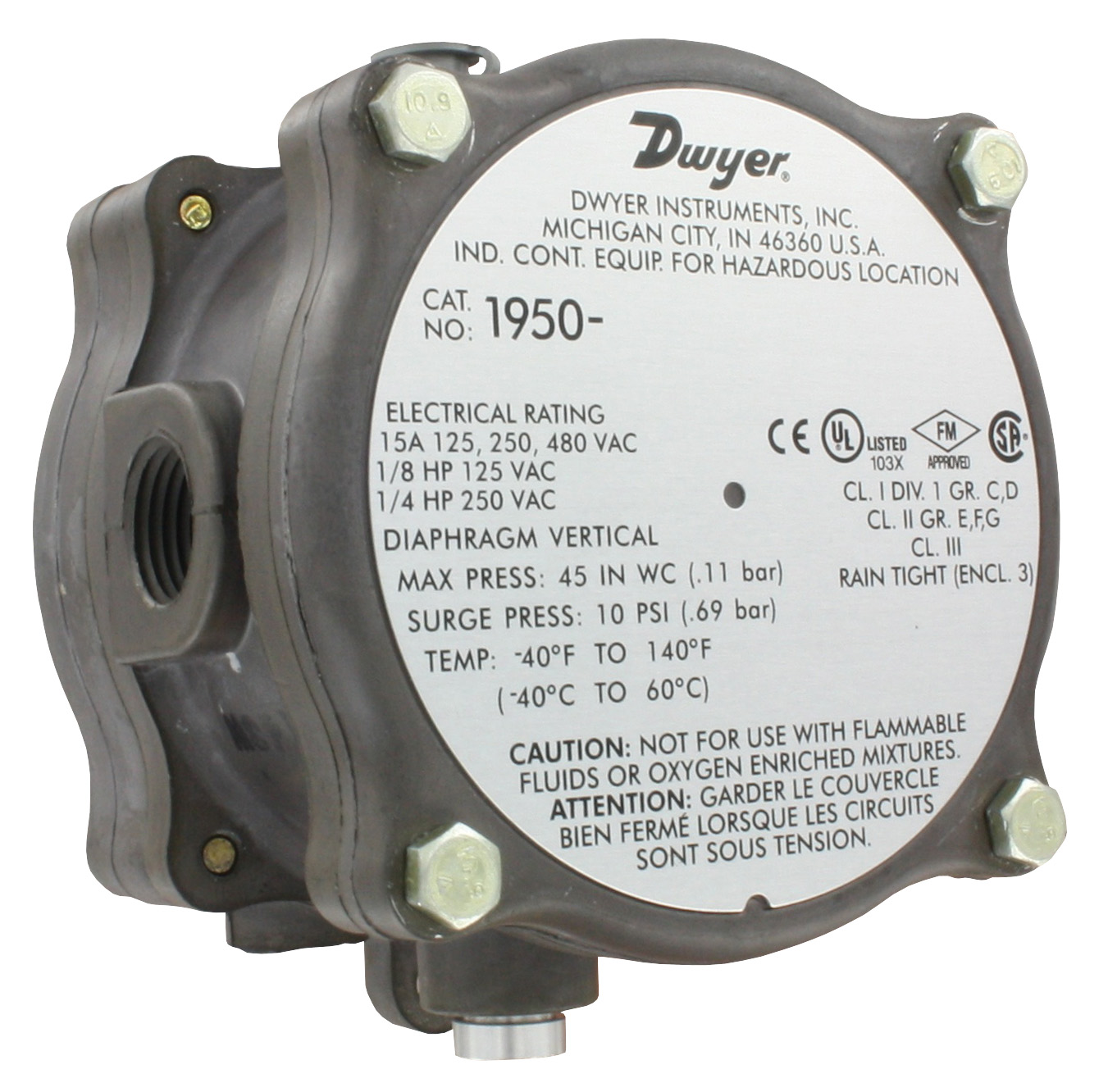

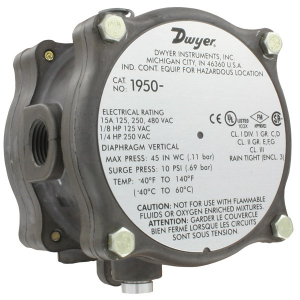

Dwyer Series 1950 Explosion-Proof Differential Pressure Switch, Range 0.15-0.50"WC, 10G Mica Silver Contact Micro Switch, Fluorosilicone Diaphragm

Dwyer Series 1950 Explosion-Proof Differential Pressure Switch, Range 0.15-0.50"WC, 10G Mica Silver Contact Micro Switch, Fluorosilicone Diaphragmzoom

Attributes

Key Value
Agency ApprovalsCE, CSA, FM, UL
ApprovalsCE, CSA, FM, UL, CE ; C.
Best Sellers RankSee Top 100 in Industri.
BrandDwyer
Comments0.15-0.5 W.C
Connection Type1NO ; 1NC
Connector TypeScrew
Contact TypeNormally Open, Normally.
Controller TypeRing
Country of Origin (subj.United States
Current Rating15 A @ 125 VAC, 15 A @ .
Current Stock47
Date First AvailableJuly 5, 2012
Electrical ConnectionScrew Terminals
Electrical Connections3 screw type, common, n.
Electrical Rating15 A @ 125, 250, 480 VA.
Enclosure RatingNEMA 3 (IP54), NEMA 7 a.
Family SeriesDwyer Instruments Press.
For Use WithAir and non-combustible.
Gauge Proof Pressure500 psig
Gross Weight3.245 lbs
International Protectio.IP54
International ShippingNo
IP RatingIP54
Is Discontinued By Manu.No
ItemPressure Switch
Item Dimensions LxWxH7.5 x 6 x 5.5 inches
Item model number1950-0-2F
Item Number1950-0-2F
Lead TimeExpected to ship in 1-2.
ManufacturerDwyer Instruments
Manufacturer Part Number1950-0-2F
Mounting OrientationDiaphragm in vertical p.
Mounting TypePlug-In Mount
Mpn1950-0-2F
National Stock Number5930-01-158-2240
NEMA RatingNEMA 3 ; NEMA 7 ; NEMA 9
Net Weight2.995 lbs
Operating FluidAir ; Non-Combustible G.
Port Size0.125 in
Pressure LimitsContinuous: 45" w.c. (0.
Primary TypePressure Switch
Process Connection1/8 NPT Female
Process Connections1/8" female NPT
Product Dimensions7.5 x 6 x 5.5 inches; 2.
Product Series1950
Product with faster shi.true
Series1950 Series
ServiceAir and non-combustible.
Set PointScrew type on top of ho.
Set Point AdjustmentScrew type on top of ho.
Shippingundefined (Fixed Shippi.
SKUZO-G3219590
Specification metFm_approved, Ul
SubCategoryElectrical
Switch TypeSingle-pole double-thro.
Temperature Limits-40 to 140?F (-40 to 60.
Temperature Range-40 to 140 F
TerminalSPDT
Weight3.25 lb (1.5 kg);, 3.25.

All Prices

Img Seller Supplier SKU Min Price MOQ In Stock Lead Time Brand Weight Preferred Tier
thumbzoomNRI IndustrialD661676137.131In StockDWYER137.13 @ 1
thumbzoomZoroG3219590290.661In StockDwyer Instruments3.25290.66 @ 1
us.rs-online.com71314343299.019Dwyer Instruments3.25299.0 @ 1
thumbzoomcappusa.com51034305.5216Dwyer305.52 @ 1
thumbzoomMegadepot1950-0-2F314.31In StockDwyer3.25314.3 @ 1
thumbzoomusmegastore.com1950-0-2F314.31In StockDwyer3.25314.3 @ 1
thumbzoomheavydutydepot.com1950-0-2F314.31In StockDwyer Instruments314.3 @ 1
thumbzoomindustrialzone.com1950-0-2F320.01In StockDwyer3.5320.0 @ 1
hvacdiscountstore.comDWY--1950-0-2F333.49113DWYER INSTRUMENTS333.49 @ 1
thumbzoomNewark82AK7540333.85116DWYER333.85 @ 1
thumbzoomGalco1950-0-2F-DWYR342.0511Dwyer Instruments3.245342.05 @ 1
thumbzoommidwestapplianceparts.com1950-0-2F-DW-P348.851In StockDwyer348.85 @ 1
thumbzoomblackhawksupply.com1950-0-2F355.21In StockDwyer355.2 @ 1
thumbzoomsimsupply.comZO-G3219590365.75147Dwyer365.75 @ 1
thumbzoomhomeessentialsdirect.com1950-0-2F368.921In StockDwyer Instruments368.92 @ 1
Kele1950-0-2F371.2818Dwyer Instruments371.28 @ 1
thumbzoomgsistore.com1950-0-2F372.28115Dwyer Instruments372.28 @ 1
thumbzoomVoomi Supply1950-0-2F375.431In StockDWYER375.43 @ 1
alliedcontrols.com1950-0-2F388.751In StockDwyer388.75 @ 1
thumbzoomRaptor SuppliesAH2CXE493.09772851In StockDWYER INSTRUMENTS493.0977285 @ 1
thumbzoomNex Instrument1950-0-2F513.01In Stock31Dwyer513.0 @ 1
