HARTING ELECTRONICS 09330102701

mpn09-33-010-2701
brandname: HARTING
manufacturername: HARTING

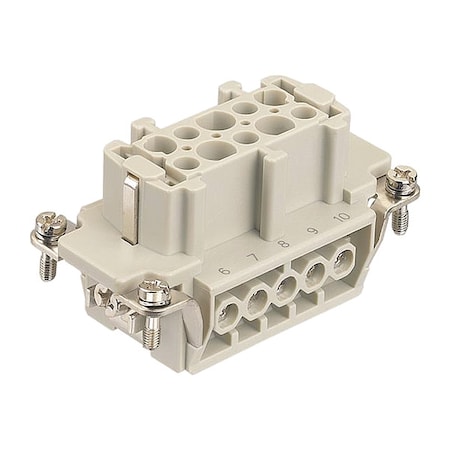

HARTING ELECTRONICS 09330102701 HAN 10 Series 10 Position Ground 16 AMP Female Insert - 1 item(s)

Brand: HARTING ELECTRONICS
PartNumber: 09330102701
Model: 09330102701
PackageQuantity: 1
Manufacturer: HARTING ELECTRONICS
Label: HARTING ELECTRONICS

Attributes

Key	Value
Alternate Part No.	617-09-33-010-2701
Angle	Straight
Application	Industrial Connectors
Base Product Number	09330102
Brand	HARTING
Category	Connectors, Interconnec.
Color	Gray, Pebble Gray
Connection Type	Screw
Connector Type	Insert
Contact Finish	Silver
Contact Material	Copper Alloy, Silver Pl.
Contact Type	-
Current Rating	16 A
Current Rating (Amps)	16A
Description	INSERT FEMALE 10POS+1GN.
Detailed Description	Female Insert Gray 10+G.
Digi-Key Part Number	1195-2058-ND
Export Class	EAR / EAR99
Family Name	Han-Modular Family
Gender	Female
Housing Material	Polycarbonate, Polycarb.
Housing/Hood Size	10B
Insert Color	Gray
Insert Material	Polycarbonate
Insert/Contact Gender	Female
Item	Industrial Rectangular .
Manufacturer	HARTING
Manufacturer Part No.	09330102701
Manufacturer Product Nu.	09330102701
Manufacturer Standard L.	11 Weeks
Material	Polycarbonate
Material Flammability R.	UL94 V-0
Max. Single Wire Size	14 AWG
Max. Voltage	500V
Maximum Contact Resista.	1 megaohm
Maximum Operating Tempe.	125 Degrees C
Mfr	HARTING
Min. Single Wire Size	18 AWG
Minimum Insulation Resi.	1.00 x 10^10 ohm
Minimum Mating Cycles	500
Minimum Operating Tempe.	-40 Degrees C
Mounting Hole Size	3.3 mm
Number of Poles	10
Number of Positions	10, 10+Ground, 10 ; 1 PE
Number of Rows	2
Operating Temperature	-40 to 125 C, -40?C ~ 1.
Overall Length	64 mm
Package	Bulk
Part # Aliases	010 09 09-33-010-2701 2.
Pole Finish	Silver Plated
Pole Material	Copper Alloy
Product Category	Heavy Duty Power Connec.
Product Header	Female Insert Connector
Product Status	Active
Product Type	Housings
RoHS	Yes
Series	Han(R) E, Han E Series,.
Size	10B
Specification	Han UL508 Approved
Temperature Range	-40 Degrees C to 125 .
Termination	Screw
Termination Style	Screw
Tradename	Han Industrial Connecto.
Type	Socket Insert
Voltage Rating	600V, 500V, 600V (UL/CS.
Weight (g)	68.00000
Weight (lbs)	0.14991
Wire Gauge Range	18-14
Wire Size	0.75 to 2.5 sq mm, 18 t.

All Prices

Seller	Supplier SKU	Min Price	MOQ	In Stock	Lead Time	Brand	Weight	Preferred Tier
PEI-Genesis	09330102701	11.52	1	78		Harting	0.14991	11.52 @ 1
Carlton Bates Company	78950691589	12.54	1	9		HARTING OF NORTH AMERICA INC		12.54 @ 1
TME	09330102701	14.17	1	82		HARTING		14.17 @ 1
Beyond Components	09-33-010-2701	16.33	1	3		HARTING Elektronik		16.33 @ 1
Future Electronics	1860964	16.8	1	17		HARTING		16.8 @ 1
AmazonTP	B005T82U7E	17.26	1	In Stock	2	HARTING		17.26 @ 1
Arrow	09330102701	17.798	1	1		HARTING Elektronik		17.798 @ 1
us.rs-online.com	70104558	18.74	1	539		HARTING		18.74 @ 1
Newark	79K0477	18.95	1	186		HARTING		18.95 @ 1
Digi-Key	3180641	19.75	1	466		HARTING		19.75 @ 1
Zoro	G505301937	20.75	1	In Stock		Harting	6.0	20.75 @ 1
swatee.com	09330102701	25.58	1	151		HARTING		25.58 @ 1
Radwell	09-33-010-2701	25.9	1	In Stock		HARTING		25.9 @ 1
RS Delivers	114-8248	26.628	1	443		HARTING		26.628 @ 1
