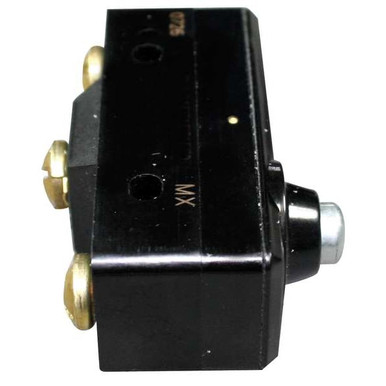

Honeywell BA-2RB-A2

B00MEJ9K5G

Basic / Snap Action Switches SPDT 20A W/PLUNGER

Basic / Snap Action Switches SPDT 20A W/PLUNGERzoom

Attributes

Key Value
AC Contact Rating - Sna.20 A @ 480 V, 20 A @ 48.
Actuator Length1.94"
Actuator TypeOvertravel Plunger
Actuator Type - Snap Ac.Overtravel, Plunger, Ov.
Base Product NumberBA-2
Basic Actuator Type - S.Plunger
BrandHoneywell Micro Switch
CategorySwitches
CircuitSPDT
Contact Form- SwitchesSPDT
Current Rating20A
Current Rating (Amps)20A (AC), 500mA (DC)
Current Stock97
DC Contact Rating - Sna.20 A @ 230V, 20 A @ 230.
Depth0.063"
Depth - Snap Action Swi.0.06 in
DescriptionSWITCH SNAP ACTION SPDT.
Detailed DescriptionSwitch SPDT Panel Mount
Differential Travel0.002" (0.05mm), 0.0020.
Digi-Key Part Number480-2428-ND
Electrical Connection -.Screw
Electrical Life-
Features-
Height0.95"
Height - Snap Action Sw.0.95 in
Housing MaterialPhenolic
Ingress Protection-
International ShippingNo
ItemLarge Snap Switch, Indu.
Length1.94"
Lever Actuator Length -.Not Applicable
ManufacturerHoneywell Sensing and P.
Manufacturer Product Nu.BA-2RB-A2
Manufacturer Standard L.38 Weeks
Max. Pretravel0.05 in
Mechanical Life20,000,000 Cycles
MfrHoneywell Sensing and P.
Mounting Dimension1.00" Centers
Mounting Dimension - Sn.1.00 in Centers
Mounting TypePanel Mount
MpnBA-2RB-A2
Number of Circuits - Sn.1
Operating Force397 ~ 624gf, 14.0 to 22.
Operating Position1.030" (26.2mm)
Operating Temp. Range-67 Degrees to 185 Deg.
Operating Temperature-55?C ~ 85?C
Over Travel0.094 in
Overtravel0.094" (2.4mm)
PackageBulk
Pretravel0.050" (1.27mm)
Product StatusActive
Release Force10.00 oz, 10 oz, 283gf
SeriesBA
SKUZO-G3026213
Snap Action Switch TypeIndustrial Snap Action .
StandardsCE, CSA, ENEC, UL, UL, .
SubCategoryElectrical
Switch FunctionOn-Mom
Termination StyleScrew Terminal
Type of ActuatorOvertravel Plunger
UPC78454912505
Voltage Rating - AC125 V
Voltage Rating - DC125 V
Watertight - Snap Actio.No
Width - Snap Action Swi.1.94 in

All Prices

Img Seller Supplier SKU Min Price MOQ In Stock Lead Time Brand Weight Preferred Tier
Onlinecomponents.comBA-2RB-A213.1272389Honeywell13.127 @ 2
thumbzoomCarlton Bates Company7845491250514.141296HONEYWELL14.14 @ 1
thumbzoomsustainablesupply.comC121012214.681In StockHoneywell0.0714.68 @ 1
thumbzoomZoroG302621317.591158Honeywell Micro Switch0.0717.59 @ 1
AmazonTPB00DK872RS18.121In Stock3Honeywell Micro Switch18.12 @ 1
alliedcontrols.comBA-2RB-A218.431In StockHoneywell18.43 @ 1
thumbzoomDigi-Key124857919.1717200In StockHoneywell Sensing and Productivity Solutions19.1717 @ 200
grainger.caWWG6DXA519.662084541In StockHONEYWELL MICRO SWITCH0.0719.66208454 @ 1
thumbzoomNewark23F400320.36200In StockHONEYWELL20.36 @ 200
RS Delivers842-645022.261In StockHoneywell22.26 @ 1
thumbzoomgalesburgelectric.comBA-2RB-A224.551In StockHoneywell24.55 @ 1
thumbzoomsimsupply.comZO-G302621326.79197Honeywell Micro Switch26.79 @ 1
thumbzoomRadwellBA-2RB-A230.018HONEYWELL MICROSWITCH30.0 @ 1
thumbzoomRaptor SuppliesAE8LMK41.6324611In StockHONEYWELL41.632461 @ 1
thumbzoomkempstoncontrols.co.ukBA-2RB-A24956.56461In StockHoneywell4956.5646 @ 1
