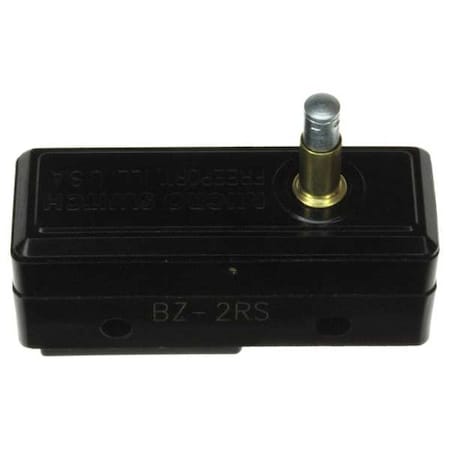

Honeywell Micro Switch Bz-2Rs-A2 Microswitch Bz2Rsa2

Honeywell Micro Switch Bz-2Rs-A2 Microswitch Bz2Rsa2zoom

Attributes

Key Value
AC Contact Rating - Sna.15 A @ 480 V, 15A @ 480.
ActuatorPlunger, Pin
Actuator Length1.94"
Actuator TypeOvertravel Plunger, Plu.
Actuator Type - Snap Ac.Overtravel, Plunger, Ov.
Alternate Part No.785-BZ-2RS-A2
Base MaterialGeneral Purpose Phenolic
Base Product NumberBZ-2
Basic Actuator Type - S.Plunger
BrandHoneywell Micro Switch,.
Casing MaterialGeneral Purpose Phenolic
CategorySwitches
CircuitSPDT
Contact FormSPDT
Contact Form- SwitchesSPDT
Contact MaterialSilver
Current Rating15 A, 20 A
Current Rating (Amps)15A (AC), 500mA (DC)
Current Stock97
DC Contact Rating - Sna.15 A @ 240 V
Depth0.069"
Depth - Snap Action Swi.0.07 in, 0.07"
DescriptionSWITCH SNAP ACTION SPDT.
Detailed DescriptionSwitch SPDT Chassis Mou.
Differential Travel0.0004 to 0.0020", 0.00.
Digi-Key Part Number480-2430-ND
Electrical Connection -.Screw
Electrical Life-
Family NameMICRO SWITCH B Series P.
Family SeriesHoneywell-Microswitch M.
FeaturesSteel Plunger
Gross Weight0 lbs
Head TypePlunger
Height0.95"
Height - Snap Action Sw.0.95", 0.95 in
Housing MaterialPhenolic
Ingress Protection-
International ShippingNo
ItemIndustrial Snap Action .
Item NumberBZ-2RS-A2
Lead TimeExpected to ship in 1-2.
Length1.94"
Lever Actuator Length -.Not Applicable
ManufacturerHoneywell-Microswitch, .
Manufacturer Part No.BZ-2RS-A2
Manufacturer Part NumberBZ-2RS-A2
Manufacturer Product Nu.BZ-2RS-A2
Manufacturer Standard L.38 Weeks
Max. Pretravel0.015"
Mechanical Life20,000,000 Cycles
MfrHoneywell Sensing and P.
Mounting Dimension1.00" Centers
Mounting Dimension - Sn.1.00" Centers, 1.00 in .
Mounting Hole Size0.14 in
Mounting TypeChassis Mount, Surface .
MpnBZ-2RS-A2
Net Weight0 lbs
Number of Circuits - Sn.1
Operating Force9.0 to 13.0 oz., 255 ~ .
Operating Position1.110" (28.2mm)
Operating Temp. Range-67 Degrees to 185 Deg.
Operating Temperature-55?C ~ 85?C
Over Travel0.06 in, 0.06"
Overtravel0.060" (1.5mm)
PackageBulk
Pretravel0.015" (0.4mm)
Product CategoryBasic / Snap Action Swi.
Product StatusActive
Release Force4.00 oz., 113gf, 4 oz
SeriesBZ/BA/BM/BE/6AS Series,.
SKUZO-G1150466
Snap Action Switch TypeIndustrial Snap Action .
StandardsUL, CSA, CE, DEMKO, UL .
SubCategoryElectrical
Switch FunctionON - (OFF), OFF - (ON),.
Temperature Rating204 C
Terminal TypeScrew
TerminationScrew
Termination StyleScrew, Screw Terminal
TradenameMicroswitch
TypeLarge
Voltage Rating125/250/480VAC, 125 V
Voltage Rating - AC125 V
Voltage Rating - DC125 V
Voltage Rating AC480 V
Voltage Rating DC250 V
Watertight - Snap Actio.No
Width - Snap Action Swi.1.94 in, 1.94"

All Prices

Img Seller Supplier SKU Min Price MOQ In Stock Lead Time Brand Weight Preferred Tier
thumbzoomsustainablesupply.comC121013416.241In StockHoneywell0.116.24 @ 1
Onlinecomponents.comBZ-2RS-A217.5442771Honeywell17.544 @ 2
thumbzoomCarlton Bates Company7845491700518.881In StockHONEYWELL18.88 @ 1
alliedcontrols.comBZ-2RS-A220.051In StockHoneywell20.05 @ 1
grainger.caWWG6DXC821.309664161In StockHONEYWELL MICRO SWITCH0.121.30966416 @ 1
thumbzoomZoroG115046624.491151Honeywell Micro Switch0.124.49 @ 1
RS Delivers842-872124.54193Honeywell24.54 @ 1
thumbzoomTMEBZ-2RS-A226.141128HONEYWELL26.14 @ 1
thumbzoomRadwellBZ-2RS-A230.014HONEYWELL MICROSWITCH30.0 @ 1
thumbzoomswatee.comBZ-2RS-A230.5134Honeywell30.5 @ 1
thumbzoomNewark23F421232.07128HONEYWELL32.07 @ 1
thumbzoomDigi-Key124858134.861239Honeywell Sensing and Productivity Solutions34.86 @ 1
thumbzoomsimsupply.comZO-G115046635.31197Honeywell Micro Switch35.31 @ 1
thumbzoomRaptor SuppliesAE8LMZ45.01803151In StockHONEYWELL45.0180315 @ 1
AmazonTPB00E2XTOSA51.191In Stock2HONEYWELL MICRO SWITCH51.19 @ 1
us.rs-online.com7011912364.021465Honeywell64.02 @ 1
thumbzoomGalcoBZ-2RS-A2-MCRO155.01In StockHoneywell-Microswitch155.0 @ 1
standardelectricsupply.com267494292.01In StockHoneywell4292.0 @ 1
thumbzoomkempstoncontrols.co.ukBZ-2RS-A25466.07621In StockHoneywell5466.0762 @ 1
