Hubbell D571084-HBL460MI7W

B074H9MVG3

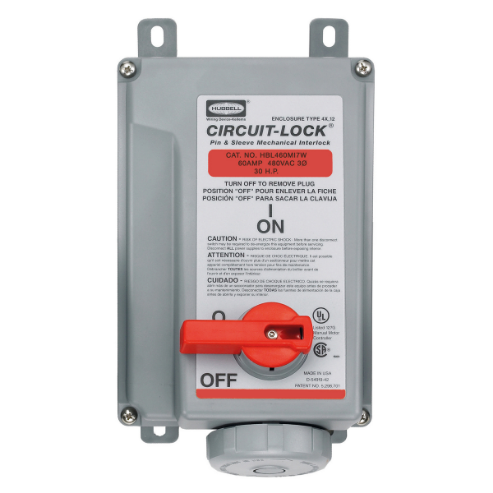

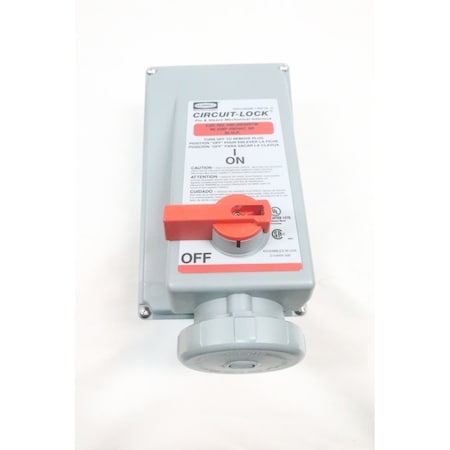

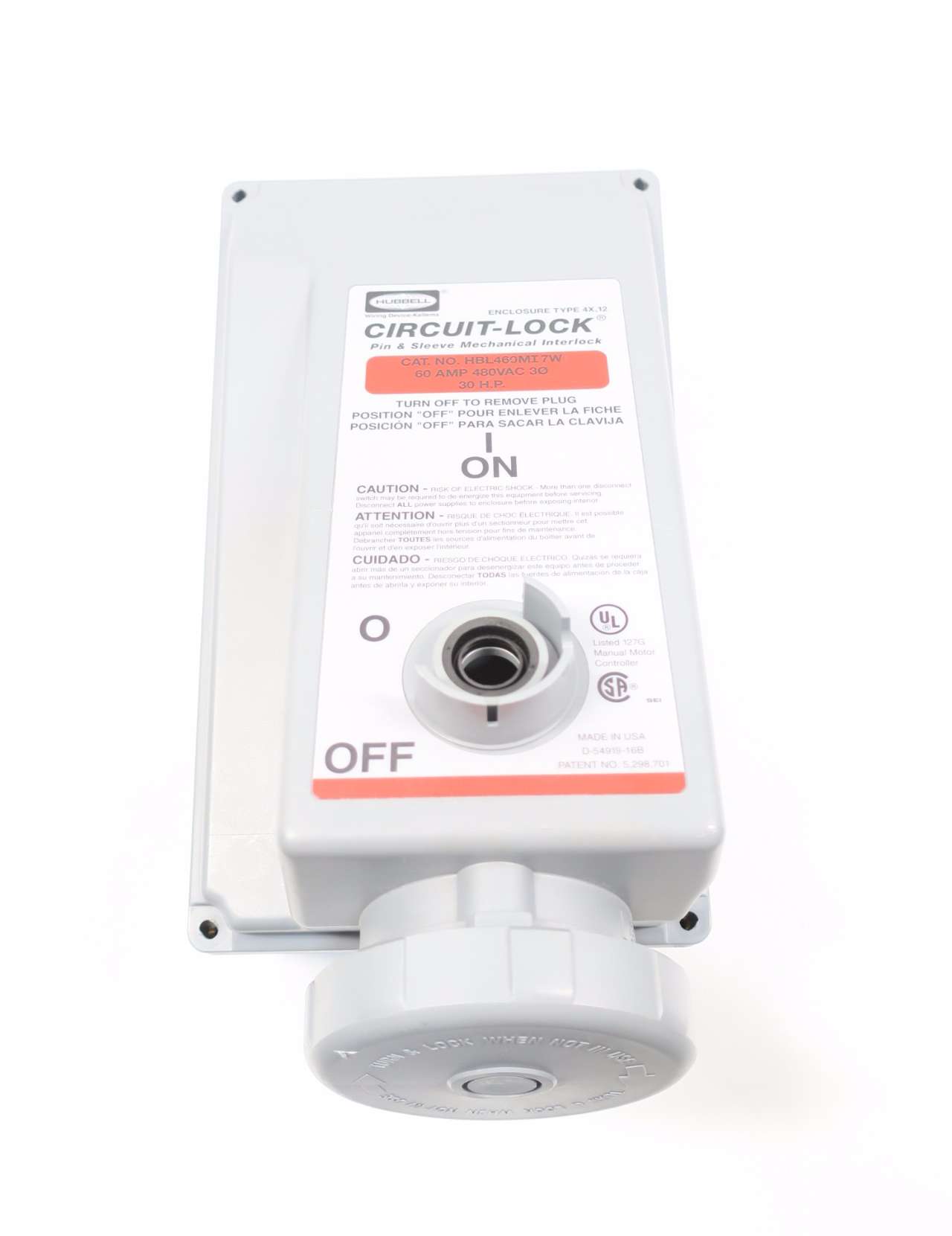

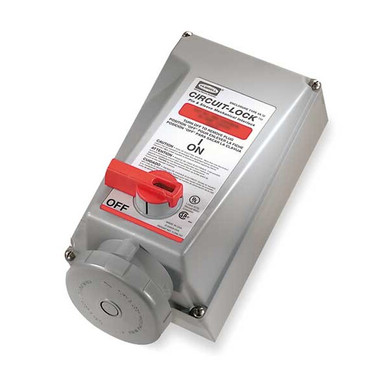

HUBBELL HBL460MI7W 480V-AC 60A 4W 3P PIN & Sleeve Mechanical Interlock D571084

HUBBELL HBL460MI7W 480V-AC 60A 4W 3P PIN & Sleeve Mechanical Interlock D571084zoom

Attributes

Key Value
Amperage60 A
Amperage Rating60A
ApplicationHigh Ampacity Watertigh.
AWG Range#8 AWG to #2 AWG
BrandHubbell
Circuit BreakerNo
Circuit Breaker Amp Rat.60 A
Circuit Breaker TypeNot Applicable
ColorRed
Color FamilyRed
Compatible Plug Grainge.5Z917
Compatible Plug Manufac.5Z917
ConnectivityPressure Terminal Screws
Country of OriginUS - United States
Current / amperage rati.60 A
Current Rating60 A
Current rating60 A
Current Stock9
Display TypeStandard Sized Product
ECCNEAR99
Electrical Connection T.Pin and Sleeve
Environmental conditionsWatertight
For LocationIndoor, Outdoor
Fuse ProtectionNon-Fused
Fuse TypeNot Applicable
GroundingGrounded
Horsepower Rating30 hp
Housing ColourRed
Housing MaterialThermoplastic
Includes4
Includes Mounting Hardw.Yes
Industry Standard(s)UL Listed
International ShippingNo
IP RatingIP67
ItemWatertight Mechanical I.
Lead TimeExpected to ship in 1-2.
Locking HandleYes
MaterialThermoplastic
Material - mounting har.Screw Mounting
Maximum Operating Tempe.75 Degrees C
Maximum Wire Size2 AWG
Minimum Operating Tempe.-40 Degrees C
Minimum Wire Size8 AWG
MpnHBL460MI7W
NEMA Enclosure RatingNot Rated
Nema RatingNon-NEMA
No. of Poles3
No. of Wires4
Number of poles3-Pole
Number of Poles3
Number of wires4-Wire
Number of Wires4
Overall Height10.12 in
Overall Width7.75 in
PhaseThree, Three phase
Rated Voltage480V AC
Resistance PropertiesWatertight
Reverse ServiceNo
SKUZO-G2318836
StandardUL Listed
StandardsUL
StyleStandard Service
SubCategoryElectrical
TypeMechanical Interlock
UL 94 Flammability Rati.5VA, V-0
UNSPSC39121406
UPC783585406053
Viewing WindowNo
Voltage3 Phase 480 VAC
Voltage Rating480V AC
Voltage rating descript.3 Phase 480 VAC
Wattage28800
Wire size#8 AWG to #2 AWG

All Prices

Img Seller Supplier SKU Min Price MOQ In Stock Lead Time Brand Weight Preferred Tier
thumbzoomNRI IndustrialD571084173.381In StockHUBBELL173.38 @ 1
Onlinecomponents.comHBL460MI7W1101.321In StockHubbell1101.32 @ 1
thumbzoomKelly HayesHBL460MI7W1531.18119Hubbell Wiring Device-Kellems1531.18 @ 1
thumbzoomMRO Supply10229701712.51In StockHubbell Wiring1712.5 @ 1
AmazonTPB0078RVWLY1850.881In Stock10Hubbell Wiring Device-Kellems1850.88 @ 1
grainger.caHBLHBL460MI7W1900.443172341In StockHUBBELL WIRING DEVICE-KELLEMS7.51900.44317234 @ 1
thumbzoomsustainablesupply.comC28904741907.281In StockHubbell Kellems7.51907.28 @ 1
thumbzoomZoroG0043987801929.491In StockHubbell1929.49 @ 1
thumbzoomgordonelectricsupply.comHBL460MI7W1947.351In StockHUBBELL1947.35 @ 1
standardelectricsupply.com1945671957.141In StockHubbell1957.14 @ 1
thumbzoomUnited Electric52112038.5614WIRING DEVICE-KELLEMS2038.56 @ 1
thumbzoomsimsupply.comZO-G23188362127.7319Hubbell2127.73 @ 1
cbtcompany.comHBL460MI7W2140.211In StockHubbell Wiring Device-Kellems2140.21 @ 1
thumbzoomNational Supply Network540323132193.461In StockHubbell Wiring Device-Kellems2193.46 @ 1
steinerelectric.com270142253.121In StockHubbell Wiring Device-Kellems2253.12 @ 1
Graybar921425972448.3761In StockHubbell Wiring Device - Kellems2448.376 @ 1
thumbzoombscsource.comHBL460MI7W2476.791In StockHubbell Wiring Device-Kellems2476.79 @ 1
us.rs-online.com715285192577.5912Hubbell Wiring Device-Kellems2577.59 @ 1
thumbzoomNewark14C53912603.01In StockHUBBELL WIRING DEVICES2603.0 @ 1
kirbyrisk.com4901242838.7912Hubbell2838.79 @ 1
thumbzoomRaptor SuppliesAE7ZGT3325.24477351In StockHUBBELL WIRING DEVICE-KELLEMS3325.2447735 @ 1
