- mpn321930
- brandname: JET
- manufacturername: JET

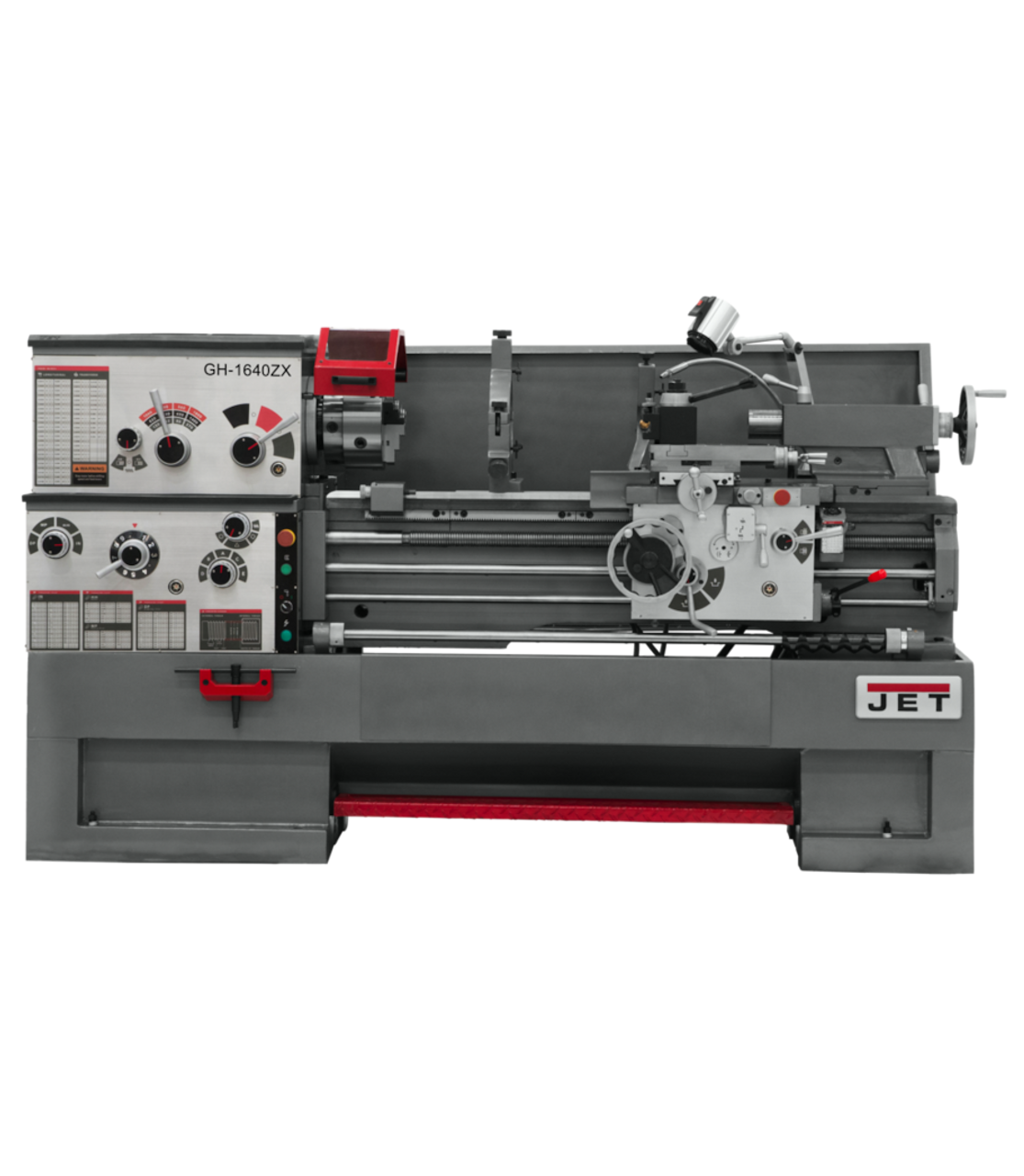

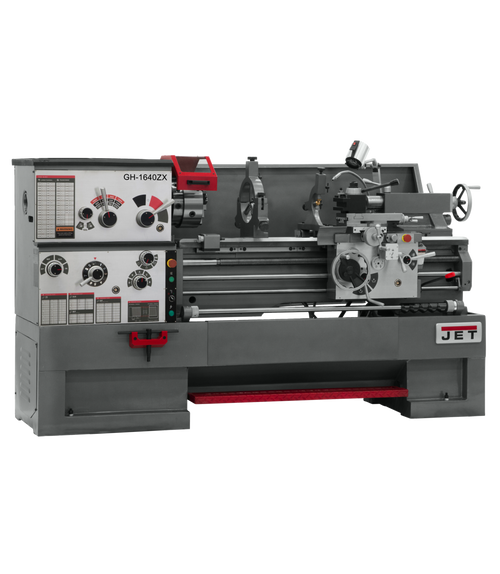

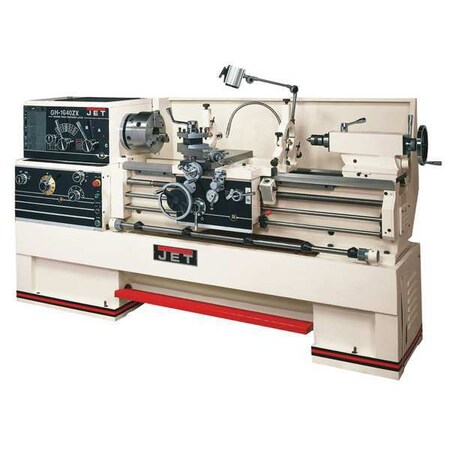

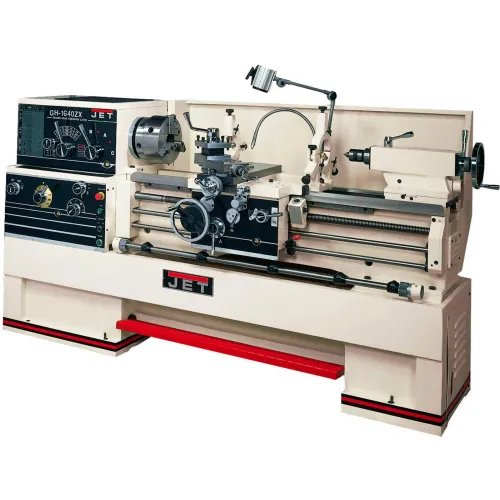

GH-1640ZX16 Swing 40 Centers
- Brand: Jet Equipment
- PartNumber: 321930
- PackageQuantity: 1
- Binding: Misc.
- Manufacturer: Jet
- Label: Jet
Attributes
| Key | Value |
|---|
| Bed Width | 8 in |
| Carriage Travel (In.) | 36-9/16 </td, 35 |
| Compound Slide Travel (. | 5-1/8 </td |
| Compound Travel (In.) | 5-1/8 |
| Condition | New |
| Cross Feed Rates | 122 |
| Cross Slide Travel (In.) | 9 </td |
| Distance Between Center. | 40 </td, 40 |
| Drive | Geared Head </td |
| Features | 3-1/8 in Bore Spindle i. |
| Follow Rest Capacity (I. | 1/2 - 3-1/2 </td |
| Gap Length | 12 in |
| Gap Length (In.) | 12 |
| Item | Lathe |
| Length of Gap (In.) | 12 </td |
| Longitudinal Feed Rates | 122 |
| Manufacturer | Jet |
| Max Tool Size (In.) | 1 x 1 </td |
| Motor (HP) | 7-1/2 HP, 230/460V, 3Ph. |
| Motor HP | 7-1/2 |
| Number of Inch Threads | 61 </td |
| Number of Longitudinal . | 122 </td |
| Number of Metric Threads | 24 </td |
| Number of Spindle Speeds | 12 </td, 12 |
| Number of Threads (In.) | 61 |
| Overall Dimensions (L x. | 96 x 44 x 66 </td |
| Overall Height | 97 in |
| Overall Length | 97 in |
| Overall Width | 45 in |
| Phase | Three |
| Prewired (V.) | 230 </td |
| Range of Cross Feeds (I. | .0006 - .0365 </td |
| Range of Inch Threads (. | 1-5/8 - 72 </td |
| Range of Longitudinal F. | .0015 - .0913 </td |
| Range of Metric Threads | .05 - 20 </td |
| Range of Spindle Speeds. | 25 - 1,800 </td |
| Size | 16 x 40 </td |
| SKU | 321930 |
| Spindle Bore (In.) | 3-1/8, 3-1/8 </td |
| Spindle Mount | D1-8 </td |
| Spindle Taper | MT-7 |
| Spindle Taper with Slee. | MT-7 (MT-5) </td |
| Steady Rest Capacity (I. | 3/8 - 7 </td |
| Style (Type) | Engine - Large Spindle . |
| Swing In Gap (In.) | 25-7/8 |
| Swing Over Bed (In.) | 16 </td, 16 |
| Swing Over Cross Slide . | 10, 10 </td |
| Swing Through Gap (In.) | 25-1/2 </td |
| Tailstock Spindle Trave. | 5 </td |
| Taper in Tailstock Spin. | MT-4 </td |
| Thread Range (In.) | 1-5/8 to 72 |
| Thread Range (mm) | .05 to 20 |
| Weight (Lbs.) | 5,475 </td |
| Width of Bed (In.) | 13-1/8 </td |
All Prices
| Img | Seller | Supplier SKU | Min Price | MOQ | In Stock | Lead Time | Brand | Weight | Preferred Tier |
|---|
| internationaltool.com | JET-321930 | 26419.0 | 1 | In Stock | | Jet | | 26419.0 @ 1 |
 | Global Industrial | WBB0230872 | 26899.0 | 1 | In Stock | 24 | JET | | 26899.0 @ 1 |
 | JB Tools | JB-DS-WLT-321930 | 26899.0 | 1 | 17 | | Jet | | 26899.0 @ 1 |
| elitemetaltools.com | 2427 | 26899.0 | 1 | In Stock | | JET | | 26899.0 @ 1 |
 | penntoolco.com | 113680 | 26939.0 | 1 | In Stock | | Jet | | 26939.0 @ 1 |
 | AceTool | JET-321930 | 26939.0 | 1 | In Stock | | Jet | 5475.0 | 26939.0 @ 1 |
 | burnstools.com | 321930 | 26939.0 | 1 | In Stock | | Jet | | 26939.0 @ 1 |
| ToolUp.com | JET 321930 | 26939.0 | 1 | In Stock | | Jet | | 26939.0 @ 1 |
 | toolsplus.com | JET321930 | 26939.0 | 1 | In Stock | | JET | | 26939.0 @ 1 |
 | imsbolt.com | 321930 | 26939.0 | 1 | In Stock | | JET | | 26939.0 @ 1 |
 | Zoro | G9879493 | 27449.0 | 1 | In Stock | | Jet | 5475.0 | 27449.0 @ 1 |
 | Radwell | 321930 | 28500.0 | 1 | In Stock | | JET | | 28500.0 @ 1 |
 | bscsource.com | 321930 | 38682.09 | 1 | In Stock | | Jet | | 38682.09 @ 1 |
