Leeson 113959.00

B00EP35YSQ

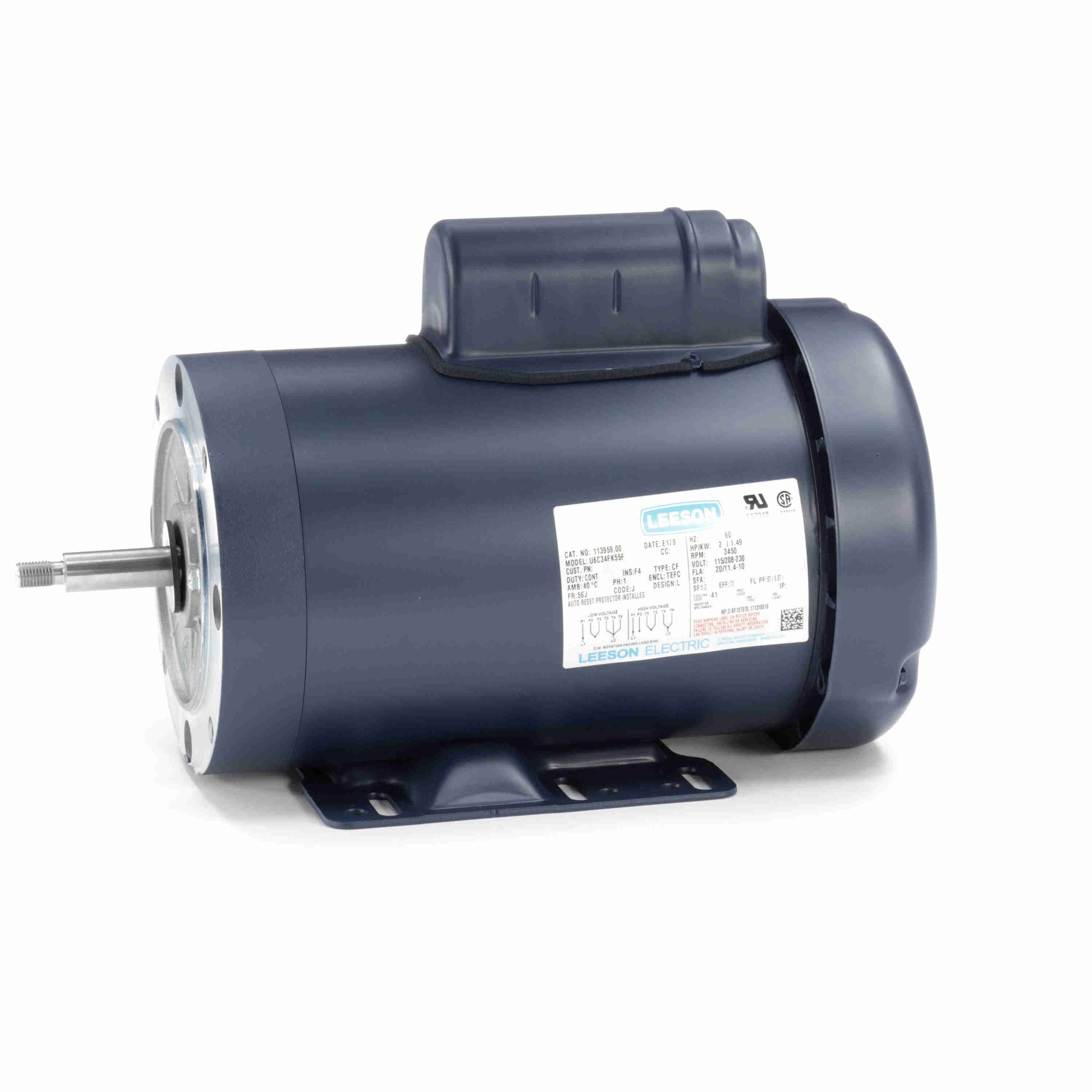

Leeson 113959.00 Jet Pump Motor, 1 Phase, 56J Frame, Rigid Mounting, 2HP, 3600 RPM, 115/208-230V Voltage, 60Hz Fequency

Leeson 113959.00 Jet Pump Motor, 1 Phase, 56J Frame, Rigid Mounting, 2HP, 3600 RPM, 115/208-230V Voltage, 60Hz Fequencyzoom

Attributes

Key Value
Amperage Rating20/11.4 to 10 A
Amps20.0/11.4-10.0
Application TypeJet Pump (JM/JP) Motors
ApprovalsCSA, UL
Bearing Type13.81, Ball
BearingsBall
CategoryElectric Motor
Class/GroupU6C34FK55
CompositionSteel
ConstructionRolled Steel
Description:2HP..3450RPM.56.TEFC.11.
Dimensions13.86 in L
Drive End Bearing Size6203
Drive End Bearing TypeBall
Drive End Flange TypeC-Face
Duty CycleContinuous
Efficiency73.0%, 73
EnclosureTEFC, Totally Enclosed .
Enclosure MaterialRolled Steel
Enclosure TypeTEFC (Totally Enclosed .
Estimated Weight43.00
Family SeriesLeeson Motors, Pump Dut.
FL Amps20/11.4-10
FL Efficiency73
Frame56J
Frame MaterialRolled Steel
Frame RemarksFOOTED
Frequency60
Frequency Rating60 Hz
Gross Weight0 lbs
Hertz60
Horsepower2 hp
HP2
Hz60
Insulation ClassClass F, F
Item ConditionFACTORY NEW
Item Number113959.00
KW1.5
ManufacturerLeeson Electric, LEESON.
Manufacturer Part Number113959.00
MaterialRolled Steel
Maximum Ambient Tempera.40? C
MFG Part #:113959.00
Model NumberU6C34FK55
Motor Shell Length8.00"
MountingRigid Base, Footless
mountingC-face w/ rigid base
Mounting TypeC-Face Footed, C-Face/F.
NEMA Frame56J
Net Weight43 lbs
Nominal Voltage208 VAC, 240 VAC
Number of Poles2
Number of Speeds1
Opp. Drive End Bearing .6203
Opp. Drive End Bearing .Ball
Overall Length13.81 ", 13.86"
Part Number113959.00
Phase1, 1 ph
Product SeriesPump Duty
Product TypePump, Capacitor Start
RotationFixed CW, CW Shaft End
RPM3450, 3600, 3400 - 3600.
Service Factor1, 1.0
Shaft Diameter0.625", 0.625, UL;CSA
Shaft Length2.44, 2.44"
Shaft Size0.63 in Dia x 2.44 in L
Ship Weight46 lbs.
Special FeaturesCapacitor Start Motors
Speed (RPM)3450
Standard Pack:Order QTY must be in mu.
Supplier:LEESON ELECTRIC CORPORA.
Thermal ProtectionAutomatic
UPC:691720013069
Voltage110-120V, 208V, 230V, 1.
Volts115/208/230, 115/208-230

All Prices

Img Seller Supplier SKU Min Price MOQ In Stock Lead Time Brand Weight Preferred Tier
thumbzoomemotorpro.com113959.00481.81In StockLeeson46.0481.8 @ 1
kscdirect.comLEE 113959.00584.141In StockLEESON ELECTRIC CORPORATION584.14 @ 1
thumbzoomMRO Supply2525766591.561In StockLeeson591.56 @ 1
thumbzoomWalker Industrial113959-00666.821In Stock10Leeson666.82 @ 1
thumbzoomDealers Electric113959.00738.711In StockLeeson46.0738.71 @ 1
thumbzoommotorsandcontrol.comLE-113959.00811.4112Leeson Electric43.0811.41 @ 1
thumbzoomGalco113959.00-LEES817.291In StockLeeson43.0817.29 @ 1
us.rs-online.com73397381826.521In StockLeeson826.52 @ 1
thumbzoompumpproducts.com113959.001100.711In StockLeeson1100.71 @ 1
thumbzoomRaptor SuppliesAJ2QMD1157.0829661In StockLEESON1157.082966 @ 1
