- mpnK2343-3
- brandname: LINCOLN ELECTRIC
- manufacturername: LINCOLN ELECTRIC

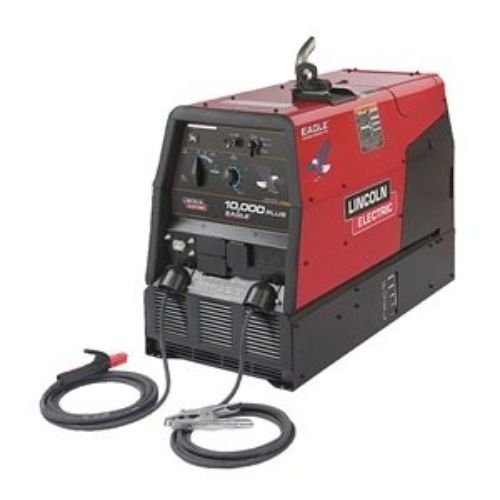

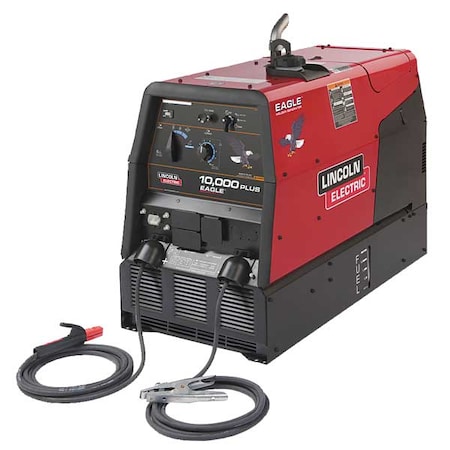

Engine Driven Welder, Eagle 10, 000 Plus
- Brand: Lincoln Electric
- PartNumber: K2343-3
- Model: K2343-3
- Color: black
- Size: 9
- PackageQuantity: 1
- Binding: Misc.
- Manufacturer: Lincoln Electric
- Label: Lincoln Electric
Attributes
| Key | Value |
|---|
| Amperage Range | 50 to 225 |
| Auto-Idle | Yes |
| Brand | <a href="category_linco. |
| brand-mfr model | LINCOLN ELECTRIC - K234. |
| Circuit Breaker | Yes |
| Circuit Breakers | Yes |
| Clamp Cable Length (ft.) | 15 |
| Color | Red |
| Continuous Auxiliary Po. | 9,000 W |
| Country of Origin (subj. | United States |
| Depth | 42 19/64 in |
| Dimensions L x W x H (i. | 42 5/16 x 21 1/2 x 29 7. |
| Duty Cycle | 40 |
| Engine | 2-cylinder, 4-cycle 23 . |
| Engine Brand | Kohler |
| Engine Displacement | 44 cu in |
| Engine Displacement (cc) | 674 |
| Engine Model | Kohler CH730 |
| Fuel Capacity (gal.) | 12 |
| Fuel Tank Capacity | 12 gal |
| Fuel Tank Capacity Range | 10 gal - 20 gal |
| Fuel Type | Gas |
| Generator Fuel Type | Gasoline |
| Generator Outlet Type | 14-50R, 5-20R |
| Generator Outlets | 20 A 120V 5-20R (4), 50. |
| Height | 29 29/32 in |
| Horsepower | 23 hp |
| Horsepower Range | 15 hp - 30 hp |
| HP | 23 hp, 23 |
| Input Current | None |
| Item | Engine-Driven Welder |
| Item# | 164593 |
| Manufacturer's Warranty | 3 year limited warranty |
| Max. Amperage Range (St. | 150 A - 300 A |
| MIG Welding Maximum Out. | 225 A |
| MIG Welding Minimum Out. | 50 A |
| MIG Welding Output @ Du. | 210 A @ 25 V, 100%, 225. |
| Model | K2343-3 |
| Oil Capacity | 2 qt |
| Open Circuit Voltage | 80 V |
| Peak Auxiliary Power | 10,500 W |
| Phase | 1 |
| Polarity | DC |
| Process | Flux-Cored Welding (FCA. |
| Process (Merch) | SMAW, GTAW, GMAW, FCAW,. |
| Product Type | Welder/generator |
| Promotion Restriction | Not eligible for promot. |
| Rated Output at Duty Cy. | 210 A @ 100%, 225 A @ 4. |
| Rated Output CC/DC | 225A @ 25V, 40%/ 210A @. |
| Rated Watts (kW) | 9,000 |
| Receptacles (qty.) | 5 |
| Series | Eagle 10,000 Plus |
| Ship Weight | 544.0 lbs |
| Sound Level | 76.4 dBA @ 23 ft |
| Start Type | Electric start, Electric |
| Stick Welding Maximum O. | 225 A |
| Stick Welding Minimum O. | 50 A |
| Stick Welding Output @ . | 210 A @ 25 V, 100%, 225. |
| Surge Watts (kW) | 10,500 |
| TIG Welding Maximum Out. | 225 A |
| TIG Welding Minimum Out. | 50 A |
| TIG Welding Output @ Du. | 210 A @ 25 V, 100%, 225. |
| Weight | 514 lb |
| Weld Thickness (in.) | Up to 5/32 in a single . |
| Weldable Metals | Steel, stainless, alumi. |
| Welder Model Type | Base Model |
| Welder Type | Base Model |
| Welding Amperage Range | Rated 225 Amps/25 Volts. |
| Welding Mode | CC |
| Width | 21 1/2 in |
All Prices
| Img | Seller | Supplier SKU | Min Price | MOQ | In Stock | Lead Time | Brand | Weight | Preferred Tier |
|---|
| Home Depot | 202339557 | 3299.0 | 1 | In Stock | | Lincoln Electric | | 3299.0 @ 1 |
| Northern Tool | 164593 | 3529.99 | 1 | In Stock | | Lincoln Electric | 544.0 | 3529.99 @ 1 |
| Summit Racing | LCN-K2343-3 | 3590.99 | 1 | In Stock | | Lincoln Electric | | 3590.99 @ 1 |
 | Tools Crave | LEW-K2343-3 | 3848.9 | 1 | In Stock | | Lincoln Electric | 535.0 | 3848.9 @ 1 |
 | tooltopia.com | LEWK23433 | 3943.99 | 1 | In Stock | | Lincoln Electric Welders | | 3943.99 @ 1 |
| AmazonTP | B003F07KXW | 4192.98 | 1 | In Stock | 4 | Lincoln Electric | | 4192.98 @ 1 |
 | freertool.com | FTS-LE01K23433 | 5414.46 | 1 | In Stock | | Lincoln Electric | | 5414.46 @ 1 |
 | weldingoutfitter.com | K2343-3 | 5669.0 | 1 | In Stock | | Lincoln Electric | | 5669.0 @ 1 |
 | sustainablesupply.com | C1762555 | 6599.09 | 1 | In Stock | | Lincoln Electric | 582.0 | 6599.09 @ 1 |
 | Zoro | G3051422 | 6785.42 | 1 | In Stock | | Lincoln Electric | 582.0 | 6785.42 @ 1 |
 | wotcotools.com | LEW-K2343-3 | 7144.23 | 1 | In Stock | | LINCOLN ELECTRIC | 535.0 | 7144.23 @ 1 |
