Schneider Electric/Magnecraft 199DX-3

mpn199DX-3
brandname: Magnecraft / Schneider Electric
manufacturername: Magnecraft / Schneider Electric

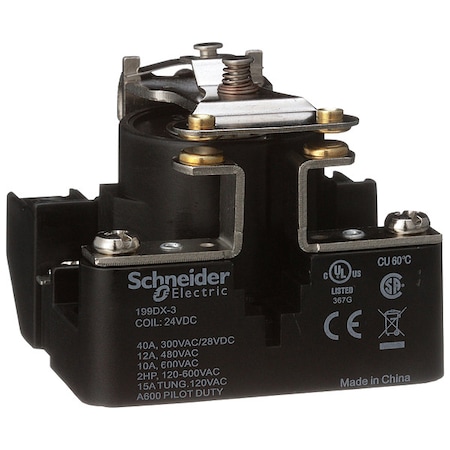

MAGNECRAFT 199DX-3 POWER RELAY, SPST-NO, 24VDC, 40A, PANEL

Brand: Schneider Electric/Magnecraft
PartNumber: 199DX-3
PackageQuantity: 1
Manufacturer: Magnecraft / Schneider Electric
Label: Magnecraft / Schneider Electric

Attributes

Key	Value
AC Contact Rating - Rel.	40A @ 300V
Alternate Part No.	528-199DX3-M
Approvals	CE, CSA, UL
Bifurcated Contact	No
Body Depth	2.49 in
Body Depth - Relay	2.43 in
Body Height	2.49 in
Body Height - Relay	2.18 in
Body Width	2.5 in
Body Width - Relay	2.5 in
Brand	Magnecraft / Schneider .
Coil Resistance	290 Ohms
Coil Termination	Screw
Coil Type	Non-Latching
Coil Voltage	24 V, 24 VDC
Coil Volts	24V DC
Contact Amp Rating (Res.	40A @ 300VAC/28VDC
Contact Current Rating	40 A
Contact Form	DPDT, SPST (1 Form X)
Contact Form - Relay	SPST-NO
Contact Material	Silver Alloy, Gold Flas.
Contact Voltage Rating	277 VAC
Contacts	1NO-DM
Control Voltage	24
Current Rating	40 A
DC Contact Rating - Rel.	40A @ 28V
Dielectric Rating	2200 V (RMS) (Coil to C.
Dimensions	2.18"H, 2.50"W, 2.43"D,.
Diode	No
Electrical Connection	Screw Terminal
Electrical Connection -.	Screw
Enclosure	Open Frame
Family Series	Schneider Relays, 199 S.
Function	General Purpose
Gross Weight	0.465 lbs
Hz - Electrical	50/60 Hz
Item - Relay	Open Power Relay
Item Number	199DX-3
Manufacturer	Schneider, Schneider El.
Manufacturer Part No.	199DX-3
Manufacturer Part Number	P994013EM
Max Current	40 A
Maximum Operating Tempe.	60 ?C
Mechanical Latch	No
Minimum Operating Tempe.	-40 ?C
Mounting	Surface
Mounting - Relay	Surface
Mounting Style	Panel
Mounting Type	Panel Mount
Net Weight	0.465 lbs
Nominal Coil Voltage	24 VDC
Number of Electrical Co.	4
Number of Pins - Relay	4
Number of Poles	1
Overall Depth	1.95 in
Overall Height - Relay	2.18 in
Part # Aliases	P994013E W199DX-3
Power Consumption	4 W
Power Consumption - Rel.	10.0 W
Primary Type	Power Relays
Product Category	General Purpose Relays
Product Header	199 Series Open Style P.
Product Series	199
Published Coil Voltage	24 VDC
Push-to-Test	No
Rating @ 220/240/277 VAC	40 A
Rating @ 24/28/30 VDC	40 A
Relay Type	Electromechanical
RoHS	Yes
Safety Guided	No
Series	199 Series
Standards	UL ; CSA ; CE, CE Certi.
Status Indicator	No
Termination	Screw Terminals, Screw
Termination Style	Screw
Voltage Rating	277 V

All Prices

Seller	Supplier SKU	Min Price	MOQ	In Stock	Brand	Weight	Preferred Tier
Onlinecomponents.com	199DX-3	24.59	1	In Stock	Magnecraft / Schneider Electric		24.59 @ 1
Zoro	G1473674	32.15	1	33	Schneider Electric	5.69	32.15 @ 1
sustainablesupply.com	C1209588	39.14	1	In Stock	Schneider Electric	0.45	39.14 @ 1
us.rs-online.com	70185530	44.28	10	In Stock	Schneider Electric/Legacy Relays		44.28 @ 10
Galco	199DX-3-MGCR	44.95	1	18	Schneider	0.465	44.95 @ 1
swatee.com	199DX-3	47.85	1	7	Schneider Electric		47.85 @ 1
Newark	47F1105	52.82	1	19	SCHNEIDER ELECTRIC/LEGACY RELAY		52.82 @ 1
